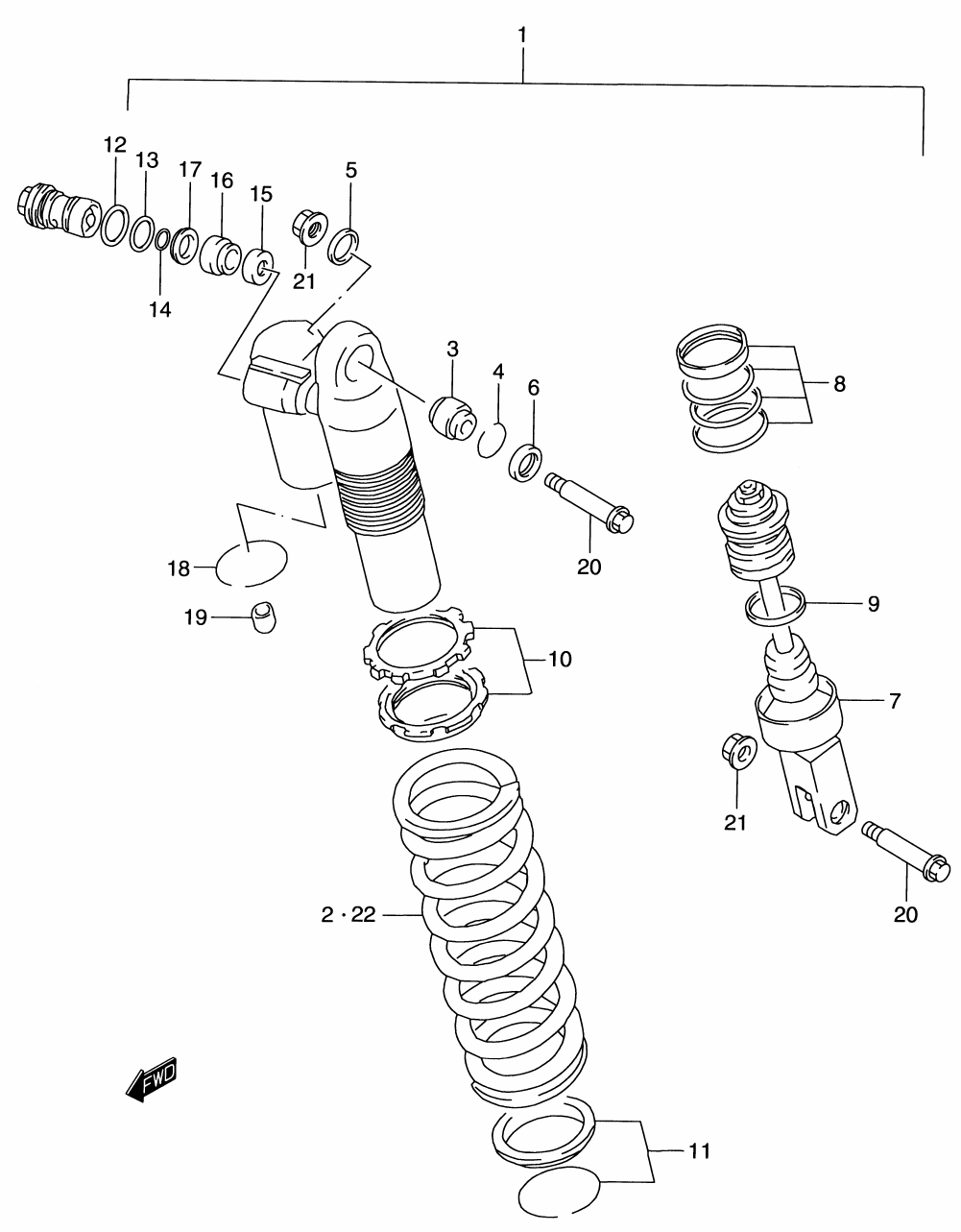

SUSPENSION - REAR SHOCK ABSORBER для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
1-162100-36EC0-37W ABSORBER ASSY, SHOCK (REAR/RED) (USA)ABSORBER ASSY, SHOCK (REAR/RED) (USA)
-
1-262100-36ED0-37W ABSORBER ASSY, SHOCK (REAR/RED) (CANADA)ABSORBER ASSY, SHOCK (REAR/RED) (CANADA)
-
262211-36E90 ...SPRING (K=4.8X5.2)...SPRING (K=4.8X5.2)
-
362175-36E00 ...BEARING (10X26X22)...BEARING (10X26X22)
-
462277-27C40 ...RING...RING
-
562226-36E00 ...SEAL, DUST (RIGHT)...SEAL, DUST (RIGHT)
-
662226-36E10 ...SEAL, DUST (LEFT)...SEAL, DUST (LEFT)
-
762120-36EB0 ...ROD, PISTON...ROD, PISTON
-
862150-36EB0 ...O RING SET...O RING SET
-
962279-36E80 ...RING, STOPPER...RING, STOPPER
-
1062190-36E50 ...ADJUSTER NUT SET...ADJUSTER NUT SET
-
1162220-36E50 ...SPRING SEAT SET...SPRING SEAT SET
-
1262131-28E00 ...O RING (OUTER)...O RING (OUTER)
-
1351174-43D00 ...O RING (INNER)...O RING (INNER)
-
1462132-36EB0 ...O RING (CENTER)...O RING (CENTER)
-
1562227-36EB0 ...COLLAR...COLLAR
-
1662252-36EB0 ...PIECE, BOTTOM...PIECE, BOTTOM
-
1762251-36EB0 ...SEAT, VALVE...SEAT, VALVE
-
1862278-36E00 ...RING, STOPPER...RING, STOPPER
-
1951294-20400 ...CAP...CAP
-
2009103-10149 BOLT (10X47.5)BOLT (10X47.5)
-
2109159-10058 NUTNUT
-
22-162211-36EB0 SPRING (SOFT,K=4.6) (OPT)SPRING (SOFT,K=4.6) (OPT)
-
22-262211-36EA0 SPRING (HARD,K=5.0X5.4) (OPT)SPRING (HARD,K=5.0X5.4) (OPT)
