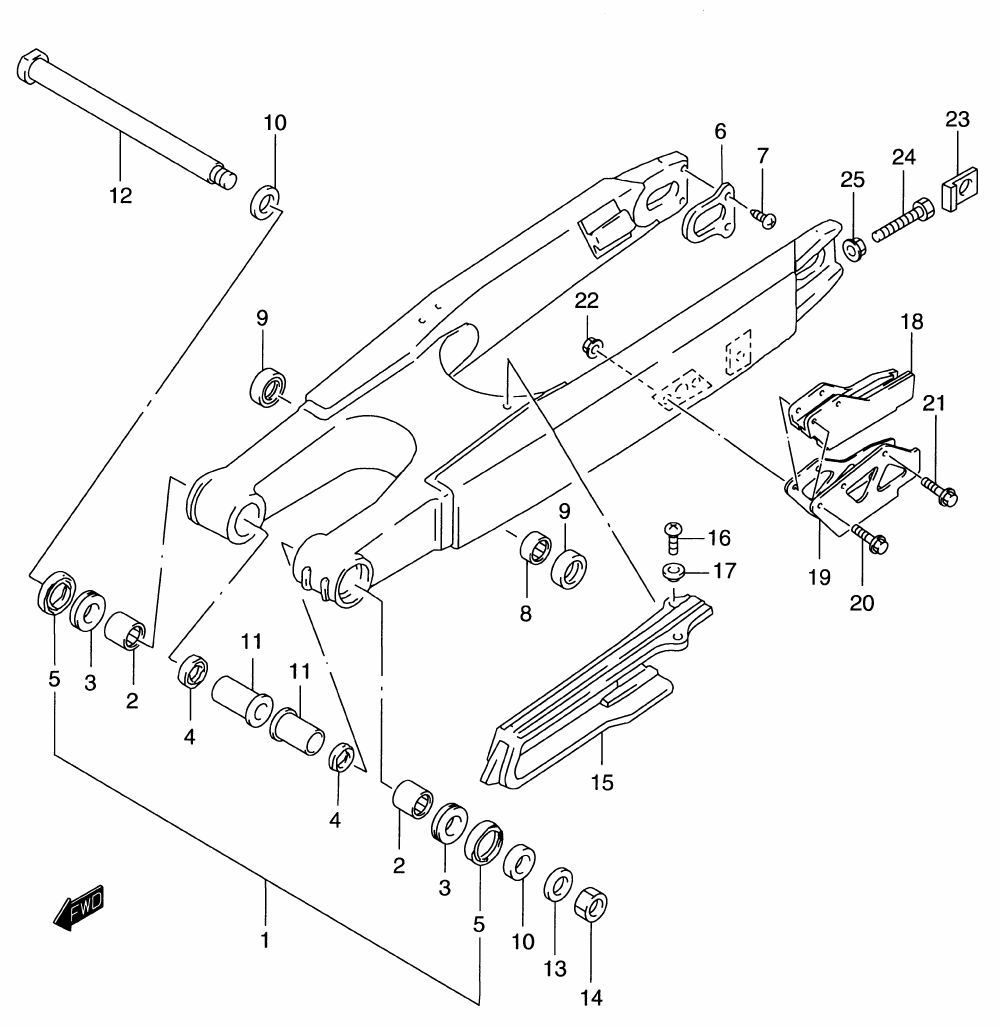

SUSPENSION - REAR ARM для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
161000-37E20 SWINGING ARM ASSY (REAR)SWINGING ARM ASSY (REAR)
-
209263-22017 ...BEARING, PIVOT (22X29X30)...BEARING, PIVOT (22X29X30)
-
309263-22064 ...BEARING (OUTER) (22X35X2)...BEARING (OUTER) (22X35X2)
-
409285-22001 ...SEAL (INNER) (22X29X4)...SEAL (INNER) (22X29X4)
-
561262-36E00 ...SEAL (OUTER) (29.2X37X4)...SEAL (OUTER) (29.2X37X4)
-
661128-37E20 ...PLATE (INNER)...PLATE (INNER)
-
702122-04103 ...SCREW (4X10)...SCREW (4X10)
-
809263-20086 ...BEARING, ROD (20X27X15)...BEARING, ROD (20X27X15)
-
962624-14500 SEAL, REAR (19X27X4)SEAL, REAR (19X27X4)
-
1061251-36E01 SPACER, PIVOT (OUTER)SPACER, PIVOT (OUTER)
-
1161252-36E00 SPACER, PIVOT (INNER)SPACER, PIVOT (INNER)
-
1261211-28C00 SHAFT, PIVOTSHAFT, PIVOT
-
1308322-01163 WASHERWASHER
-
1409159-16007 NUTNUT
-
1561273-36E40 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1602112-05123 SCREWSCREW
-
1709169-05022 WASHERWASHER
-
1861341-36E30 GUIDE, CHAINGUIDE, CHAIN
-
1961342-36E30 PLATE, GUIDE OUTERPLATE, GUIDE OUTER
-
2001547-06503 BOLT (UPPER)BOLT (UPPER)
-
2101547-06123 BOLT (REAR)BOLT (REAR)
-
2208319-31063 NUTNUT
-
2361445-36E40 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2409100-08287 BOLT (8X50)BOLT (8X50)
-
2509159-08034 NUTNUT
