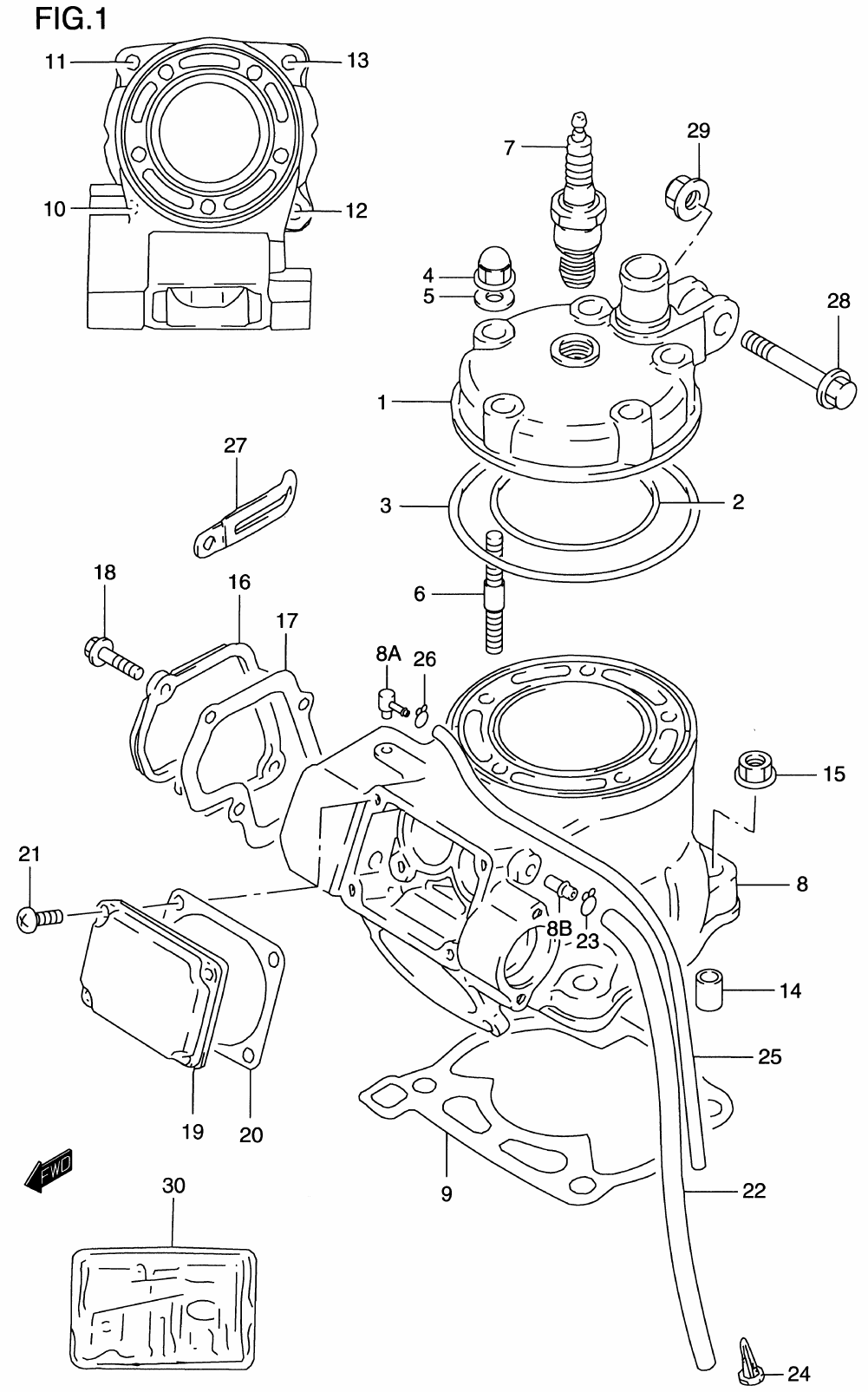

CYLINDER для Suzuki RM125Y - 2000 года выпуска

№

Артикул

Название
1-2

11111-27C34 HEAD, CYLINDER

HEAD, CYLINDER
2

11147-27C11 O RING, CYLINDER HEAD NO.1

O RING, CYLINDER HEAD NO.1
3

11148-27C11 O RING, CYLINDER HEAD NO.2

O RING, CYLINDER HEAD NO.2
4-2

09159-08049 NUT

NUT
5

09168-08021 WASHER

WASHER
6

09108-08227 STUD BOLT (L:38)

STUD BOLT (L:38)
7

09482-00509 SPARK PLUG (NGK,R6918B-8)

SPARK PLUG (NGK,R6918B-8)
8-5

11200-36830 CYLINDER

CYLINDER
8A

16910-09401 ...UNION, CYLINDER

...UNION, CYLINDER
8B

09364-10003 ...UNION, EXHAUST VALVE BREATHER

...UNION, EXHAUST VALVE BREATHER
9

11241-27C10 GASKET, CYLINDER

GASKET, CYLINDER
10

01421-08258 STUD BOLT (8X25)

STUD BOLT (8X25)
11

09108-08142 STUD BOLT (8X30)

STUD BOLT (8X30)
12

01421-08358 STUD BOLT (8X35)

STUD BOLT (8X35)
13

09108-08144 STUD BOLT (8X40)

STUD BOLT (8X40)
14

09206-11004 PIN

PIN
15

08316-10083 NUT

NUT
16

11231-27C30 COVER, CYLINDER NO.1

COVER, CYLINDER NO.1
17-2

11233-27C33 GASKET, CYLINDER COVER NO.1

GASKET, CYLINDER COVER NO.1
18

01547-06163 BOLT

BOLT
19-2

11248-36E00 COVER, CYLINDER NO.2

COVER, CYLINDER NO.2
20-2

11238-36E00 GASKET, CYLINDER COVER NO.2

GASKET, CYLINDER COVER NO.2
21-2

02162-05163 SCREW

SCREW
22

09343-09501 HOSE (9X14X220)

HOSE (9X14X220)
23

09401-12405 CLIP

CLIP
24

11271-28E20 FILTER

FILTER
25

09352-50823-600 HOSE (5X8.2X600) (L:600-390)

HOSE (5X8.2X600) (L:600-390)
26

09401-08401 CLIP

CLIP
28

09103-08083 BOLT (8X41)

BOLT (8X41)
29

09159-08067 NUT

NUT
30-3

11400-36890 GASKET SET

GASKET SET
