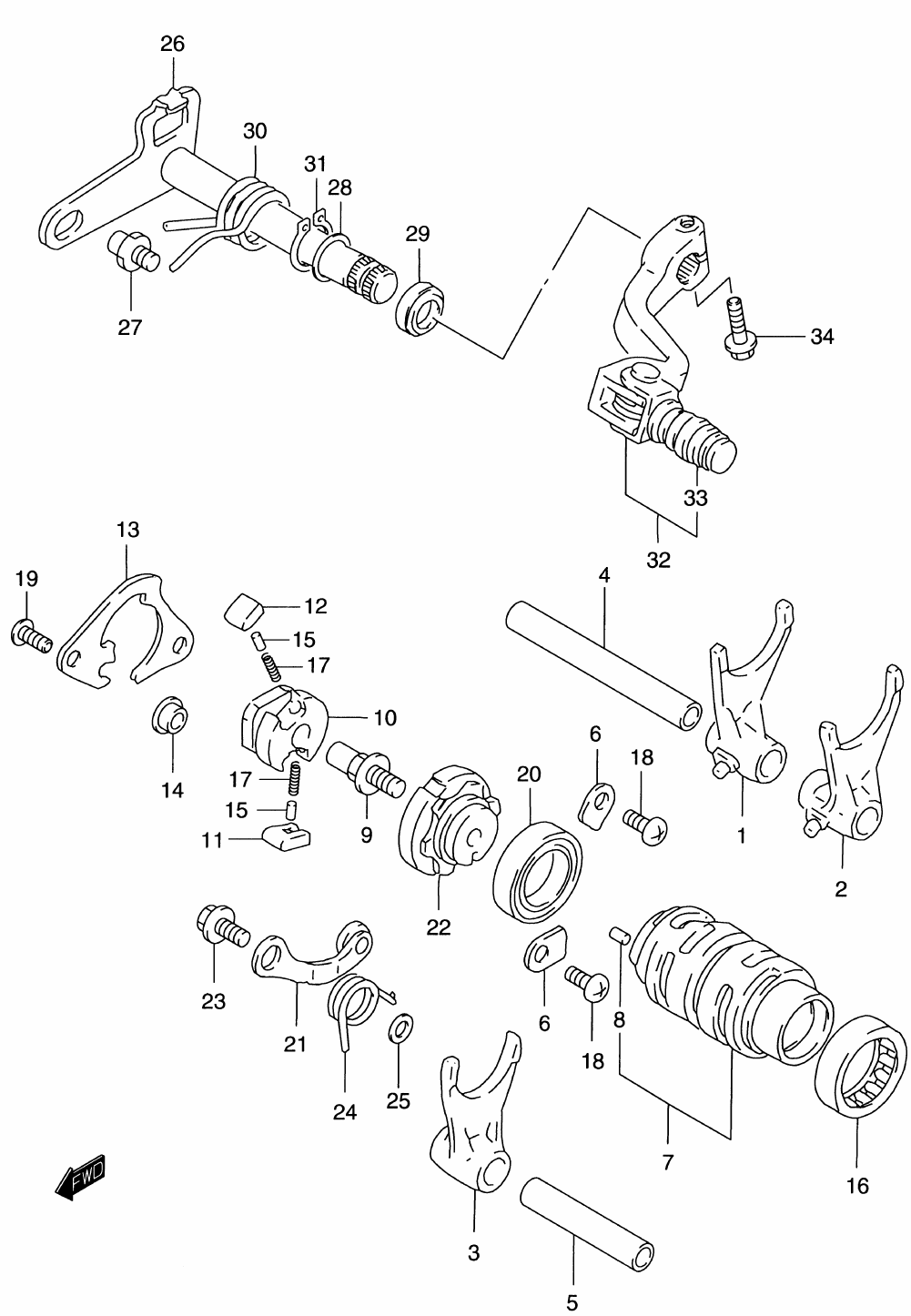

GEAR SHIFTING для Suzuki RM125Y - 2000 года выпуска`
-
№АртикулНазвание
-
125211-36E10 FORK, NO.1FORK, NO.1
-
225221-36E10 FORK, NO.2FORK, NO.2
-
325231-36E10 FORK, NO.3FORK, NO.3
-
4-225411-27C01 SHAFT, NO.1 (L:95)SHAFT, NO.1 (L:95)
-
5-225421-27C01 SHAFT, NO.2 (L:60)SHAFT, NO.2 (L:60)
-
624741-21A00 RETAINER, SHAFT CAM BEARINGRETAINER, SHAFT CAM BEARING
-
725310-36E10 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 ...PIN...PIN
-
925313-27C02 PIN, GEAR SHIFT CAMPIN, GEAR SHIFT CAM
-
1025322-36E00 SHIFTER, GEAR SHIFTSHIFTER, GEAR SHIFT
-
1125323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
1225324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1325331-37E00 LIFTER, GEAR SHIFTLIFTER, GEAR SHIFT
-
1409180-07014 ROLLERROLLER
-
1509261-05003 PIN, SHIFT PAWLPIN, SHIFT PAWL
-
1609263-33004 BEARING, SHIFT CAM (LEFT) (33X38X18)BEARING, SHIFT CAM (LEFT) (33X38X18)
-
1709440-04003 SPRINGSPRING
-
1802112-06103 SCREW, SHIFT CAM RETAINERSCREW, SHIFT CAM RETAINER
-
1902122-06123 SCREW, SHIFT PAWL LIFTERSCREW, SHIFT PAWL LIFTER
-
2008140-69050 BEARING, SHIFT CAM (RIGHT)BEARING, SHIFT CAM (RIGHT)
-
2125350-28C20 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
22-225381-36E00 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
2309111-06041 BOLTBOLT
-
2409448-18024 SPRINGSPRING
-
2508211-06121 WASHERWASHER
-
2625510-37E00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2725671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2809181-14139 WASHER (14X20X1)WASHER (14X20X1)
-
2909283-14006 SEAL, SHIFT SHAFT (14X22X6)SEAL, SHIFT SHAFT (14X22X6)
-
3009444-20005 SPRING, SHIFT RETURNSPRING, SHIFT RETURN
-
3108331-31146 CIRCLIP, GEAR SHIFTCIRCLIP, GEAR SHIFT
-
32-225600-36E20 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3325652-27C00 ...RUBBER...RUBBER
-
3401547-06253 BOLTBOLT
