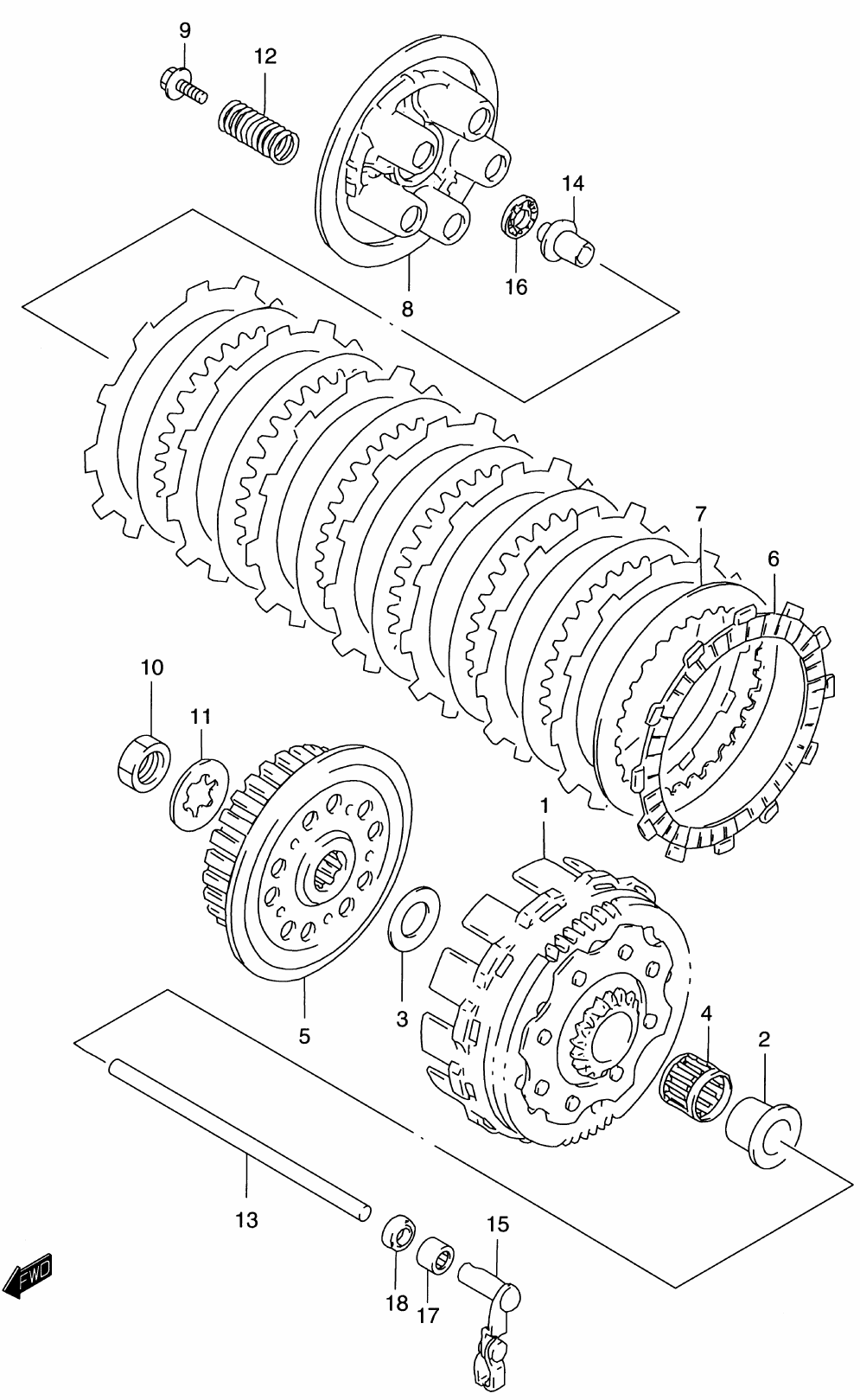

CLUTCH ASSY. для Suzuki RM125Y - 2000 года выпуска

№

Артикул

Название
1-2

21200-43D04 GEAR ASSY, PRIMARY DRIVEN (NT:64/18)

GEAR ASSY, PRIMARY DRIVEN (NT:64/18)
2

21251-43D00 SPACER

SPACER
3

08211-20363 WASHER

WASHER
4

09263-25046 BEARING (25X30X22)

BEARING (25X30X22)
5-2

21411-43D04 HUB, CLUTCH SLEEVE

HUB, CLUTCH SLEEVE
6-2

21441-36E10 PLATE, CLUTCH DRIVE (T:2.8)

PLATE, CLUTCH DRIVE (T:2.8)
7

21451-36E00 PLATE, CLUTCH DRIVEN (T:1.4)

PLATE, CLUTCH DRIVEN (T:1.4)
8

21462-43D01 DISC, CLUTCH PRESSURE

DISC, CLUTCH PRESSURE
9

09116-05019 BOLT (5X18)

BOLT (5X18)
10

09140-20001 NUT

NUT
11

09167-20006 WASHER

WASHER
12-2

09440-18030 SPRING

SPRING
13

23111-36E10 ROD, CLUTCH PUSH

ROD, CLUTCH PUSH
14

23121-37E01 PIECE, CLUTCH PUSH

PIECE, CLUTCH PUSH
15

23200-36E10 CAMSHAFT, CLUTCH RELEASE

CAMSHAFT, CLUTCH RELEASE
16

09263-10002 BEARING (10.1X22X2.8)

BEARING (10.1X22X2.8)
17

09263-10007 BEARING (10X14X15)

BEARING (10X14X15)
18

09285-10004 SEAL (10X17X5.0)

SEAL (10X17X5.0)
