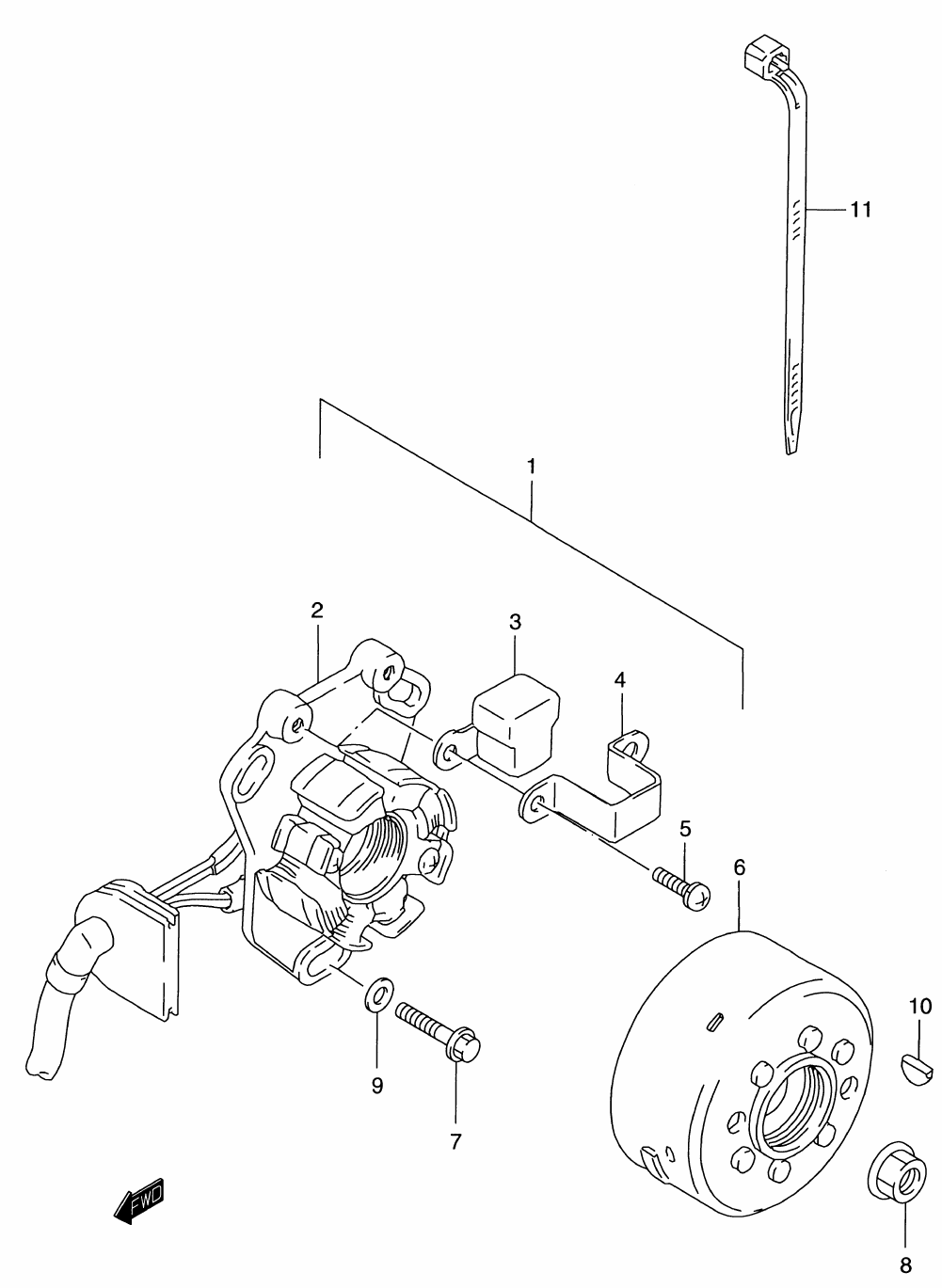

MAGNETO для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
1-332100-36E30 MANGETO ASSYMANGETO ASSY
-
2-332101-36E30 ...STATOR ASSY...STATOR ASSY
-
332150-05D00 ......COIL, PICK UP......COIL, PICK UP
-
432157-27C01 ......HOLDER, PICK UP COIL......HOLDER, PICK UP COIL
-
502112-75163 ......SCREW......SCREW
-
632102-36E10 ...ROTOR...ROTOR
-
701547-06203 SCREWSCREW
-
808316-10103 NUTNUT
-
908322-01063 WASHERWASHER
-
1009420-04008 KEYKEY
-
11-109407-25401 CLAMP (L:235)CLAMP (L:235)
-
11-209407-18402 CLAMP (L:165)CLAMP (L:165)
