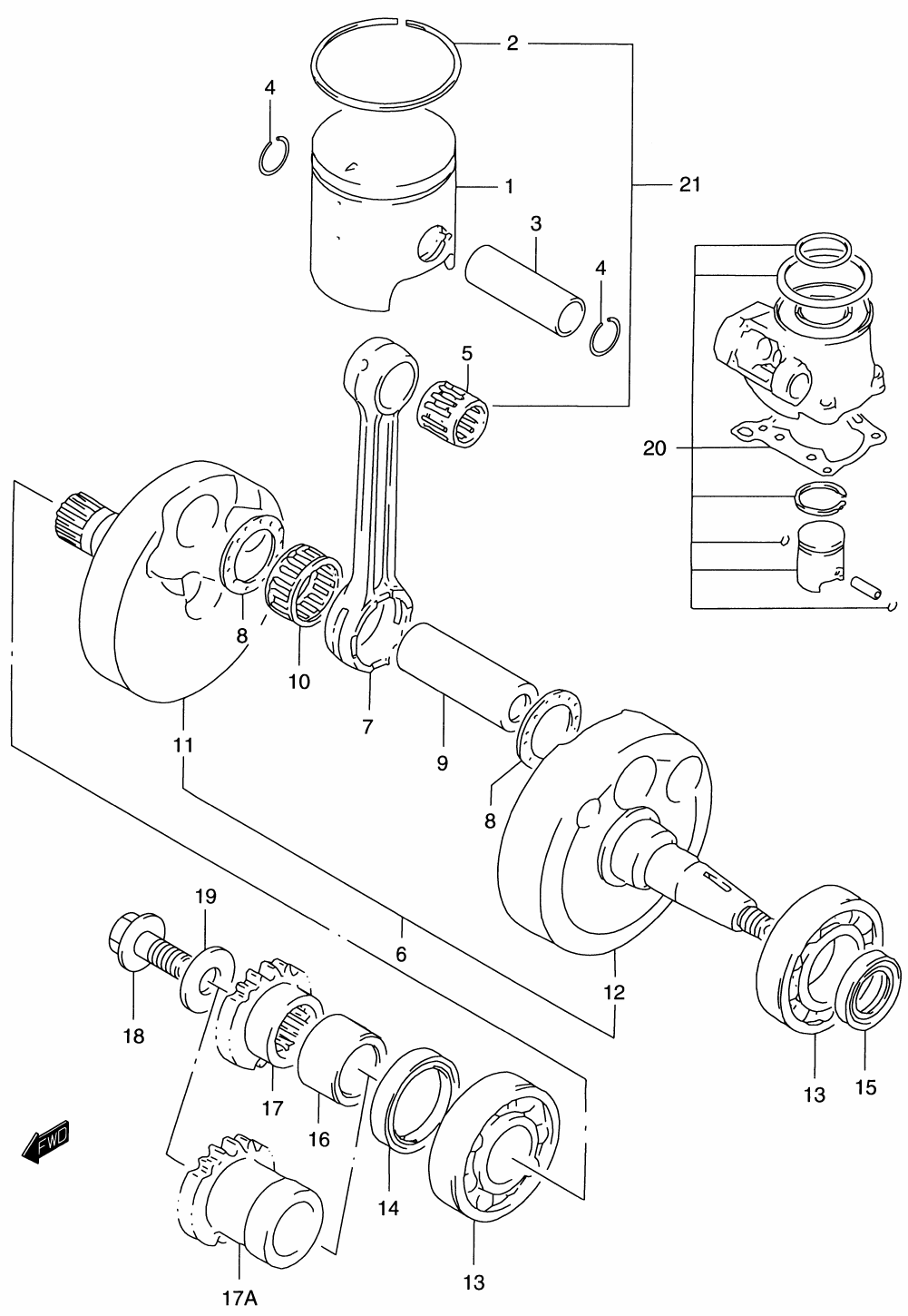

CRANKSHAFT W/ PISTONS для Suzuki RM125Y - 2000 года выпуска

№

Артикул

Название
1-3

12110-36E30-0F0 PISTON

PISTON
2

12141-36E01 RING, PISTON

RING, PISTON
3

12151-01B41 PIN, PISTON

PIN, PISTON
4

09381-15001 CIRCLIP

CIRCLIP
5

09263-15040 BEARING, PISTON PIN

BEARING, PISTON PIN
6-5

12200-36E30 CRANKSHAFT ASSY

CRANKSHAFT ASSY
7-3

12161-36E10 ...ROD, CONNECTING

...ROD, CONNECTING
8

09160-22077 ...WASHER

...WASHER
9

12211-27C00 ...PIN, CRANK

...PIN, CRANK
10

09263-22060 ...BEARING (22X28X16)

...BEARING (22X28X16)
11-4

12220-36E30 ...CRANKSHAFT (RIGHT)

...CRANKSHAFT (RIGHT)
12-4

12260-36E30 ...CRANKSHAFT (LEFT)

...CRANKSHAFT (LEFT)
13

09262-22025 BEARING (22X56X16)

BEARING (22X56X16)
14

09283-30061 OIL SEAL (RIGHT) (30X40X7)

OIL SEAL (RIGHT) (30X40X7)
15-2

09283-18007 OIL SEAL (LEFT) (18X30X6)

OIL SEAL (LEFT) (18X30X6)
17A

21111-36E10 GEAR, PRIMARY DRIVE (NT:19)

GEAR, PRIMARY DRIVE (NT:19)
18

21141-27C11 BOLT, PRIMARY DRIVE GEAR

BOLT, PRIMARY DRIVE GEAR
19

09164-11004 WASHER

WASHER
20-3

12100-36840 TOP END KIT, ENGINE (USA)

TOP END KIT, ENGINE (USA)
21-3

12100-36830 PISTON KIT (CANADA)

PISTON KIT (CANADA)
