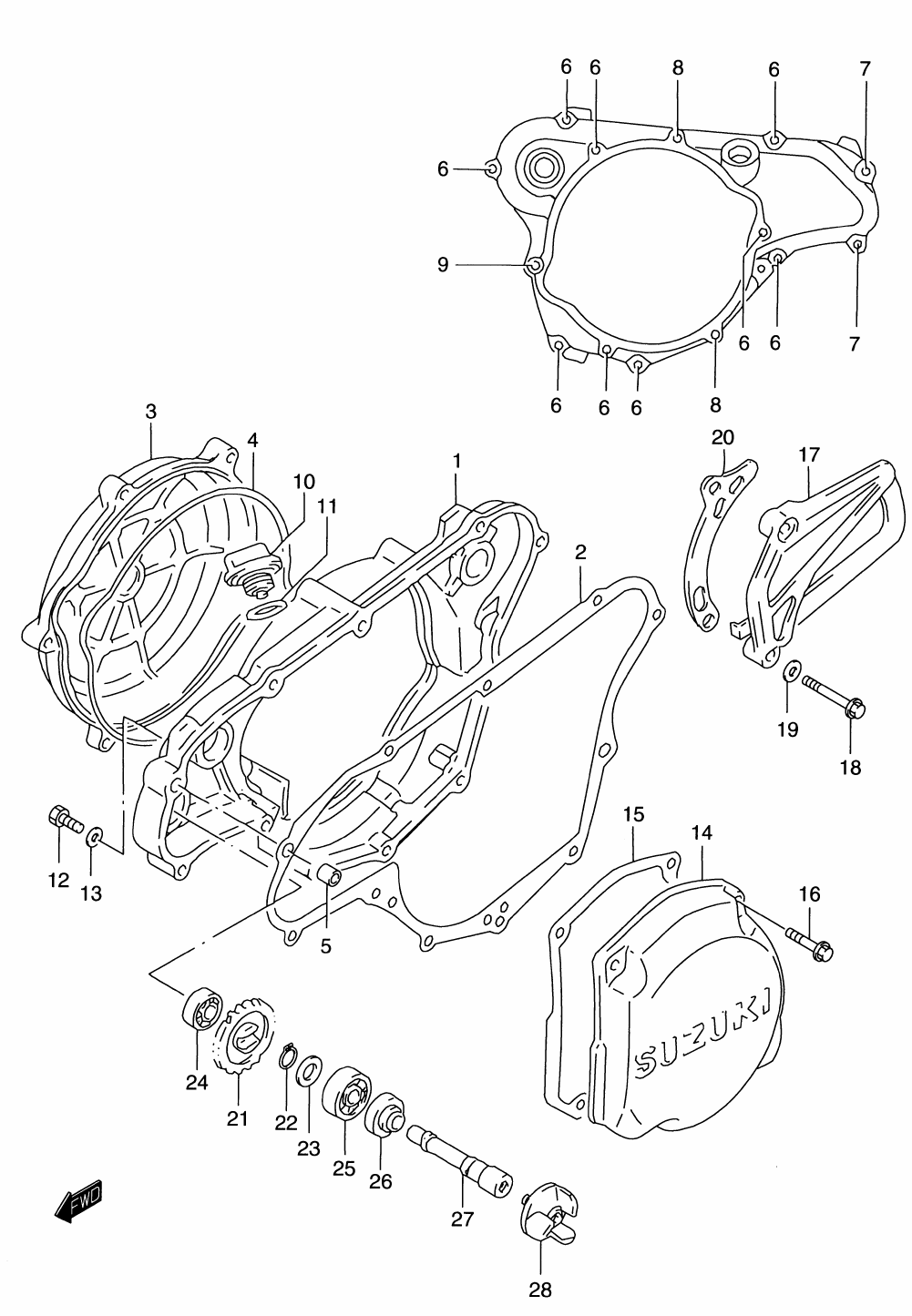

CRANKCASE COVER W/ WATER PUMP для Suzuki RM125Y - 2000 года выпуска

№

Артикул

Название
1

11341-36E10 COVER, CLUTCH

COVER, CLUTCH
2

11482-36E10 GASKET, CLUTCH COVER

GASKET, CLUTCH COVER
3

11371-36E10 COVER, CLUTCH (OUTER)

COVER, CLUTCH (OUTER)
4

11484-36E10 O RING, CLUTCH COVER (OUTER)

O RING, CLUTCH COVER (OUTER)
5

04211-09129 PIN

PIN
6

01547-06253 BOLT

BOLT
7

01547-06303 BOLT

BOLT
8

01547-06653 BOLT

BOLT
9

01547-06703 BOLT

BOLT
10

11971-12C51 PLUG, OIL FILLER

PLUG, OIL FILLER
11

09280-17003 O RING

O RING
12-2

09128-06044 SCREW, OIL LEVEL

SCREW, OIL LEVEL
13

09168-06004 GASKET

GASKET
14

11351-36E10 COVER, MAGNETO

COVER, MAGNETO
15

11483-36E10 GASKET, MAGNETO COVER

GASKET, MAGNETO COVER
16

01547-06203 BOLT

BOLT
17

11360-36E00 COVER, SPROCKET

COVER, SPROCKET
18

01547-06303 BOLT

BOLT
19

09160-06126 WASHER (6.5X14X2)

WASHER (6.5X14X2)
20

27641-37E00 PLATE, CHAIN GUIDE

PLATE, CHAIN GUIDE
21

17441-36E10 GEAR, WATER PUMP DRIVEN

GEAR, WATER PUMP DRIVEN
22

08331-31106 CIRCLIP

CIRCLIP
23

09181-10111 WASHER

WASHER
24

09262-08005 BEARING, WATER PUMP (RIGHT)

BEARING, WATER PUMP (RIGHT)
25

09262-10014 BEARING, WATER PUMP (LEFT)

BEARING, WATER PUMP (LEFT)
26

17461-28C10 OIL SEAL, WATER PUMP

OIL SEAL, WATER PUMP
27

17511-36E10 SHAFT, WATER PUMP

SHAFT, WATER PUMP
28

17491-36E10 IMPELLER, WATER PUMP

IMPELLER, WATER PUMP
