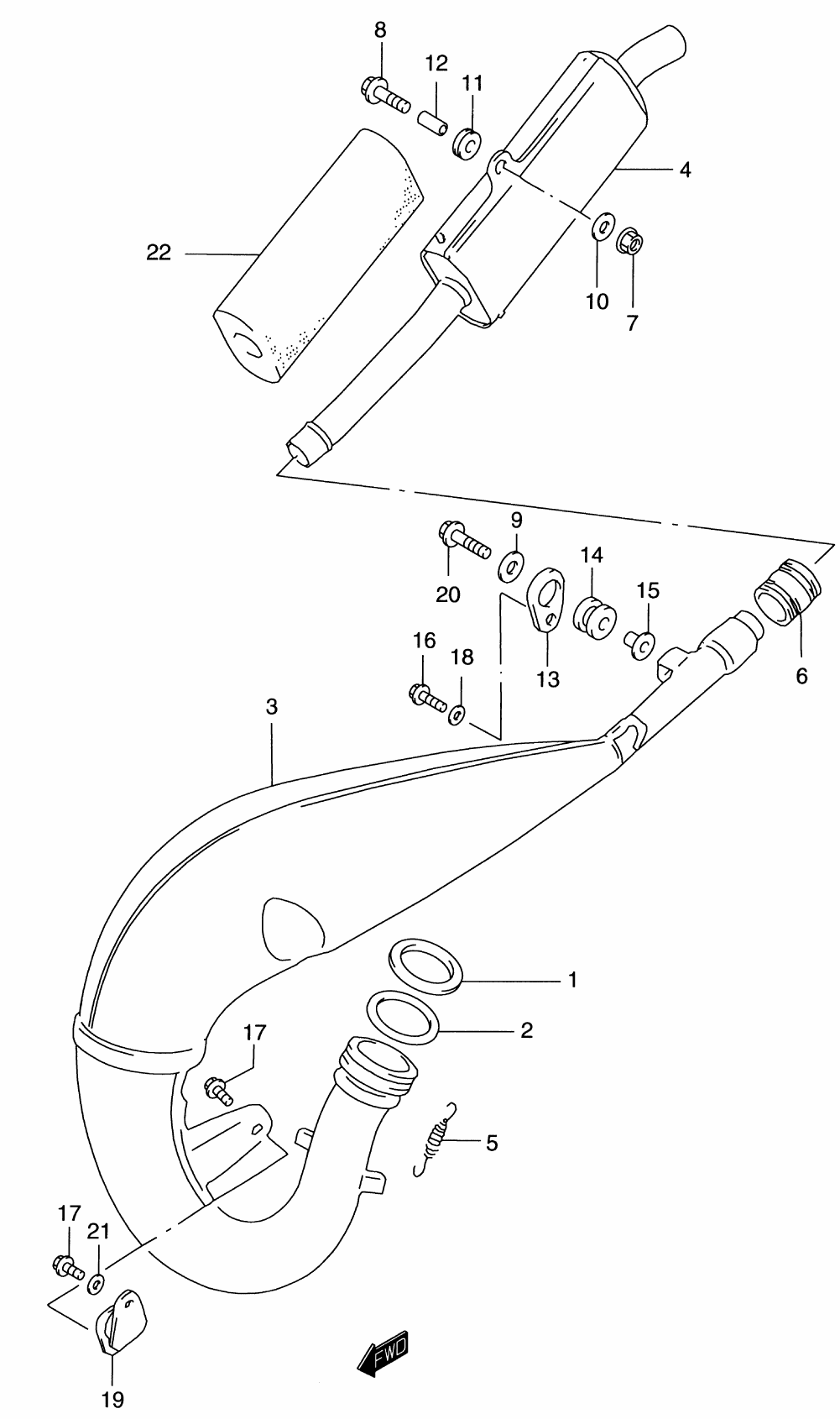

MUFFLER для Suzuki RM125Y - 2000 года выпуска
-
№АртикулНазвание
-
1-214172-36E00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2-214171-36E00 O RING, EXHAUST PIPEO RING, EXHAUST PIPE
-
3-514310-36E30 MUFFLER, 1STMUFFLER, 1ST
-
4-314330-36E10 MUFFLER, 2NDMUFFLER, 2ND
-
509443-11027 SPRINGSPRING
-
6-214771-43D11 CONNECTOR, 2ND MUFFLERCONNECTOR, 2ND MUFFLER
-
708319-31067 NUTNUT
-
801547-06303 BOLTBOLT
-
9-209160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
10-209160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
11-209320-11015 CUSHIONCUSHION
-
1209180-06120 SPACERSPACER
-
1314761-27C00 PLATE, MOUNTINGPLATE, MOUNTING
-
1414762-01B01 CUSHIONCUSHION
-
1514763-36E00 SPACERSPACER
-
1601547-06253 BOLTBOLT
-
1701547-06123 BOLTBOLT
-
18-209160-06109 WASHERWASHER
-
1914770-20400 DAMPER, MUFFLERDAMPER, MUFFLER
-
2001547-06163 BOLTBOLT
-
21-209160-06109 WASHERWASHER
-
2214351-36E00 SILENCER, MUFFLER (OPT)SILENCER, MUFFLER (OPT)
