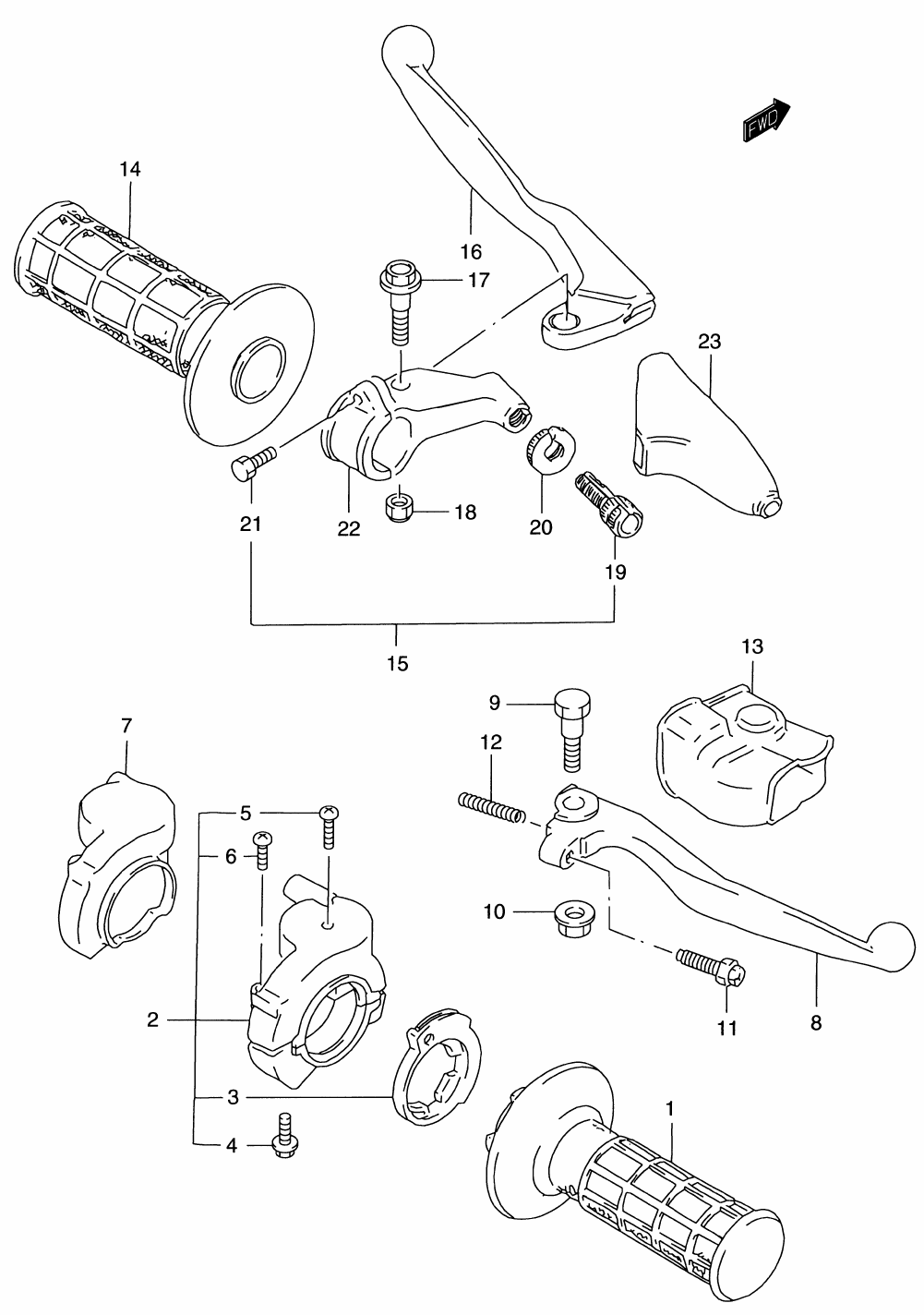

HANDLEBAR - LEVERS для Suzuki RM125Y - 2000 года выпуска`
-
№АртикулНазвание
-
1-257110-36E01 GRIP, THROTTLEGRIP, THROTTLE
-
257100-28E01 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357114-28E00 ...ROTOR...ROTOR
-
401547-06253 ...BOLT...BOLT
-
502122-04103 ...SCREW...SCREW
-
602122-04163 ...SCREW...SCREW
-
757129-28E01 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
8-257421-36E10 LEVER, BRAKELEVER, BRAKE
-
957431-14500 BOLTBOLT
-
10-208316-10063 NUTNUT
-
1157430-36E00 BOLT, ADJUSTERBOLT, ADJUSTER
-
1257318-14502 SPRINGSPRING
-
1357341-36E00 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
14-257211-36E01 GRIP (LEFT)GRIP (LEFT)
-
15-257500-28C40 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
16-257621-28C40 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1757431-28C01 ...BOLT...BOLT
-
1808319-21068 ...NUT...NUT
-
1957441-28C10 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
2057442-28C00 ...NUT...NUT
-
2101500-05163 ...BOLT...BOLT
-
22-257512-28C00 ...BRACKET, HOLDER...BRACKET, HOLDER
