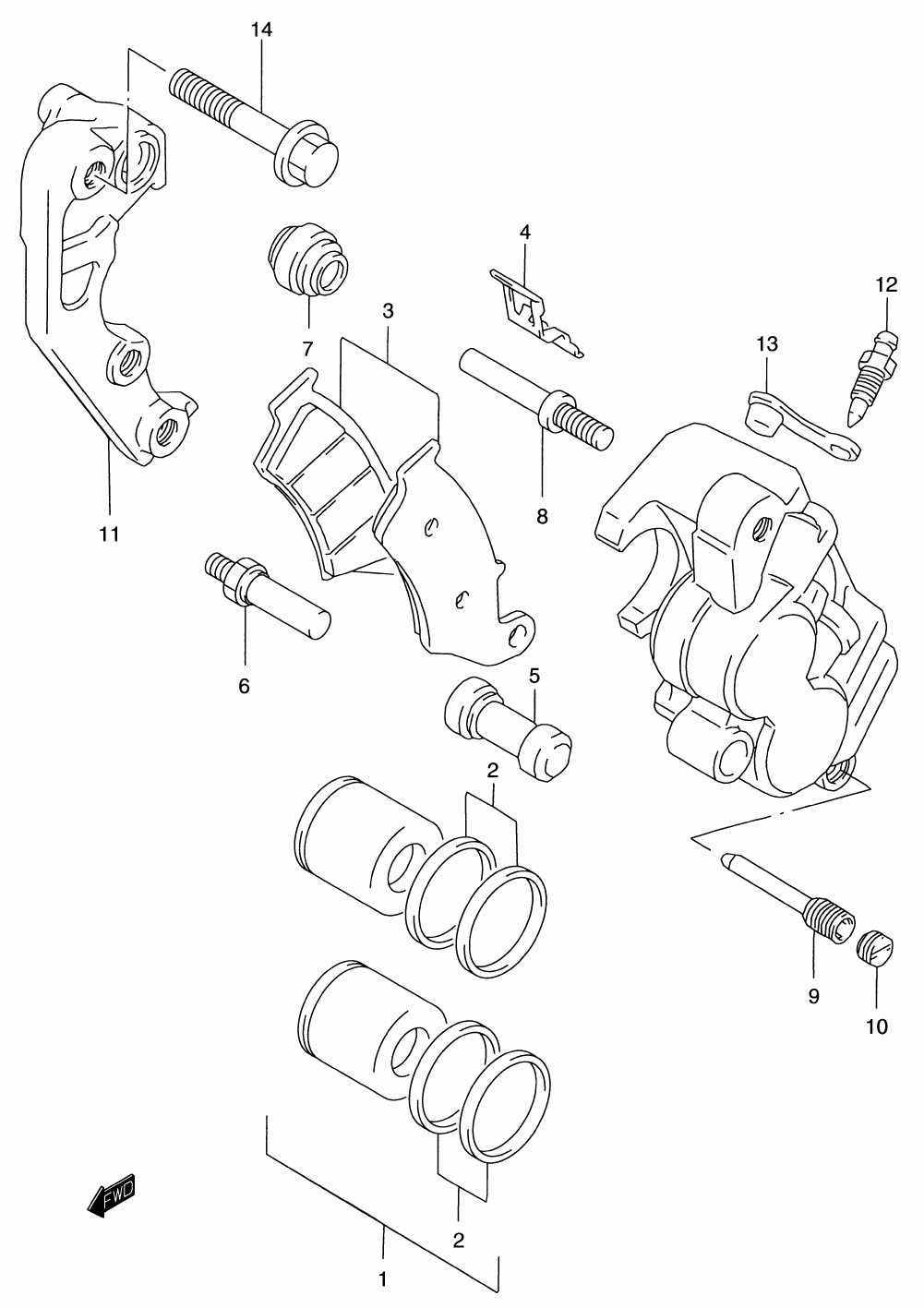

BRAKE - FRONT CALIPER ASSY. для Suzuki RM125Y - 2000 года выпуска`
-
№АртикулНазвание
-
59300-36E40 CALIPER ASSY (FRONT/LEFT)CALIPER ASSY (FRONT/LEFT)
-
159300-27840 ...PISTON SET...PISTON SET
-
259300-13820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
3-559300-36890 ...PAD SET...PAD SET
-
4-359315-13E00 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-27C30 ...PIN...PIN
-
759303-14500 ...BOOT...BOOT
-
859305-27C00 ...PIN...PIN
-
959345-13E00 ...PIN...PIN
-
1059146-21E10 ...PLUG...PLUG
-
1159350-13E00 ...BRACKET...BRACKET
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP...CAP
-
1409103-08338 BOLT (8X40)BOLT (8X40)
