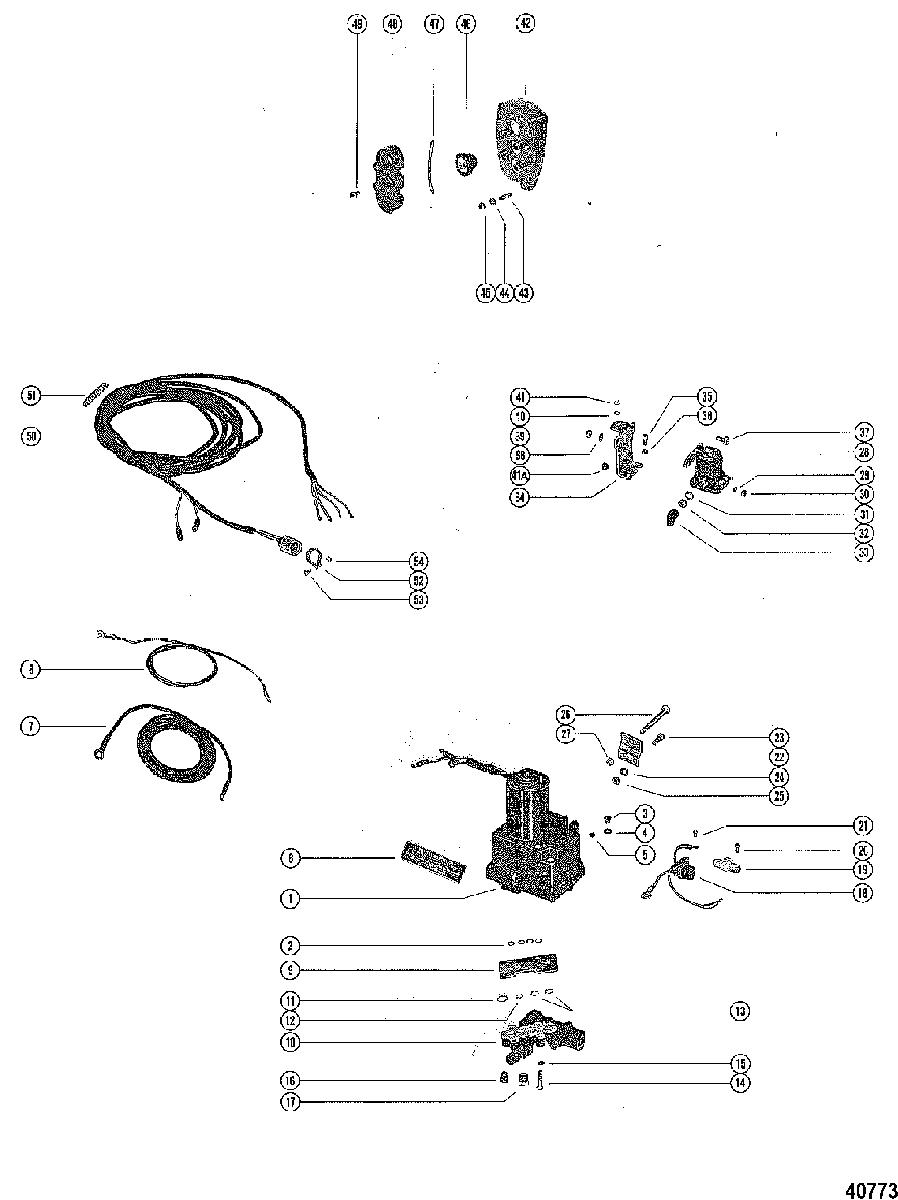

HYDRAULIC PUMP AND CONTROL PANEL для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
145060A7 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
225-48171 O-RINGO-RING
-
310-79953Q04 SCREW, (.375-16), FILLERSCREW, (.375-16), FILLER
-
412-191833 WASHER, SEALINGWASHER, SEALING
-
510-62269 SCREW, VENTSCREW, VENT
-
637-55901 DECAL, INSTRUCTIONDECAL, INSTRUCTION
-
732979 LEAD, Battery (POSITIVE)LEAD, Battery (POSITIVE)
-
832988 LEAD, Battery (NEGATIVE)LEAD, Battery (NEGATIVE)
-
945336 PLATE, MANIFOLDPLATE, MANIFOLD
-
1045197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
-25-48171 O-RING, HYDRAULIC PUMP TO MANIFOLD PLATEO-RING, HYDRAULIC PUMP TO MANIFOLD PLATE
-
1125-45254 O-RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)O-RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)
-
1225-48171 O-RING, CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)O-RING, CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)
-
1325-45253 O-RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)O-RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)
-
1410-56500 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1622-38609 PLUG, CONTROL VALVE (3/8-24")PLUG, CONTROL VALVE (3/8-24")
-
1722-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1845325A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1945559 TERMINAL BLOCK, HYDRAULIC PUMPTERMINAL BLOCK, HYDRAULIC PUMP
-
2010-35519 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2110-62568 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
2245377T BRACKET, MOUNTING - HYDRAULIC PUMP TO BOATBRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT
-
2310-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
2413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2511-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2610-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")
-
2711-35304 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2825661T1 SOLENOIDSOLENOID
-
2913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3011-68219 NUT, (#10)NUT, (#10)
-
3113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3211-22053 NUT, (5/16-24)NUT, (5/16-24)
-
3346265 BOOT, RUBBERBOOT, RUBBER
-
3474407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3510-21140 SCREW, (.250-28 x .50)SCREW, (.250-28 x .50)
-
3613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3710-34290 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
3813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3911-21825 NUT, (.250-28)NUT, (.250-28)
-
4013-27660 LOCKWASHERLOCKWASHER
-
4111-68219 NUT, (#10)NUT, (#10)
-
41A49342 BUMPER, RUBBERBUMPER, RUBBER
-
--55642A13 CONTROL PANEL ASSEMBLY, COMPLETECONTROL PANEL ASSEMBLY, COMPLETE
-
4255642A17 PANEL, CONTROLPANEL, CONTROL
-
4316-55422 STUD, (#10-32 x 2.00), CONTROL PANEL TO BOATSTUD, (#10-32 x 2.00), CONTROL PANEL TO BOAT
-
4412-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
4511-27164 NUT AND LOCKWASHER, (#10-32)NUT AND LOCKWASHER, (#10-32)
-
4655738A1 SWITCH ASSEMBLY, PUSH BOTTON - CONTROL PANELSWITCH ASSEMBLY, PUSH BOTTON - CONTROL PANEL
-
4748078 WIRE, Jumper, PUSH BOTTON SWITCH (RED - 3-1/4")WIRE, Jumper, PUSH BOTTON SWITCH (RED - 3-1/4")
-
4753107 WIRE, Jumper (3.00 Inches), PUSH BOTTON SWITCH (PURPLE)WIRE, Jumper (3.00 Inches), PUSH BOTTON SWITCH (PURPLE)
-
4855641 RETAINER, PUSH BOTTON SWITCHRETAINER, PUSH BOTTON SWITCH
-
4910-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
5084-87394A20 HARNESS ASSEMBLY, CONTROL PANEL (20 FEET)HARNESS ASSEMBLY, CONTROL PANEL (20 FEET)
-
5133865 BINDER, NYLON - CONTROL PANEL HARNESSBINDER, NYLON - CONTROL PANEL HARNESS
-
5295814 CLAMP, HARNESS FASTENINGCLAMP, HARNESS FASTENING
-
5310-29227 SCREW, (#8-32 x 0.50)SCREW, (#8-32 x 0.50)
-
5411-34388 NUTNUT
