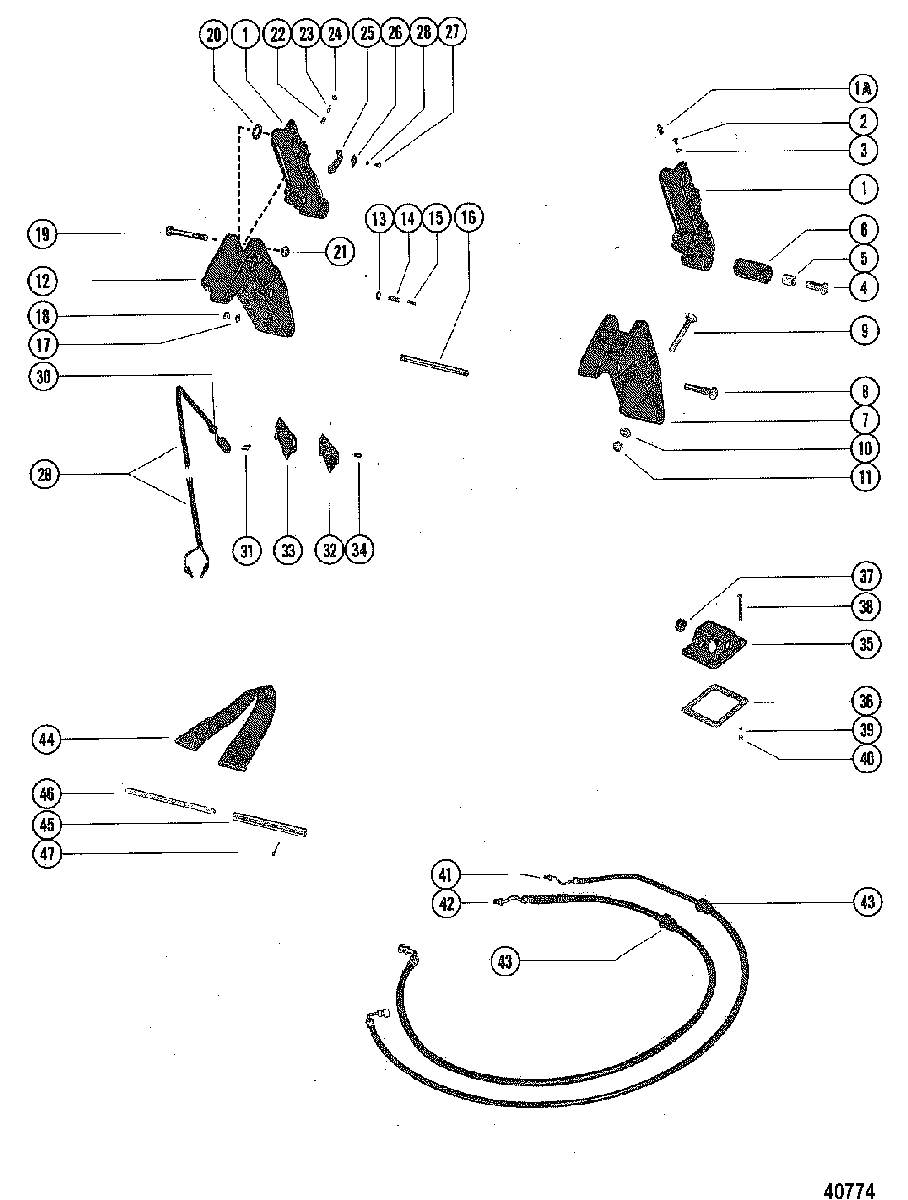

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
145194A9 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
192194A14 TRIM CYLINDERTRIM CYLINDER
-
1A22-74036 FITTING, Grease (USE WITH A-76509A3 TRIM CYLINDER)FITTING, Grease (USE WITH A-76509A3 TRIM CYLINDER)
-
210-45265 SCREW, (#10-32 x .3125), BLEED - SHOCK CYLINDERSCREW, (#10-32 x .3125), BLEED - SHOCK CYLINDER
-
325-45016 O-RING, SHOCK CYLINDER BLEED SCREWO-RING, SHOCK CYLINDER BLEED SCREW
-
410-45264 SCREW, (.500-20 x 1.500)SCREW, (.500-20 x 1.500)
-
523-45280 SPACER, SHOCK CYLINDER - LOWERSPACER, SHOCK CYLINDER - LOWER
-
623-94907A1 BUSHING, RUBBER - SHOCK CYLINDERBUSHING, RUBBER - SHOCK CYLINDER
-
789108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
-
810-45263 SCREW, (.500-20 x .2.250)SCREW, (.500-20 x .2.250)
-
910-68298 BOLT, (.375-16 x 3.250), MOUNTING BRACKET TO BOAT TRANSOMBOLT, (.375-16 x 3.250), MOUNTING BRACKET TO BOAT TRANSOM
-
1012-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1111-82670912 NUT, (.375-16), MOUNTING BRACKET BOLTNUT, (.375-16), MOUNTING BRACKET BOLT
-
1289807A1 BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
-
1326-70608 SEAL, Oil, STARBOARD MOUNTING BRACKETSEAL, Oil, STARBOARD MOUNTING BRACKET
-
1489290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1524-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1616-45282 STUD, (.312-24 x 16.620), MOUNTING BRACKET AND CLAMP BRACKETSTUD, (.312-24 x 16.620), MOUNTING BRACKET AND CLAMP BRACKET
-
1713-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1811-28770 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
1910-45328 SCREW, (.437-20 x 3.560)SCREW, (.437-20 x 3.560)
-
2012-37807 WASHERWASHER
-
2111-20696 NUTNUT
-
2224-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2316-8M0034461 STUD, (#10-32 x .930)STUD, (#10-32 x .930)
-
2411-859124 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2599897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2686967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2710-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
2813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2945326A2 SWITCH ASSEMBLY, CUT-OUT LIMITSWITCH ASSEMBLY, CUT-OUT LIMIT
-
3023-45354 BUSHING, RUBBERBUSHING, RUBBER
-
3110-47255 SCREW, (#4-40 x .625)SCREW, (#4-40 x .625)
-
3245287 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3327-45275 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3410-24942 SCREW, (10-32 x 0.4375)SCREW, (10-32 x 0.4375)
-
3587774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3627-45274 GASKET, INLET COVERGASKET, INLET COVER
-
3725-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
3810-32866 SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOATSCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
-
3912-20878 WASHER, INLET COVER SCREWWASHER, INLET COVER SCREW
-
4011-826709106 NUT, (#10-32), INLET COVER SCREWNUT, (#10-32), INLET COVER SCREW
-
4132-88005 HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. -
4232-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. (#32-88006)HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. (#32-88006)
-
4323-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSEGROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
-
4473519A1 STRAP, Tilt StopSTRAP, Tilt Stop
-
4563441 TUBE, MOUNTING - TILT STOP
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowTUBE, MOUNTING - TILT STOP
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
4569259 TUBE, MOUNTING - TILT STOP
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpTUBE, MOUNTING - TILT STOP
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
4617-63442 PIN, MOUNTING TUBE
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowPIN, MOUNTING TUBE
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
4669258 PIN, MOUNTING TUBE
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpPIN, MOUNTING TUBE
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
4718-36002 COTTER PIN, MOUNTING TUBE PIN
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpCOTTER PIN, MOUNTING TUBE PIN
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
