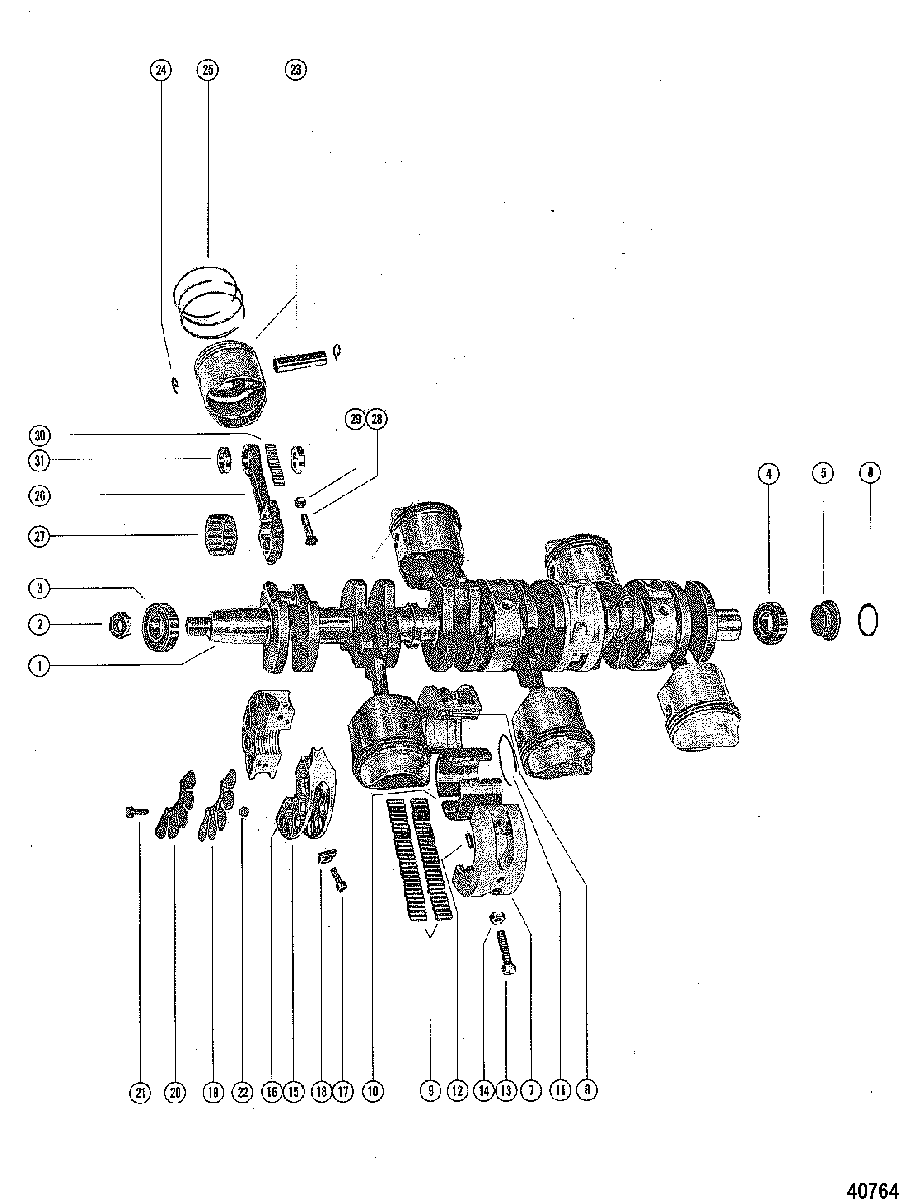

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1150 8008665 THRU 8051949

  • №
    Артикул
    Название
  • 1
    436-9072A1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    11-52901 NUT, (.625-18), FLYWHEEL TO CRANKSHAFT
    NUT, (.625-18), FLYWHEEL TO CRANKSHAFT
  • 3
    30-62567T BEARING, Ball, UPPER
    BEARING, Ball, UPPER
  • 4
    30-63742T BEARING, Ball, LOWER
    BEARING, Ball, LOWER
  • 5
    54196A6 CARRIER ASSEMBLY, "O" RING
    CARRIER ASSEMBLY, "O" RING
  • 6
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 7
    535-3190A2 BEARING ASSEMBLY, Center Main
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    BEARING ASSEMBLY, Center Main
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 7
    535-5397A4 BEARING ASSEMBLY, Center Main
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    BEARING ASSEMBLY, Center Main
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 8
    17-20032 PIN, Dowel, CENTER MAIN BEARING
    PIN, Dowel, CENTER MAIN BEARING
  • 9
    29-714221 BEARING, NEEDLE - OUTER RACE
    BEARING, NEEDLE - OUTER RACE
  • 10
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 11
    53-26933 RING, Snap, OUTER RACE
    RING, Snap, OUTER RACE
  • 12
    17-47246 PIN, Dowel, STEPPED
    PIN, Dowel, STEPPED
  • 13
    10-22968 SCREW, (.250-28 x 1.25)
    SCREW, (.250-28 x 1.25)
  • 14
    11-20184 NUT, (1/4-28)
    NUT, (1/4-28)
  • 15
    540-5266T5 BEARING ASSEMBLY, Main, VALVE TYPE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
    BEARING ASSEMBLY, Main, VALVE TYPE
    SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
  • 15
    540-5266T5 BEARING ASSEMBLY, Main, VALVE TYPE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
    BEARING ASSEMBLY, Main, VALVE TYPE
    SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
  • 16
    17-20032 PIN, Dowel, MAIN BEARING
    PIN, Dowel, MAIN BEARING
  • 17
    10-45775 SCREW, (#12-28 x .560)
    SCREW, (#12-28 x .560)
  • 18
    11-45774 NUT
    NUT
  • 19
    34-56007A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 20
    34-56008 STOP, Reed, MAIN BEARING REED VALVES
    STOP, Reed, MAIN BEARING REED VALVES
  • 21
    10-62204 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 22
    11-53153 NUT, REED STOP SCREW
    NUT, REED STOP SCREW
  • 23
    774-9137A12 PISTON ASSEMBLY (3 RING)
    (STANDARD)
    PISTON ASSEMBLY (3 RING)
    (STANDARD)
  • 23
    774-9137A13 PISTON ASSEMBLY (3 RING)
    (.015 OVERSIZE)
    PISTON ASSEMBLY (3 RING)
    (.015 OVERSIZE)
  • 23
    774-9137A12 PISTON ASSEMBLY (2 RING)
    (STANDARD)
    PISTON ASSEMBLY (2 RING)
    (STANDARD)
  • 23
    774-9137A13 PISTON ASSEMBLY (2 RING)
    (.015 OVERSIZE)
    PISTON ASSEMBLY (2 RING)
    (.015 OVERSIZE)
  • 24
    53-857196 RING, Lock, PISTON PIN
    RING, Lock, PISTON PIN
  • 25
    39-78816A12 RING (1/16" THICK)
    (STANDARD)
    RING (1/16" THICK)
    (STANDARD)
  • 25
    39-78811A12 RING (1/16" THICK)
    (.015 OVERSIZE)
    RING (1/16" THICK)
    (.015 OVERSIZE)
  • 26
    624-8101A3 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 27
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 28
    10-54803 SCREW, (.250-28 x 1.500)
    SCREW, (.250-28 x 1.500)
  • 29
    11-49091 NUT
    NUT
  • 30
    29-47270 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 31
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • -
    27-85653A87 GASKET SET
    GASKET SET
