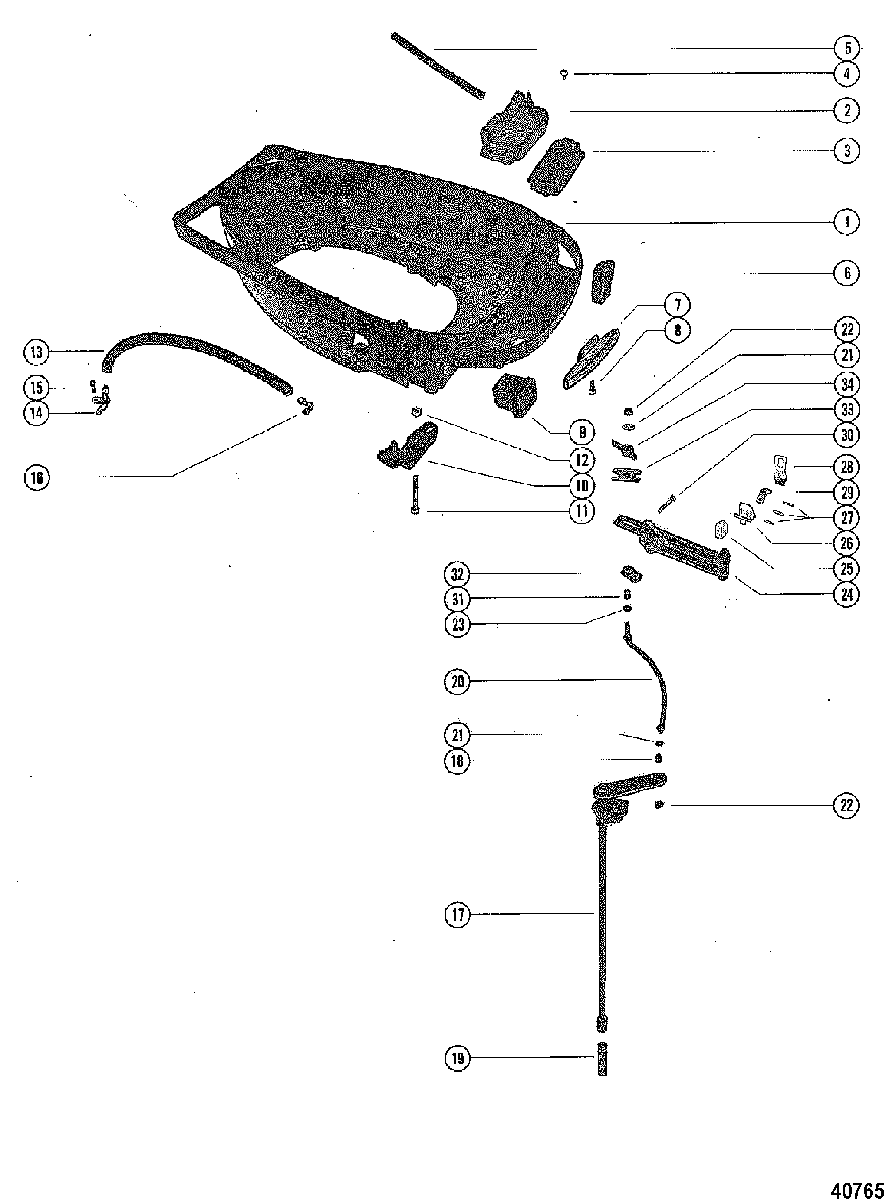

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
12115-3919 COWL, BOTTOM
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowCOWL, BOTTOM
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
12115-8963A1 COWL, BOTTOM
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522COWL, BOTTOM
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4394236/Australia-8027439/Canada-7075522 -
12115-8963A1 COWL, BOTTOM
SN# USA-4394237/Canada-7075523 & UpCOWL, BOTTOM
SN# USA-4394237/Canada-7075523 & Up -
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 SOUND PADSOUND PAD
-
410-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
532-8M0108355 HOSE (8")HOSE (8")
-
639616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
776369 SPACER, BOTTOM COWL (COWL FRONT COVER)SPACER, BOTTOM COWL (COWL FRONT COVER)
-
810-48591 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
937637 BOOT, FUEL CONNECTORBOOT, FUEL CONNECTOR
-
1037445 SUPPORT, WIRING HARNESSSUPPORT, WIRING HARNESS
-
1110-69029 SCREW
(1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW
(1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1110-88488 SCREW
(3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowSCREW
(3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1110-69029 SCREW, (.250-28 x 1.750)
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, (.250-28 x 1.750)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1211-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & BelowNUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below -
1332-8M0108355 HOSE, TELL TALE - (16")HOSE, TELL TALE - (16")
-
1452889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1510-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1622-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
1760304A55 SHIFT SHAFT ASSEMBLY, UPPER
(SHORT SHAFT) SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowSHIFT SHAFT ASSEMBLY, UPPER
(SHORT SHAFT) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
1760304A55 SHIFT SHAFT ASSEMBLY, UPPER
(SHORT SHAFT) SN# USA-4567952/Canada-7087423 & UpSHIFT SHAFT ASSEMBLY, UPPER
(SHORT SHAFT) SN# USA-4567952/Canada-7087423 & Up -
1760304A54 SHIFT SHAFT ASSEMBLY, UPPER
(LONG SHAFT) SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowSHIFT SHAFT ASSEMBLY, UPPER
(LONG SHAFT) SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
1760304A54 SHIFT SHAFT ASSEMBLY, UPPER
(LONG SHAFT) SN# USA-4567952/Canada-7087423 & UpSHIFT SHAFT ASSEMBLY, UPPER
(LONG SHAFT) SN# USA-4567952/Canada-7087423 & Up -
1823-26600 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
1993960A1 COUPLING, SHIFT SHAFT
SN# USA-4567951/Australia-8027439/Canada-7087422 & BelowCOUPLING, SHIFT SHAFT
SN# USA-4567951/Australia-8027439/Canada-7087422 & Below -
2073402 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2112-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2211-826709109 NUT, (.250-28)NUT, (.250-28)
-
2313-29720 WAVE WASHER, LINK RODWAVE WASHER, LINK ROD
-
2452732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2539519 CUP, BARREL RETIANERCUP, BARREL RETIANER
-
2687609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
2717-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2839667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2987609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
3010-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
3124-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
3237896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
3352100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
348M0036768 LATCH, CONTROL CABLE FASTENINGLATCH, CONTROL CABLE FASTENING
