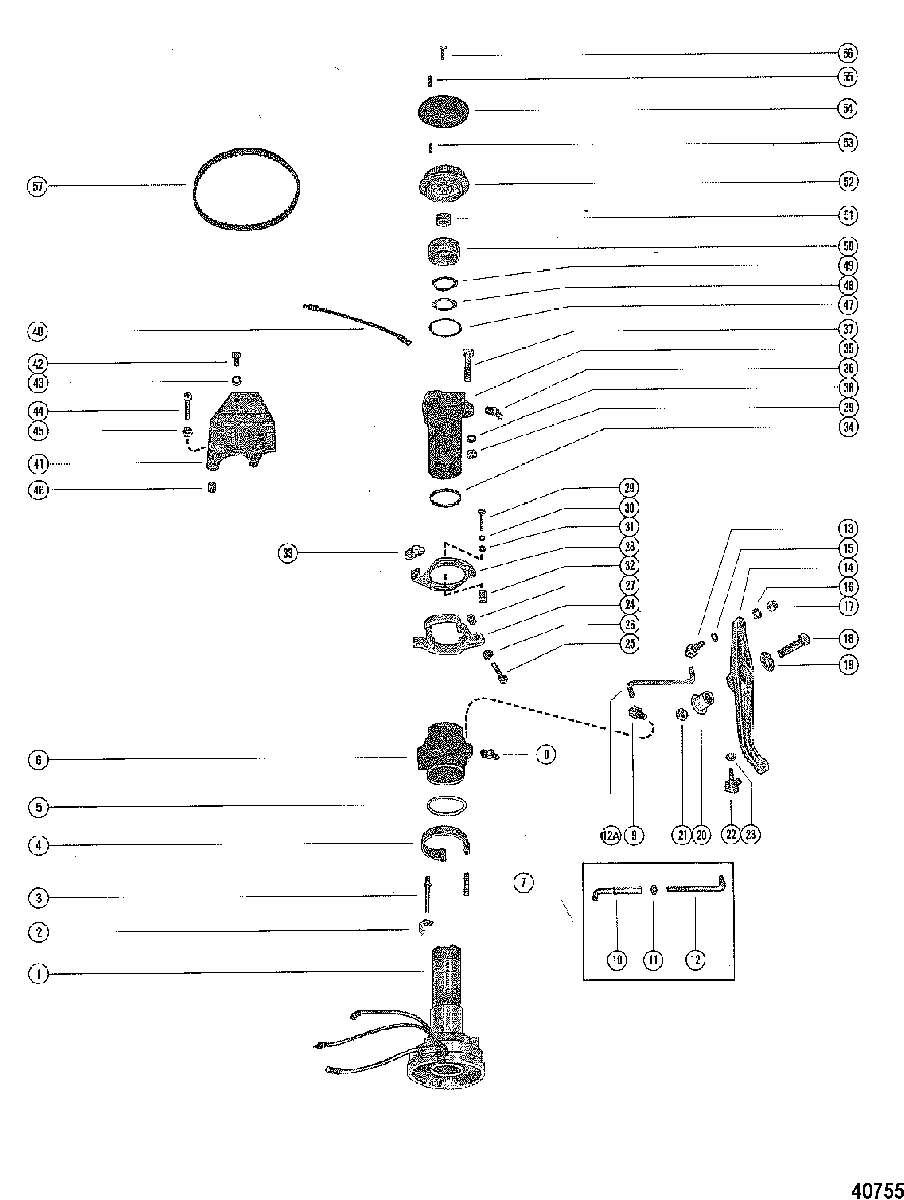

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 1150 8008665 THRU 8051949

№

Артикул

Название
1

393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR

HOUSING ASSEMBLY, DISTRIBUTOR
2

32197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING

STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
3

17-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING

PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
4

24-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSING

SPRING, HORSESHOE - DISTRIBUTOR HOUSING
5

12-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING

WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
6

55804A1 ECONOMIZER COLLAR ASSEMBLY

ECONOMIZER COLLAR ASSEMBLY
7

17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER

PIN, ECONOMIZER COLLAR - SPRING RETAINER
8

22-25094 FITTING, GREASE - ECONOMIZER COLLAR

FITTING, GREASE - ECONOMIZER COLLAR
9

27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR

SWIVEL, LINKAGE - ECONOMIZER COLLAR
10

25996A1 SWIVEL AND LINK ROD ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

SWIVEL AND LINK ROD ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
11

11-29598 NUT
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

NUT
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
12

37700 ROD, LINK - UPPER
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

ROD, LINK - UPPER
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
12A

67469 ROD LINK, LINK - UPPER
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

ROD LINK, LINK - UPPER
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
13

27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER

SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
14

78992 LEVER, THROTTLE CONTROL

LEVER, THROTTLE CONTROL
15

13-39954 WAVE WASHER,

WAVE WASHER,
16

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel
17

11-35888 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel
18

10-31830 SCREW (1-3/4")

SCREW (1-3/4")
19

12-8M0042641 WASHER, (.390 x 1.00 x .06)

WASHER, (.390 x 1.00 x .06)
20

23-45818 BUSHING

BUSHING
21

11-8M0042636 NUT

NUT
22

37587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE

SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
23

11-35888 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel
24

48692 COLLAR, THROTTLE ACTUATOR

COLLAR, THROTTLE ACTUATOR
25

10-48675 SCREW, ADJUSTING (1-1/2")

SCREW, ADJUSTING (1-1/2")
26

11-64015 NUT, (.250-20)

NUT, (.250-20)
27

52023 CAP, NYLON

CAP, NYLON
28

48671 PLATE, THROTTLE ACTUATOR

PLATE, THROTTLE ACTUATOR
29

10-37892 SCREW, (.190-32 x 1.00)

SCREW, (.190-32 x 1.00)
30

12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW

WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW
31

13-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW

LOCKWASHER, (#10) Stainless Steel, THROTTLE ACTUATOR PLATE FASTENING SCREW
32

23-48674 SPACER, THROTTLE ACTUATOR PLATE SCREW

SPACER, THROTTLE ACTUATOR PLATE SCREW
33

58454 CAM, THROTTLE ACTUATOR PLATE

CAM, THROTTLE ACTUATOR PLATE
34

12-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSING

WASHER, ADAPTOR - DISTRIBUTOR HOUSING
35

66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW

ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW
35

66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE

ADAPTOR ASSEMBLY, DISTRIBUTOR
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE
36

22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR

FITTING, GREASE - DISTRIBUTOR ADAPTOR
37

10-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW

SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW
37

10-73657 SCREW, (.312-18 x 1.50), DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")-
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE

SCREW, (.312-18 x 1.50), DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")-
USA SN# 3761035 AND ABOVE Australia SN# 8014005 AND ABOVE Canada SN# 7025598 AND ABOVE
38

12-20084 WASHER, (.328 x .562 x .062), DISTRIBUTOR HOUSING SCREW

WASHER, (.328 x .562 x .062), DISTRIBUTOR HOUSING SCREW
39

11-22053 NUT, (5/16-24), DISTRIBUTOR HOUSING SCREW
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW

NUT, (5/16-24), DISTRIBUTOR HOUSING SCREW
USA SN# 3761034 AND BELOW Australia SN# 8014004 AND BELOW Canada SN# 7025597 AND BELOW
40

84-93388A1 STRAP ASSEMBLY, Ground, GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET

STRAP ASSEMBLY, Ground, GROUND - DISTRIBUTOR ADAPTOR TO FRONT SUPPORT BRACKET
41

55805 BRACKET, STOP

BRACKET, STOP
42

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)
43

12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel

WASHER, (.2656 x .625 x .0625) Stainless Steel
44

10-64022 SCREW, (.250-20 x 2.125)

SCREW, (.250-20 x 2.125)
45

11-64015 NUT, (.250-20)

NUT, (.250-20)
46

52023 CAP, NYLON - STOP BRACKET ADJUSTING SCREW

CAP, NYLON - STOP BRACKET ADJUSTING SCREW
47

12-27939 WASHER

WASHER
48

14-27960 TAB WASHER

TAB WASHER
49

13-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION

WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
50

54567 CAP, DISTRIBUTOR HOUSING

CAP, DISTRIBUTOR HOUSING
51

23-47250 SPACER, DRIVE PULLEY

SPACER, DRIVE PULLEY
52

29906A1 PULLEY ASSEMBLY, Driven

PULLEY ASSEMBLY, Driven
53

17-29908 PIN, ROLL - FLANGE LOCATING

PIN, ROLL - FLANGE LOCATING
54

29907 FLANGE, DRIVEN PULLEY

FLANGE, DRIVEN PULLEY
55

28-29910 KEY, DISTRIBUTOR DRIVER

KEY, DISTRIBUTOR DRIVER
56

10-68554 SCREW, PULLEY CLAMPING

SCREW, PULLEY CLAMPING
57

20140 BELT, TIMING

BELT, TIMING
