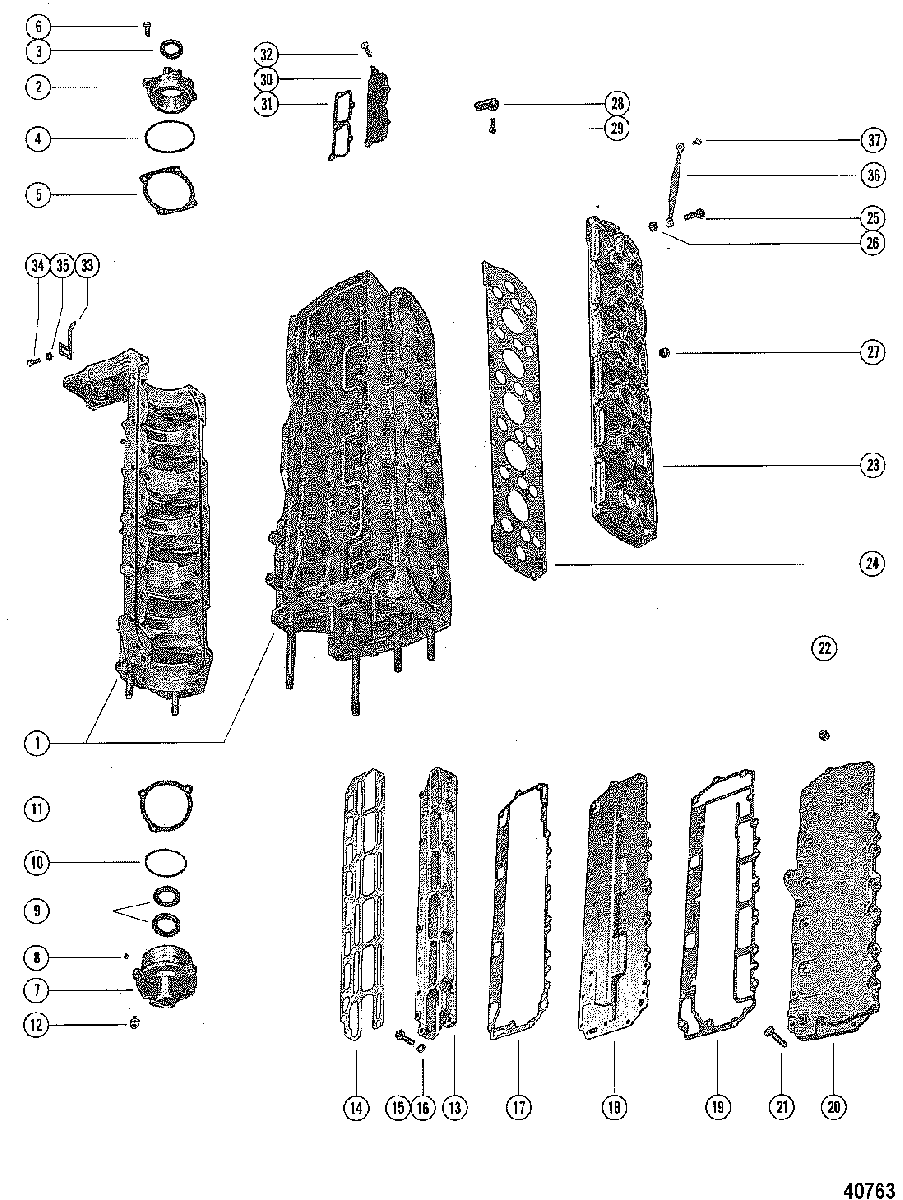

END CAP, MANIFOLD AND EXHAUST COVERS для Mercury - 1150 8008665 THRU 8051949

№

Артикул

Название
1

852-7401A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
1

852-7401A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257
1

852-7401A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4394236/Australia-8027439/Canada-7075522

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 THRU USA-4394236/Australia-8027439/Canada-7075522
1

852-7401A2 CYLINDER BLOCK ASSEMBLY
SN# USA-4394237/Canada-7075523 THRU USA-4567951/Canada-7087422

CYLINDER BLOCK ASSEMBLY
SN# USA-4394237/Canada-7075523 THRU USA-4567951/Canada-7087422
1

852-7401A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-4567952/Canada-7087423 & Up

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
SN# USA-4567952/Canada-7087423 & Up
2

1134-3197A1 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER
3

26-41953 SEAL, Oil, END CAP

SEAL, Oil, END CAP
4

25-47254 O-RING

O-RING
5

15-47248A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)

SHIM, END CAP TO CRANKCASE (.002-3-5-10)
6

10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00), END CAP MOUNTING

SCREW WITH LOCKWASHER, (.312-18 x 1.00), END CAP MOUNTING
7

1148-5410T1 END CAP ASSEMBLY, LOWER
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

END CAP ASSEMBLY, LOWER
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
7

1148-5410T1 END CAP ASSEMBLY, LOWER
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

END CAP ASSEMBLY, LOWER
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
8

21-42657A3 CHECK VALVE ASSEMBLY, END CAP
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

CHECK VALVE ASSEMBLY, END CAP
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
9

26-41953 SEAL, Oil, END CAP

SEAL, Oil, END CAP
10

25-32546 O-RING, END CAP

O-RING, END CAP
11

15-20085A1 SHIM SET, END CAP TO CRANKCASE (.002-3-5-10)

SHIM SET, END CAP TO CRANKCASE (.002-3-5-10)
12

10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)

SCREW WITH LOCKWASHER, (.312-18 x 1.00)
13

71808 COVER
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below

COVER
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
13

71808 COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up

COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
14

27-721421 GASKET, WATER JACKET COVER

GASKET, WATER JACKET COVER
15

10-53167T SCREW, (.312-18 x .880)

SCREW, (.312-18 x .880)
16

12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel

WASHER, (.323 x .563 x .063) Stainless Steel
17

27-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATE

GASKET, CYLINDER BLOCK TO BAFFLE PLATE
18

757781 PLATE, BAFFLE - EXHAUST MANIFOLD

PLATE, BAFFLE - EXHAUST MANIFOLD
19

27-854972 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER

GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
20

99896A1 COVER, EXHAUST MANIFOLD

COVER, EXHAUST MANIFOLD
21

10-53576 SCREW, (.312-18 x 1.125)

SCREW, (.312-18 x 1.125)
22

22-328022 PLUG, Pipe (.125-27)

PLUG, Pipe (.125-27)
23

1023-8368A1 COVER, CYLINDER BLOCK

COVER, CYLINDER BLOCK
24

27-981853 GASKET, CYLINDER BLOCK COVER

GASKET, CYLINDER BLOCK COVER
25

10-21091 SCREW, (1 1/8")
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below

SCREW, (1 1/8")
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
25

10-76630 SCREW, (1/4-20 x 1)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up

SCREW, (1/4-20 x 1)
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
26

11-20184 NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below

NUT, (1/4-28)
SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
27

22-328022 PLUG, Pipe (.125-27)

PLUG, Pipe (.125-27)
28

37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK

BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
29

10-35386 SCREW, (.312-18 x 1.00)

SCREW, (.312-18 x 1.00)
30

62301 COVER, TRANSFER PORT
(TOP/MIDDLE)

COVER, TRANSFER PORT
(TOP/MIDDLE)
30

62978 COVER, TRANSFER PORT
(BOTTOM) SN# USA-3761034/Australia-8014004/Canada-7025597 & Below

COVER, TRANSFER PORT
(BOTTOM) SN# USA-3761034/Australia-8014004/Canada-7025597 & Below
30

66094 COVER, TRANSFER PORT
(BOTTOM) SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

COVER, TRANSFER PORT
(BOTTOM) SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
31

27-64941 GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER
32

10-76630 SCREW, (1/4-20 x 1)

SCREW, (1/4-20 x 1)
32

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)
33

43352 POINTER, TIMING
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

POINTER, TIMING
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
34

10-28636 SCREW, (.250-20 x .750)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

SCREW, (.250-20 x .750)
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
35

12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up

WASHER, (.2656 x .625 x .0625) Stainless Steel
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up
36

46933A1 GROUND WIRE, EXHAUST COVER

GROUND WIRE, EXHAUST COVER
37

10-62568 SCREW, (#10-16 x .375)

SCREW, (#10-16 x .375)
-

27-85653A87 GASKET SET

GASKET SET
