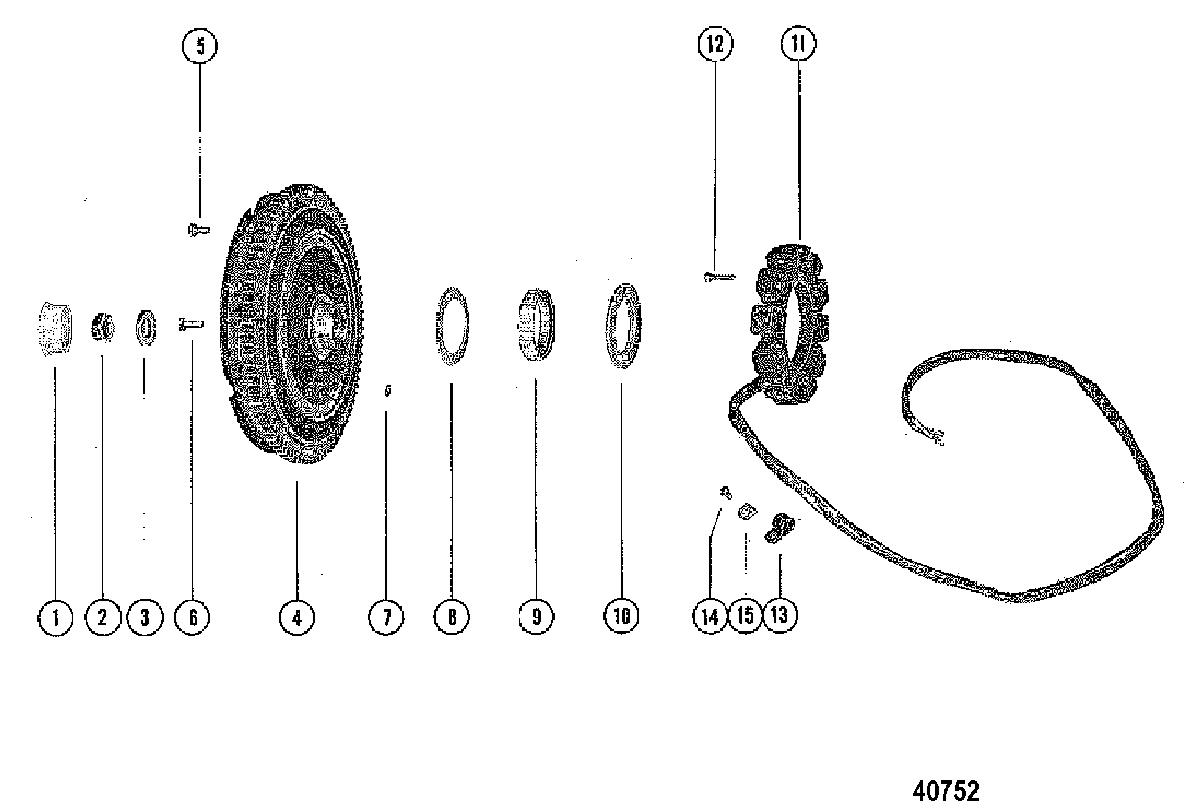

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
211-52901 NUT, (.625-18), FLYWHEEL (PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)NUT, (.625-18), FLYWHEEL (PART OF A-436-4842A3 CRANKSHAFT ASSEMBLY)
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowFLYWHEEL ASSEMBLY, COMPLETE
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpFLYWHEEL ASSEMBLY, COMPLETE
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
510-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
610-68997 SCREW, PLATE/HUB TO FLEX. PLATE
SN# USA-3761034/Australia-8014004/Canada-7025597 & BelowSCREW, PLATE/HUB TO FLEX. PLATE
SN# USA-3761034/Australia-8014004/Canada-7025597 & Below -
610-69088 SCREW, PLATE/HUB TO FLEX. PLATE
SN# USA-3761035/Australia-8014005/Canada-7025598 & UpSCREW, PLATE/HUB TO FLEX. PLATE
SN# USA-3761035/Australia-8014005/Canada-7025598 & Up -
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4793 STATOR, ALTERNATOR (NOT AS SHOWN)STATOR, ALTERNATOR (NOT AS SHOWN)
-
1210-63136 SCREW, (#10-24 x .880), STATOR TO UPPER END CAPSCREW, (#10-24 x .880), STATOR TO UPPER END CAP
-
1354-22875 CLIP, STATOR LEAD FASTENING
(7/16")CLIP, STATOR LEAD FASTENING
(7/16") -
1354-24871 CLAMP, STATOR LEAD FASTENING
(5/8")CLAMP, STATOR LEAD FASTENING
(5/8") -
1354-22627 CLIP, STATOR/WIRING HARNESS LEADS FASTENING
(1/2")CLIP, STATOR/WIRING HARNESS LEADS FASTENING
(1/2") -
1410-62568 SCREW, (#10-16 x .375), STATOR LEAD CLIP FASTENINGSCREW, (#10-16 x .375), STATOR LEAD CLIP FASTENING
-
158M0084613 C WASHER, CLIP FASTENING SCREWC WASHER, CLIP FASTENING SCREW
