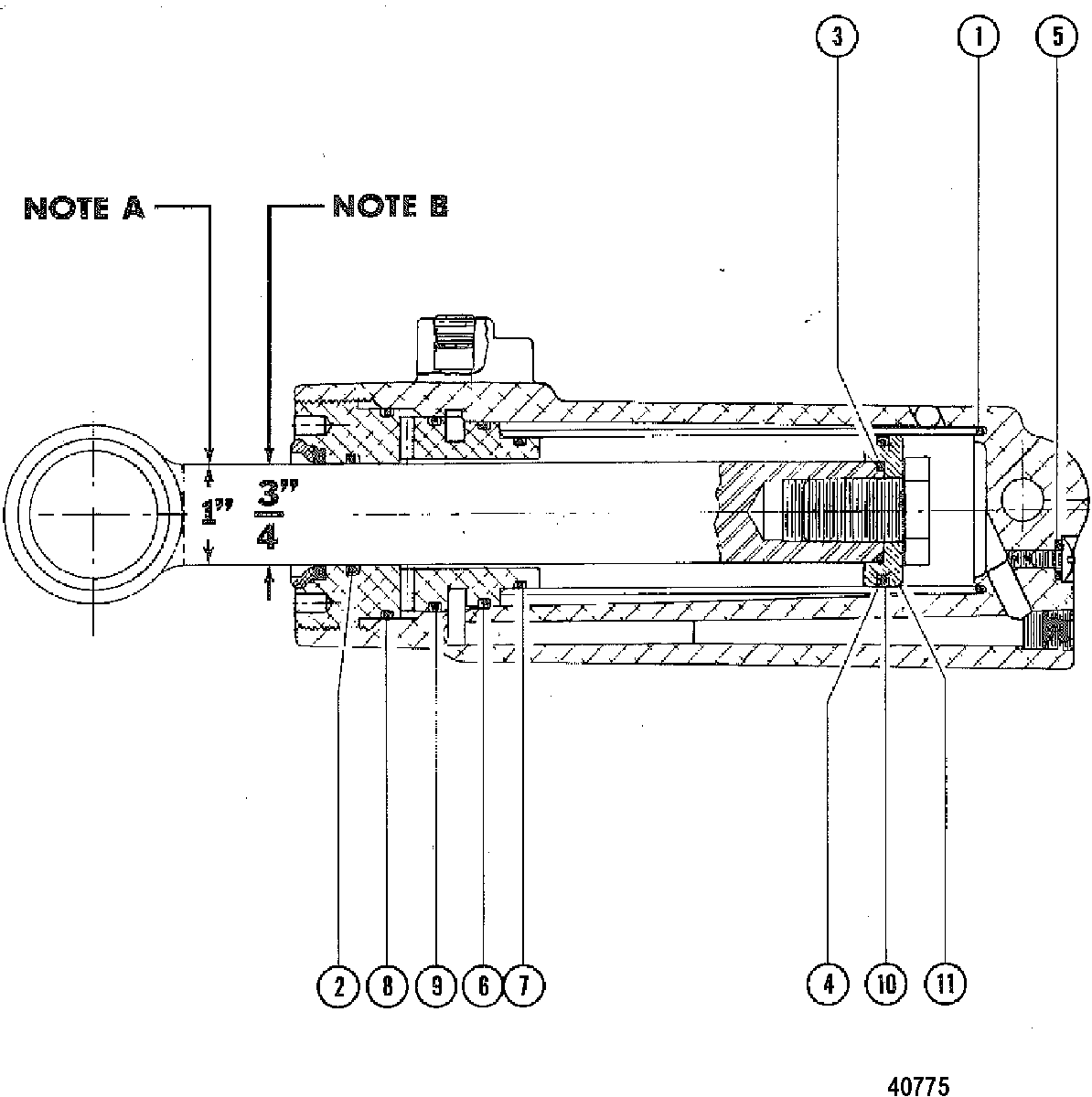

POWER TRIM CYLINDER REPAIR KITS для Mercury - 1150 8008665 THRU 8051949

  • №
    Артикул
    Название
  • -
    48664A1 REPAIR KIT
    (1 INCH)
    REPAIR KIT
    (1 INCH)
  • -
    64507A1 REPAIR KIT
    (3/4 INCH)
    REPAIR KIT
    (3/4 INCH)
  • 1
    N.S.S. Not Sold Separate, O-Ring (1-1/2" x 1-5/8" x 1/16")
    Not Sold Separate, O-Ring (1-1/2" x 1-5/8" x 1/16")
  • 2
    N.S.S. Not Sold Separate, O-Ring (1" x 1-3/16" x 3/32") or (3/4" x 15/16" x 1/8")
    Not Sold Separate, O-Ring (1" x 1-3/16" x 3/32") or (3/4" x 15/16" x 1/8")
  • 3
    N.S.S. Not Sold Separate, O-Ring (7/8" x 1" x 1/16") or (5/8" x 3/4" x 1/16")
    Not Sold Separate, O-Ring (7/8" x 1" x 1/16") or (5/8" x 3/4" x 1/16")
  • 4
    N.S.S. Not Sold Separate, O-Ring (1-1/4" x 1-7/16" x 1/16")
    Not Sold Separate, O-Ring (1-1/4" x 1-7/16" x 1/16")
  • 5
    N.S.S. Not Sold Separate, O-Ring (7/32" x 11/32" x 1/16")
    Not Sold Separate, O-Ring (7/32" x 11/32" x 1/16")
  • 6
    N.S.S. Not Sold Separate, O-Ring (1-5/8" x 1-13/16" x 1/8")
    Not Sold Separate, O-Ring (1-5/8" x 1-13/16" x 1/8")
  • 7
    N.S.S. Not Sold Separate, O-Ring (1-5/16" x 1-1/2" x 1/8")
    Not Sold Separate, O-Ring (1-5/16" x 1-1/2" x 1/8")
  • 8
    N.S.S. Not Sold Separate, O-Ring (1 7/8" x 2" x 1/8")
    Not Sold Separate, O-Ring (1 7/8" x 2" x 1/8")
  • 9
    N.S.S. Not Sold Separate (1-3/4" x 1-5/16" x 1/8")
    Not Sold Separate (1-3/4" x 1-5/16" x 1/8")
  • 10
    N.S.S. Not Sold Separate, Seal, slipper-piston
    Not Sold Separate, Seal, slipper-piston
  • 11
    N.S.S. Not Sold Separate, Piston, rod-heavy dutyd
    Not Sold Separate, Piston, rod-heavy dutyd
