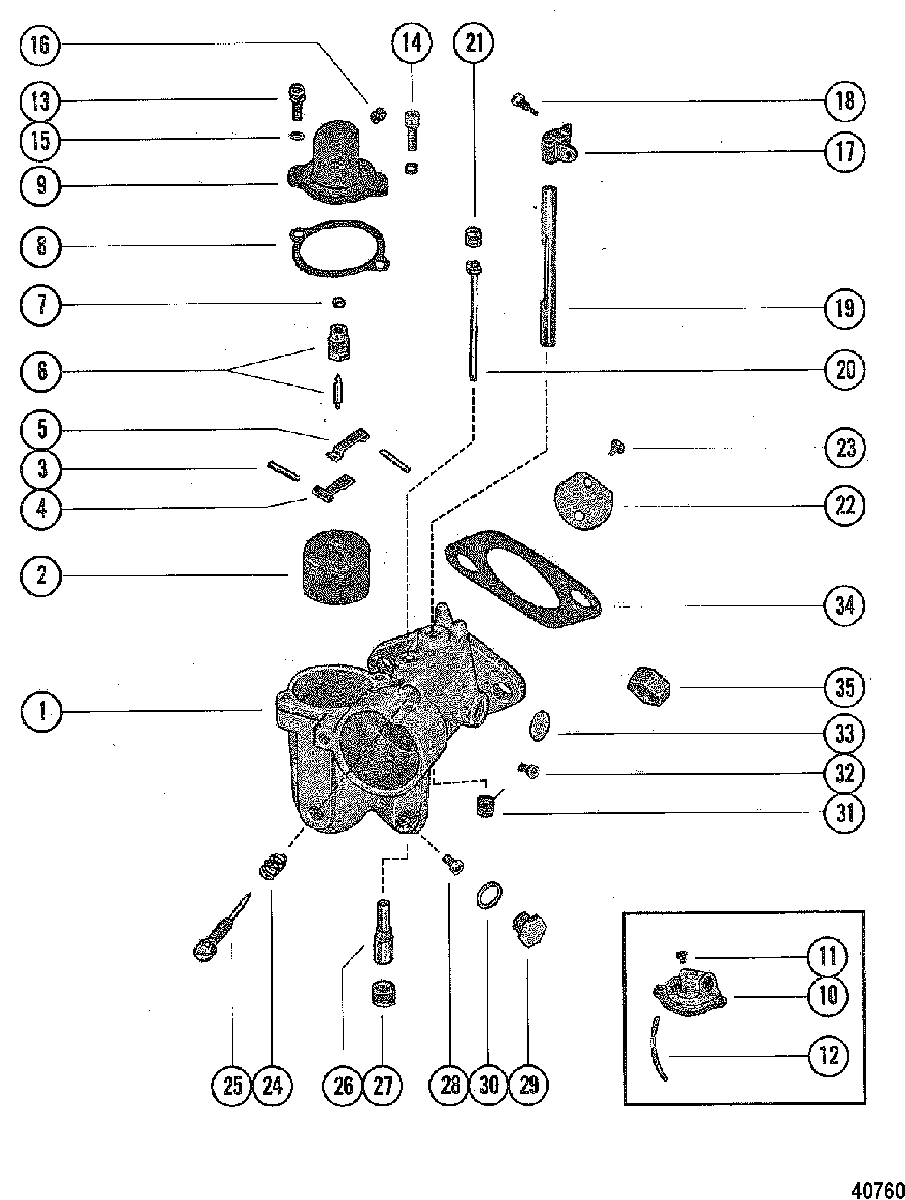

CARB, USA-3761035/Aus.-8014005/Canada-7025598 and Up для Mercury - 1150 8008665 THRU 8051949
-
№АртикулНазвание
-
11368-5290A6 CARBURETOR ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257CARBURETOR ASSEMBLY
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
11368-5702A19 CARBURETOR ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCARBURETOR ASSEMBLY
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3NSS NOT SOLD SEPARATE, PIN, FLOAT LEVER PINIONNOT SOLD SEPARATE, PIN, FLOAT LEVER PINION
-
4NSS NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)NOT SOLD SEPARATE, LEVER, FLOAT (LOWER)
-
5NSS NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)NOT SOLD SEPARATE, LEVER, FLOAT (UPPER)
-
61395-83181 NEEDLE, Inlet, SEAT AND GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257NEEDLE, Inlet, SEAT AND GASKET
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
61395-83181 NEEDLE, Inlet, SEAT AND GASKET
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpNEEDLE, Inlet, SEAT AND GASKET
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
7NSS NOT SOLD SEPARATE, GASKET, INLET SEATNOT SOLD SEPARATE, GASKET, INLET SEAT
-
8NSS NOT SOLD SEPARATE, GASKET, FLOAT BOWL COVERNOT SOLD SEPARATE, GASKET, FLOAT BOWL COVER
-
91395-5261 COVER, FLOAT BOWL
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257COVER, FLOAT BOWL
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
101395-5680 COVER, FLOAT BOWL
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpCOVER, FLOAT BOWL
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
111395-5733 JET, Main (.092), BOWL VENT
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpJET, Main (.092), BOWL VENT
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1232-892024122 HOSE, ECONOMIZER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpHOSE, ECONOMIZER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1310-52195 SCREW, FLOAT BOWL COVER
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257SCREW, FLOAT BOWL COVER
SN# USA-3761035/Australia-8014005/Canada-7025598 THRU USA-4112634/Australia-8027114/Canada-7047257 -
1310-52195 SCREW, FLOAT BOWL COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, FLOAT BOWL COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
141395-4804 SCREW, FLOAT BOWL COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & UpSCREW, FLOAT BOWL COVER
SN# USA-4112635/Australia-8027115/Canada-7047258 & Up -
1513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
161395-4805 SCREEN, FILTERSCREEN, FILTER
-
178146791 LEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY -- REPLACED WITH A-52518 CLUSTERLEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY -- REPLACED WITH A-52518 CLUSTER -
1752518 CLUSTERCLUSTER
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
191395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
20NSS NOT SOLD SEPARATE, TUBE, IDLENOT SOLD SEPARATE, TUBE, IDLE
-
211395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
221395-5108 SHUTTER, THROTTLESHUTTER, THROTTLE
-
23NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTERNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER
-
24NSS NOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREWNOT SOLD SEPARATE, SPRING, IDLE ADJUSTMENT SCREW
-
251399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
26NSS NOT SOLD SEPARATE, NOZZLE, MAINNOT SOLD SEPARATE, NOZZLE, MAIN
-
271395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
281399-3794 JET, (.074), MAIN FUELJET, (.074), MAIN FUEL
-
281395-6207 JET, MAIN FUEL (.072) - STANDARDJET, MAIN FUEL (.072) - STANDARD
-
281395-6030 JET, MAIN FUEL (.070)JET, MAIN FUEL (.070)
-
281395-6029 JET, Main Fuel (.068)JET, Main Fuel (.068)
-
291395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
30NSS NOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREWNOT SOLD SEPARATE, GASKET, JET CHANNEL PLUG SCREW
-
31NSS NOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURNNOT SOLD SEPARATE, SPRING, THROTTLE SHAFT RETURN
-
321395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
33NSS NOT SOLD SEPARATE, PLUGNOT SOLD SEPARATE, PLUG
-
3427-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3511-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
-1395-879194024 GASKET SET (1 PER CARBURETOR)GASKET SET (1 PER CARBURETOR)
-
-1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
-27-85653A87 GASKET SETGASKET SET
-
-52106A1 VENTURI, PlasticVENTURI, Plastic
