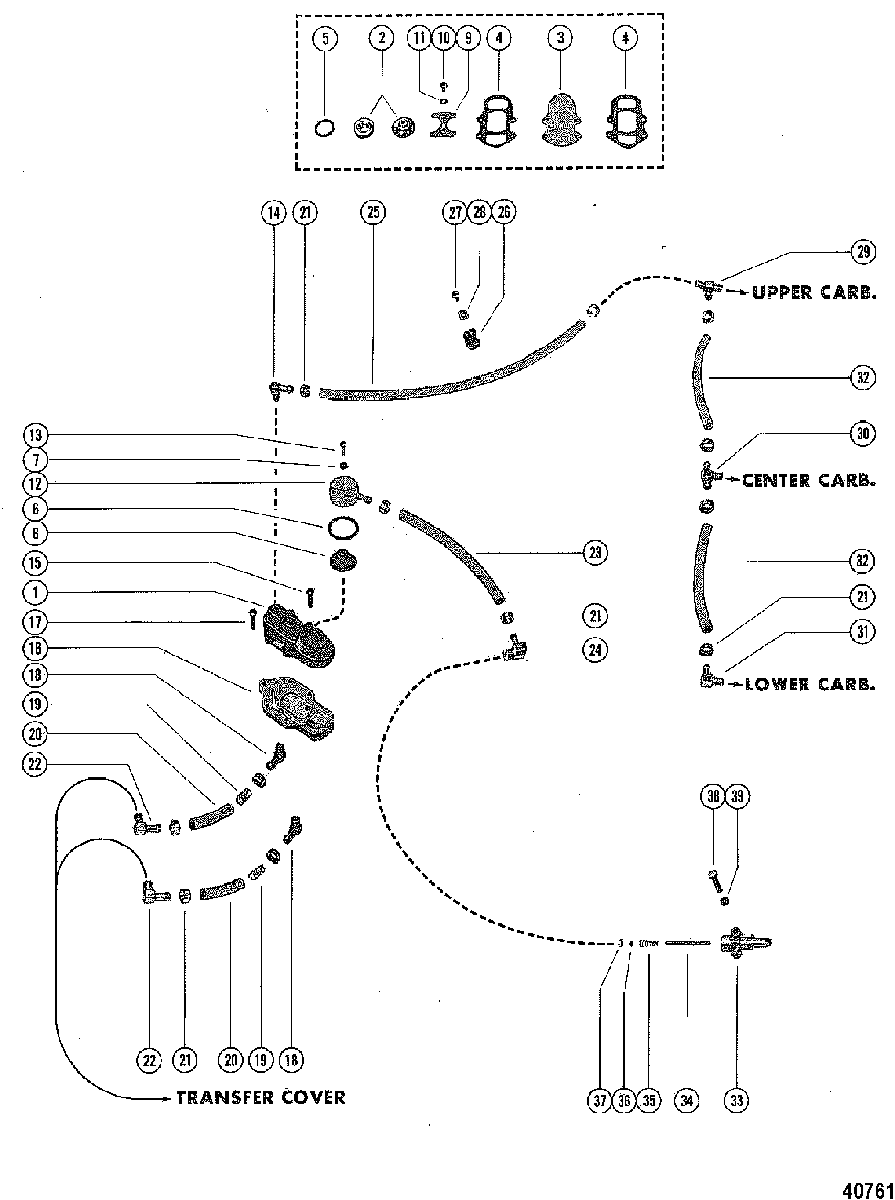

FUEL PUMP, USA-3761035/Aus.-8014005/Canada-7025598 and Up для Mercury - 1150 8008665 THRU 8051949

  • №
    Артикул
    Название
  • 1
    66530A2 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-30430A7 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A1 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, GASKET, DIAPHRAGM
    NOT SOLD SEPARATE, GASKET, DIAPHRAGM
  • 5
    NSS NOT SOLD SEPARATE, GASKET, CHECK VALVE
    NOT SOLD SEPARATE, GASKET, CHECK VALVE
  • 6
    25-35480 O-RING, COVER TO HOUSING
    O-RING, COVER TO HOUSING
  • 7
    NSS NOT SOLD SEPARATE, GASKET, NYLON - FILTER COVER SCREW
    NOT SOLD SEPARATE, GASKET, NYLON - FILTER COVER SCREW
  • 8
    35-59072 SCREEN, FILTER - INLET
    SCREEN, FILTER - INLET
  • 9
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 10
    10-43725 SCREW, RETAINER TO FUEL PUMP (1/4")
    SCREW, RETAINER TO FUEL PUMP (1/4")
  • 11
    13-26994 LOCKWASHER, RETAINER SCREW
    LOCKWASHER, RETAINER SCREW
  • 12
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 13
    10-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMP
    SCREW, (#10-32 x .580), COVER TO FUEL PUMP
  • 14
    22-19688 FITTING, FUEL OUTLET
    FITTING, FUEL OUTLET
  • 15
    10-66686 SCREW, (#10-32 x 1.00), FUEL PUMP TO BASE
    SCREW, (#10-32 x 1.00), FUEL PUMP TO BASE
  • 16
    66575 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 17
    10-66687 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 18
    22-19688 FITTING, PULSE LINE
    FITTING, PULSE LINE
  • 19
    24-68434 SPRING, PULSE LINE
    SPRING, PULSE LINE
  • 20
    32-8M0108355 LINE, Fuel (3-1/4")
    LINE, Fuel (3-1/4")
  • 21
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 22
    22-19688 FITTING, PULSE LINE TO TRANSFER COVER
    FITTING, PULSE LINE TO TRANSFER COVER
  • 23
    32-8M0108355 LINE, Fuel, ADAPTOR TO FUEL PUMP (6-3/4")
    LINE, Fuel, ADAPTOR TO FUEL PUMP (6-3/4")
  • 24
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 25
    32-8M0108355 LINE, Fuel, FUEL PUMP TO UPPER CARBURETOR (15-3/4")
    LINE, Fuel, FUEL PUMP TO UPPER CARBURETOR (15-3/4")
  • 26
    54-22627 CLIP, FUEL LINE ATTACHING
    CLIP, FUEL LINE ATTACHING
  • 27
    10-62568 SCREW, (#10-16 x .375), FUEL LINE CLIP
    SCREW, (#10-16 x .375), FUEL LINE CLIP
  • 28
    8M0084613 C WASHER, FUEL LINE CLIP SCREW
    C WASHER, FUEL LINE CLIP SCREW
  • 29
    22-66328 FITTING, TEE - UPPER CARBURETOR
    FITTING, TEE - UPPER CARBURETOR
  • 30
    22-64706001 TEE, TEE - CENTER CARBURETOR
    TEE, TEE - CENTER CARBURETOR
  • 31
    22-19688 FITTING, ELBOW - LOWER CARBURETOR
    FITTING, ELBOW - LOWER CARBURETOR
  • 32
    32-8M0108355 LINE, Fuel, CARBURETOR TO CARBURETOR (6-1/4")
    LINE, Fuel, CARBURETOR TO CARBURETOR (6-1/4")
  • 33
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    ADAPTOR, CHECK UNIT (FUEL LINE)
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 33
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    ADAPTOR, CHECK UNIT (FUEL LINE)
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
  • 34
    30185Q3 STEM, CHECK UNIT ADAPTOR
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    STEM, CHECK UNIT ADAPTOR
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 34
    23069 STEM, CHECK UNIT ADAPTOR
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    STEM, CHECK UNIT ADAPTOR
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
  • 35
    24-30189 SPRING, ADAPTOR STEM
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    SPRING, ADAPTOR STEM
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 35
    24-23067T SPRING, ADAPTOR STEM
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    SPRING, ADAPTOR STEM
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
  • 36
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 37
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 38
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL
    (1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    SCREW, ADAPTOR TO BOTTOM COWL
    (1-3/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 38
    10-88488 SCREW, ADAPTOR TO BOTTOM COWL
    (3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    SCREW, ADAPTOR TO BOTTOM COWL
    (3-1/4") SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • 38
    10-69029 SCREW, (.250-28 x 1.750), ADAPTOR TO BOTTOM COWL
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
    SCREW, (.250-28 x 1.750), ADAPTOR TO BOTTOM COWL
    SN# USA-4112635/Australia-8027115/Canada-7047258 & Up
  • 39
    11-20184 NUT, (1/4-28)
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
    NUT, (1/4-28)
    SN# USA-4112634/Australia-8027114/Canada-7047257 & Below
  • -
    27-85653A87 GASKET SET
    GASKET SET
