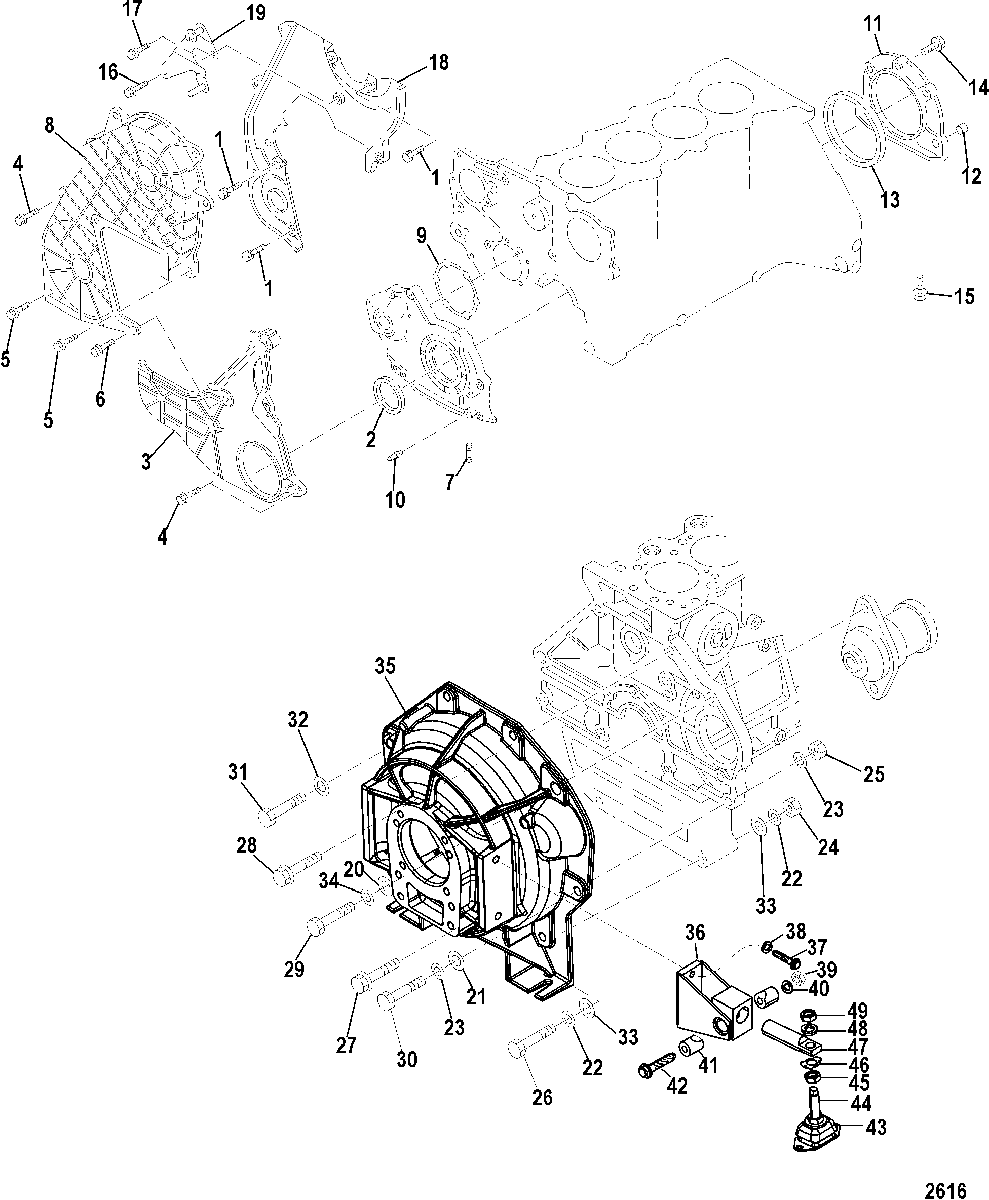

Timing Cover and Flywheel Housing(INBOARD) для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    10-882313 SCREW, (M6 x 16), Cover
    SCREW, (M6 x 16), Cover
  • 2
    25-882714 SEAL, Oil, Crankshaft, Front
    SEAL, Oil, Crankshaft, Front
  • 3
    882458 COVER, Timing, Lower
    COVER, Timing, Lower
  • 4
    10-882292 SCREW, (M6 x 18), Flange, Timing Cover
    SCREW, (M6 x 18), Flange, Timing Cover
  • 5
    10-882374 SCREW, (M6 x 40), Timing Cover
    SCREW, (M6 x 40), Timing Cover
  • 6
    10-882296 SCREW, (M6 x 45), Flange, Timing Cover
    SCREW, (M6 x 45), Flange, Timing Cover
  • 7
    16-882715 STUD
    STUD
  • 8
    882459 COVER, Timing, Upper
    COVER, Timing, Upper
  • 9
    27-882382001 GASKET, Oil Pump
    GASKET, Oil Pump
  • 10
    882370 POINTER, Timing
    POINTER, Timing
  • 11
    882602 RETAINER, Crankshaft
    RETAINER, Crankshaft
  • 12
    882394 PIN, Dowel
    PIN, Dowel
  • 13
    25-882402 SEAL, Oil, Crankshaft
    SEAL, Oil, Crankshaft
  • 14
    10-882379 SCREW, (M6 x 22), Flange
    SCREW, (M6 x 22), Flange
  • 15
    10-882629 SCREW, (M6 x 20), Allen
    SCREW, (M6 x 20), Allen
  • 16
    10-882291 SCREW, (M6 x 12), Flange
    SCREW, (M6 x 12), Flange
  • 17
    10-882313 SCREW, (M6 x 16), Flange
    SCREW, (M6 x 16), Flange
  • 18
    882512 COVER, Dust
    COVER, Dust
  • 19
    882444 BRACKET, Tensioner Spring
    BRACKET, Tensioner Spring
  • 20
    12-882344 WASHER
    WASHER
  • 21
    12-882643 WASHER
    WASHER
  • 22
    13-882636 LOCKWASHER
    LOCKWASHER
  • 23
    13-882637 LOCKWASHER
    LOCKWASHER
  • 24
    11-882725 NUT, (M10)
    NUT, (M10)
  • 25
    11-882664 NUT, (M12)
    NUT, (M12)
  • 26
    10-882665 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 27
    10-882328 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 28
    10-882726 SCREW, (M12 x 55)
    SCREW, (M12 x 55)
  • 29
    10-882622 SCREW, (M12 x 55)
    SCREW, (M12 x 55)
  • 30
    10-882622 SCREW, (M12 x 55)
    SCREW, (M12 x 55)
  • 31
    10-882666 SCREW, (M12 x 35), With Lockwasher
    SCREW, (M12 x 35), With Lockwasher
  • 32
    12-882344 WASHER
    WASHER
  • 33
    10-882624 SCREW, (M10 x 28)
    SCREW, (M10 x 28)
  • 34
    13-882637 LOCKWASHER
    LOCKWASHER
  • 35
    891784T HOUSING, Flywheel
    (Inboard)
    HOUSING, Flywheel
    (Inboard)
  • 36
    52158A20 BRACKET, Rear Mount Assembly
    BRACKET, Rear Mount Assembly
  • 37
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 38
    13-400258 LOCKWASHER, (M10) Stainless Steel
    LOCKWASHER, (M10) Stainless Steel
  • 39
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 40
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 41
    54-47528 CLAMP
    CLAMP
  • 42
    10-47724 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 43
    98323A6 BASE ASSEMBLY, Flywheel Housing
    BASE ASSEMBLY, Flywheel Housing
  • 44
    16-8M0022149 STUD, (.750-16 x Special)
    STUD, (.750-16 x Special)
  • 45
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 46
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 47
    66166A4 TRUNNION
    TRUNNION
  • 48
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 49
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
