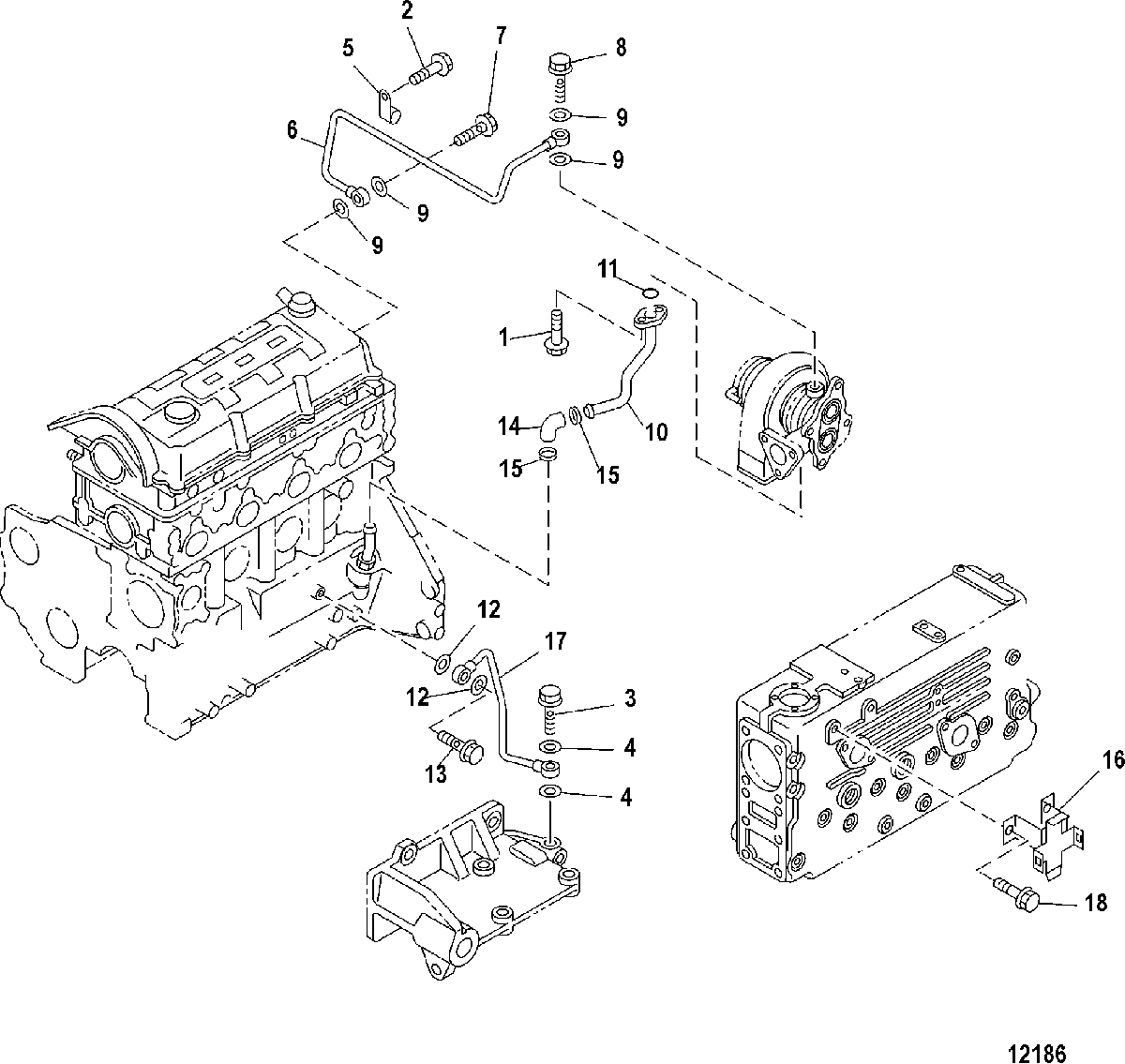

Oil and Vacuum Hoses для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    10-882508 SCREW
    SCREW
  • 2
    10-882291 SCREW, (M6 x 12), Flange
    SCREW, (M6 x 12), Flange
  • 3
    10-882428 SCREW, (M8 x 23)
    SCREW, (M8 x 23)
  • 4
    27-882651 GASKET, Oil Pipe
    GASKET, Oil Pipe
  • 5
    54-882648 CLIP, Oil Pipe
    CLIP, Oil Pipe
  • 6
    32-8M0090695 PIPE, Oil, Turbocharger Feed
    PIPE, Oil, Turbocharger Feed
  • 7
    10-882378 SCREW
    SCREW
  • 8
    10-882494 SCREW
    SCREW
  • 9
    27-882652 GASKET, Oil Pipe, Turbocharger
    GASKET, Oil Pipe, Turbocharger
  • 10
    882541 PIPE ASSEMBLY, Oil, Turbocharger
    PIPE ASSEMBLY, Oil, Turbocharger
  • 11
    27-882405 GASKET, Oil Pipe to Turbocharger
    GASKET, Oil Pipe to Turbocharger
  • 12
    27-882653 GASKET, Rocker Oil Feed Pipe
    GASKET, Rocker Oil Feed Pipe
  • 13
    10-882349 SCREW, (M12 x 24)
    SCREW, (M12 x 24)
  • 14
    32-882589 HOSE, Rubber, Turbocharger Return
    HOSE, Rubber, Turbocharger Return
  • 15
    54-882453 CLIP, Hose, Turbocharger Return
    CLIP, Hose, Turbocharger Return
  • 16
    882619 BRACKET, Oil Pipe
    BRACKET, Oil Pipe
  • 17
    32-8M0098320 PIPE, Oil, Cylinder Block to Vacuum Pump
    PIPE, Oil, Cylinder Block to Vacuum Pump
  • 18
    10-882322 SCREW, (M10 x 20), With Lockwasher
    SCREW, (M10 x 20), With Lockwasher
