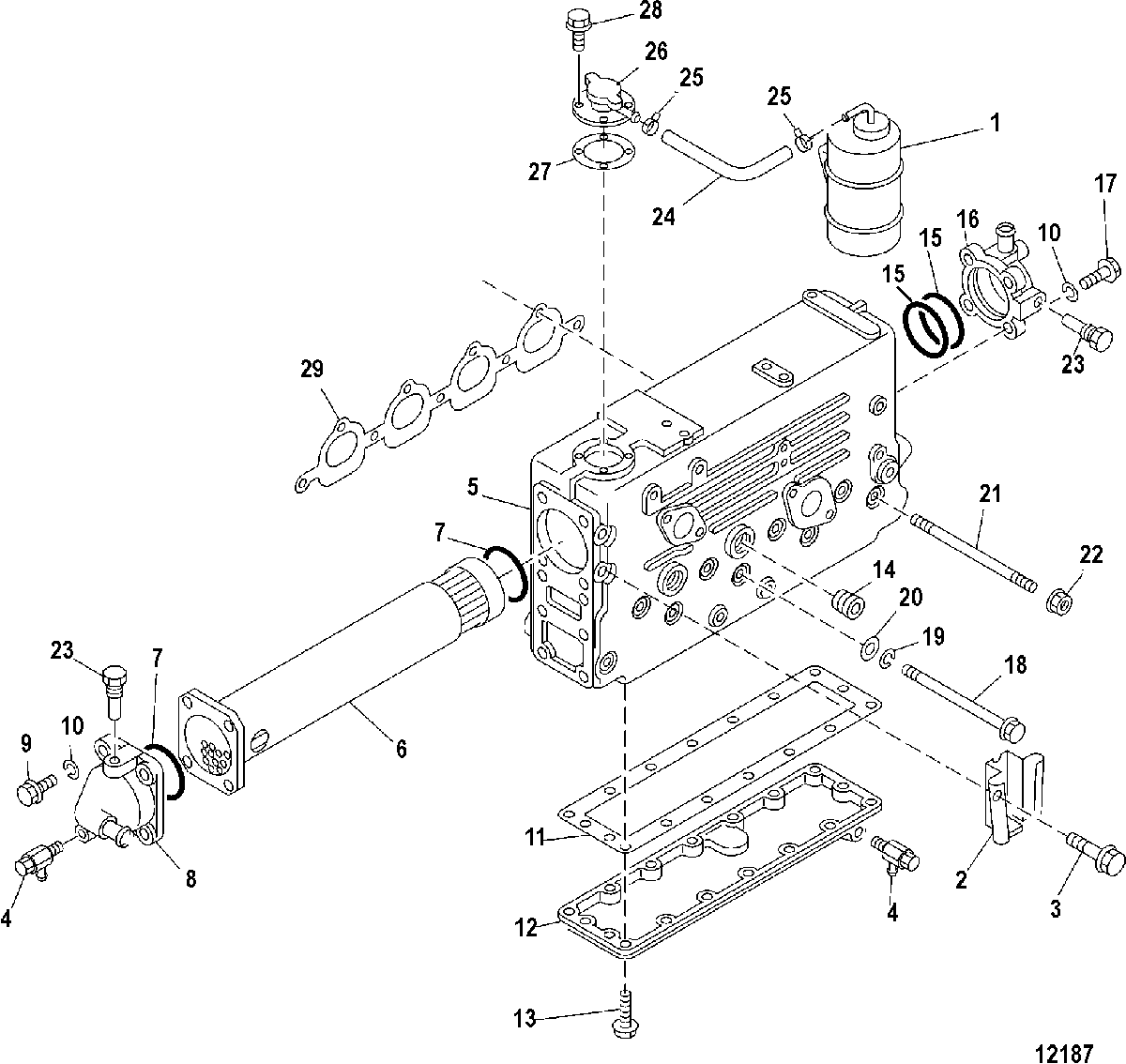

Heat Exchanger для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    882408 TANK, Surge, Radiator
    TANK, Surge, Radiator
  • 2
    882435 BRACKET, Reserve Tank
    BRACKET, Reserve Tank
  • 3
    10-882747 SCREW, (M8 x 12), Flange
    SCREW, (M8 x 12), Flange
  • 4
    882656 FITTING
    FITTING
  • -
    882716 EXCHANGER ASSEMBLY, Heat
    EXCHANGER ASSEMBLY, Heat
  • 5
    882537 CASE, Heat Exchanger
    CASE, Heat Exchanger
  • 6
    882535 CORE, Heat Exchanger
    CORE, Heat Exchanger
  • 7
    25-35029 GASKET, Cover to Case
    GASKET, Cover to Case
  • 8
    882536 COVER, Heat Exchanger
    COVER, Heat Exchanger
  • 9
    10-882615 SCREW
    SCREW
  • 10
    13-882617 LOCKWASHER
    LOCKWASHER
  • 11
    27-882538 GASKET, Heat Exchanger to Exhaust Manifold
    GASKET, Heat Exchanger to Exhaust Manifold
  • 12
    882695 COVER, Heat Exchanger
    COVER, Heat Exchanger
  • 13
    10-882616 SCREW, (M6 x 12), Flange
    SCREW, (M6 x 12), Flange
  • 14
    22-882612 FITTING, Taper
    FITTING, Taper
  • 15
    26-882348 SEAL, Cover to Case
    SEAL, Cover to Case
  • 16
    882581 COVER, Heat Exchanger
    COVER, Heat Exchanger
  • 17
    10-882614 SCREW
    SCREW
  • 18
    10-882358 SCREW, (M8 x 138)
    SCREW, (M8 x 138)
  • 19
    13-882635 LOCKWASHER
    LOCKWASHER
  • 20
    12-882645 WASHER
    WASHER
  • 21
    16-882359 STUD
    STUD
  • 22
    11-882330 NUT, (M8), Flange
    NUT, (M8), Flange
  • 23
    882283 BAR, Zinc
    BAR, Zinc
  • 24
    32-882285 HOSE, Rubber, Reserve to Heat Exchanger, Cut to (12 Inch)
    HOSE, Rubber, Reserve to Heat Exchanger, Cut to (12 Inch)
  • 25
    54-882391 CLIP, Rubber Hose
    CLIP, Rubber Hose
  • 26
    888749 CAP
    CAP
  • 27
    27-882610 GASKET, Heat Exchanger to Exhaust Manifold
    GASKET, Heat Exchanger to Exhaust Manifold
  • 28
    10-882291 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 29
    27-882517 GASKET, Exhaust Manifold to Cylinder Head
    GASKET, Exhaust Manifold to Cylinder Head
