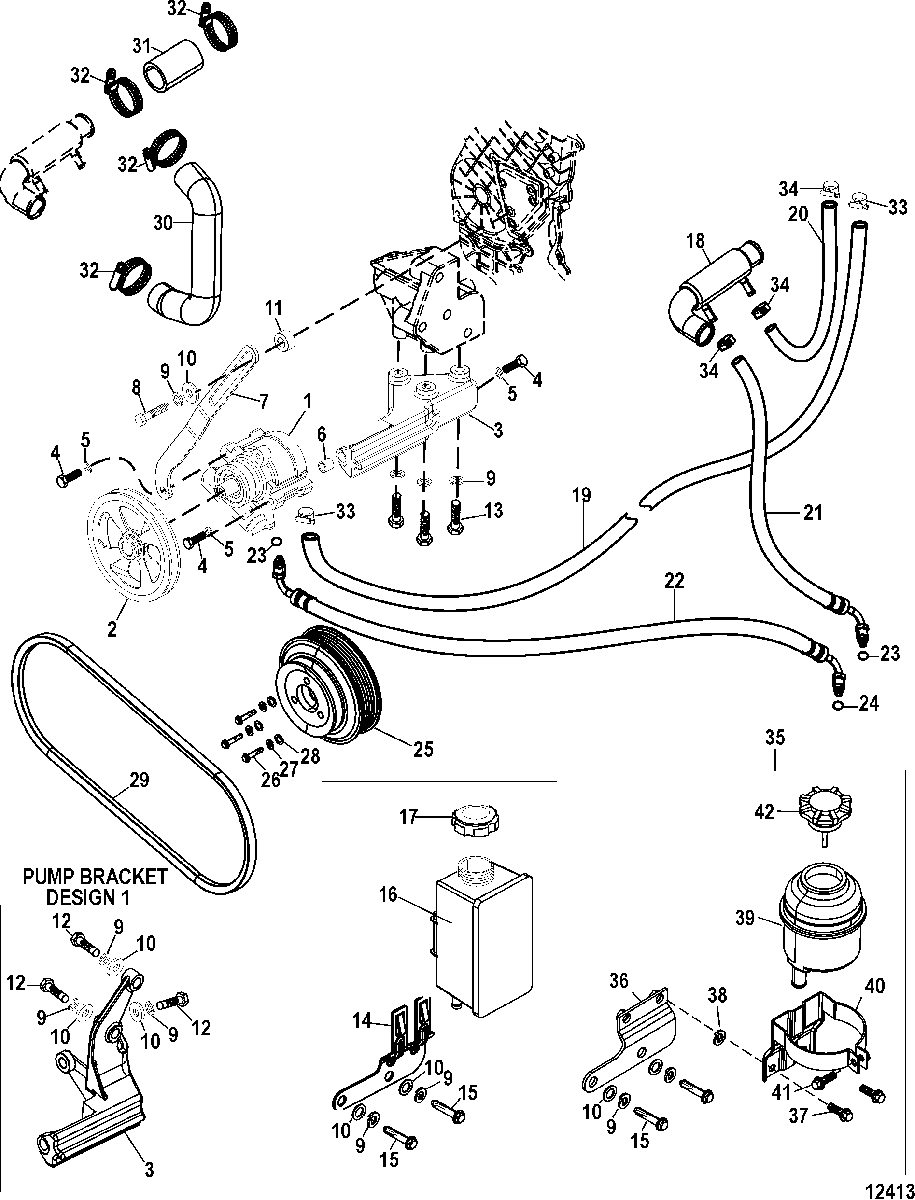

Power Steering Components для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up
-
№АртикулНазвание
-
1864255T PUMP, Power SteeringPUMP, Power Steering
-
2864253T PULLEY, Power SteeringPULLEY, Power Steering
-
3863399T BRACKET, Pump, Pump
(Design 1)BRACKET, Pump, Pump
(Design 1) -
3863761T BRACKET, Pump
(Design 2)BRACKET, Pump
(Design 2) -
410-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
513-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
623-864181 SPACERSPACER
-
7863401 BRACKET, Pump Tension
Design 1)BRACKET, Pump Tension
Design 1) -
7864341 BRACKET, Pump Tension
(Design 2)BRACKET, Pump Tension
(Design 2) -
810-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
913-400248 LOCKWASHER, (M10)LOCKWASHER, (M10)
-
1012-25909 WASHER, (.406 x .812 x .065)WASHER, (.406 x .812 x .065)
-
1123-863400 SPACERSPACER
-
1210-4000383 SCREW, (M10 x 70)SCREW, (M10 x 70)
-
1310-81516265 BOLT, (M10 x 65)BOLT, (M10 x 65)
-
14863749 BRACKET, ReservoirBRACKET, Reservoir
-
1510-40001192 SCREW, (M10 x 25)SCREW, (M10 x 25)
-
16865264A06 RESERVOIR ASSEMBLY, Power Steering FluidRESERVOIR ASSEMBLY, Power Steering Fluid
-
17806216 CAP, Power Steering ReservoirCAP, Power Steering Reservoir
-
18863939T COOLER, Power SteeringCOOLER, Power Steering
-
1932-86280833 HOSE, Power Steering Reservoir to PumpHOSE, Power Steering Reservoir to Pump
-
2032-8M0062341 HOSE, (53.00 Inches Bulk), Power Steering Cooler to ReservoirHOSE, (53.00 Inches Bulk), Power Steering Cooler to Reservoir
-
2132-80622136 HOSE, Power Steering Cylinder to CoolerHOSE, Power Steering Cylinder to Cooler
-
2132-865390068 HOSE, Return, Power Steering Cylinder to Cooler
(With Quick Connect)HOSE, Return, Power Steering Cylinder to Cooler
(With Quick Connect) -
2232-80622216 HOSE, Power Steering Pump to Steering CylinderHOSE, Power Steering Pump to Steering Cylinder
-
2232-866690 HOSE, Pressure, Power Steering Pump to Steering Cylinder
(With Quick Connect)HOSE, Pressure, Power Steering Pump to Steering Cylinder
(With Quick Connect) -
2325-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
2425-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
25864254T PULLEY, Water PumpPULLEY, Water Pump
-
2610-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2812-4002316 WASHERWASHER
-
2957-862054Q BELT, Power Steering PumpBELT, Power Steering Pump
-
3032-863819 HOSEHOSE
-
3132-863047 HOSEHOSE
-
3254-815504220 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
3354-815504210 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
3454-815504105 CLAMP, Worm Gear (11-18 mm), HoseCLAMP, Worm Gear (11-18 mm), Hose
-
35865264A05 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
36865767 BRACKET, Power SteeringBRACKET, Power Steering
-
3710-4000351 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
3813-400257 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
39865264A06 RESERVOIR KITRESERVOIR KIT
-
40865262A02 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
4010-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4110-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
428M0121097 CAP, Oil Reservoir - BrownCAP, Oil Reservoir - Brown
