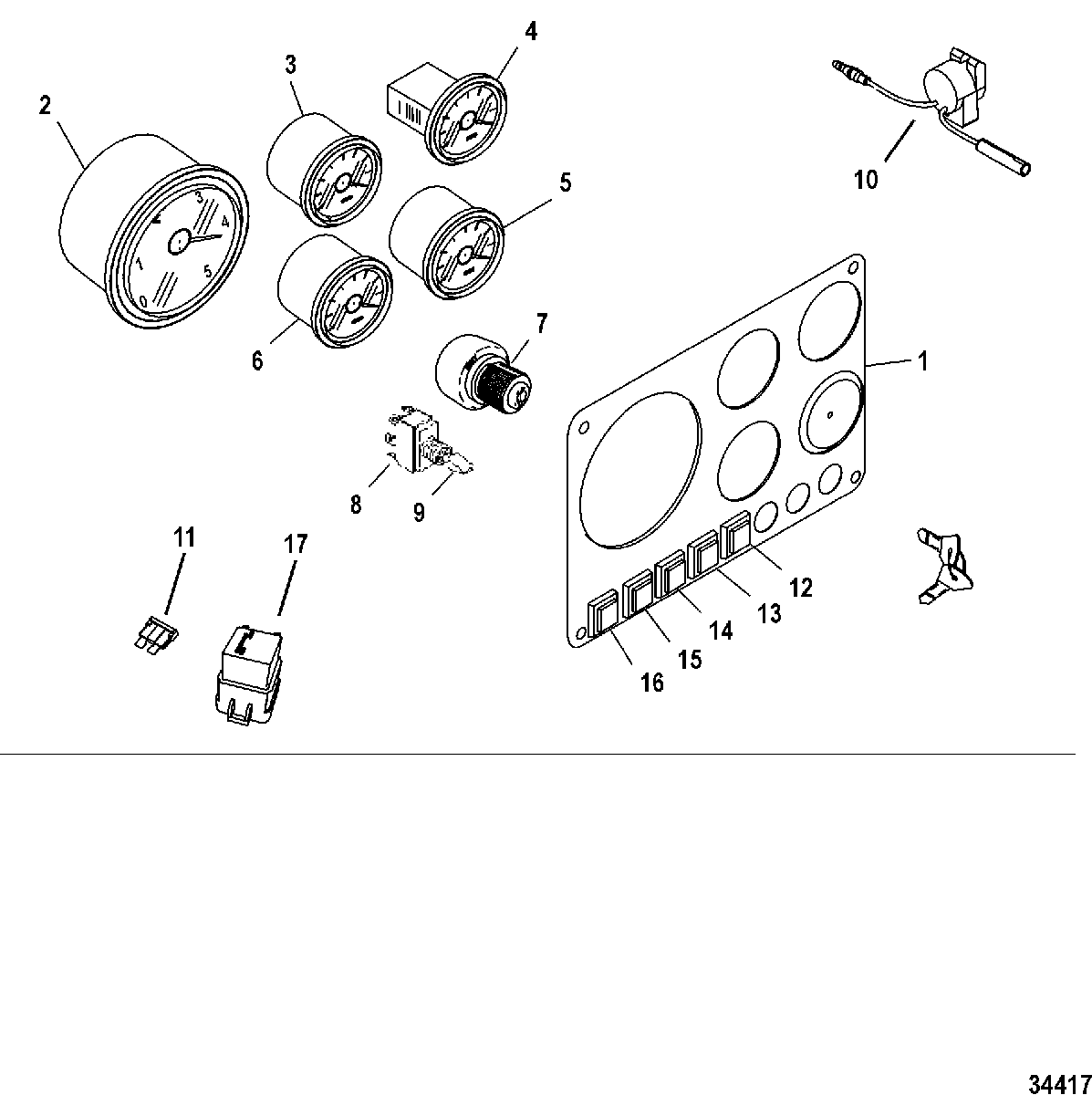

Instrument Panel Kit Components, Full для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • -
    881801A1 INSTRUMENT PANEL KIT, Full
    INSTRUMENT PANEL KIT, Full
  • 1
    889044 PANEL
    PANEL
  • 2
    79-882848 TACHOMETER
    TACHOMETER
  • 3
    79-882853 OIL PRESSURE GAUGE
    OIL PRESSURE GAUGE
  • 4
    79-882854 COOLANT TEMPERATURE GAUGE
    COOLANT TEMPERATURE GAUGE
  • 5
    79-882851 TRIM GAUGE
    TRIM GAUGE
  • 6
    79-882852 VOLTAGE GAUGE
    VOLTAGE GAUGE
  • 7
    87-805678 KEY SWITCH
    KEY SWITCH
  • 8
    87-889037 SWITCH, Toggle
    SWITCH, Toggle
  • 9
    889039 COVER, Switch
    COVER, Switch
  • 10
    84-8M3001068 ALARM ASSEMBLY, Audio Warning
    ALARM ASSEMBLY, Audio Warning
  • 11
    88-812619 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 12
    889032 COVER, Water in Fuel
    COVER, Water in Fuel
  • 13
    889033 COVER, Water Temperature
    COVER, Water Temperature
  • 14
    889034 COVER, Glow Plug
    COVER, Glow Plug
  • 15
    889035 COVER, Oil Pressure
    COVER, Oil Pressure
  • 16
    889036 COVER, Battery Volt
    COVER, Battery Volt
  • 17
    889043 RELAY
    RELAY
  • NS
    88-889026 BULB, (12V 3W)
    BULB, (12V 3W)
  • NS
    889027 BULB SOCKET
    BULB SOCKET
  • NS
    84-881745 DIODE
    DIODE
  • NS
    84-889045 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • NS
    NSS NOT SOLD SEPARATE, Light Body
    NOT SOLD SEPARATE, Light Body
  • NS
    889031 COVER, Base
    COVER, Base
  • NS
    87-889038 SWITCH, Push Button
    SWITCH, Push Button
  • NS
    889040 COVER, Switch
    COVER, Switch
  • NS
    889041 COVER, Switch
    COVER, Switch
