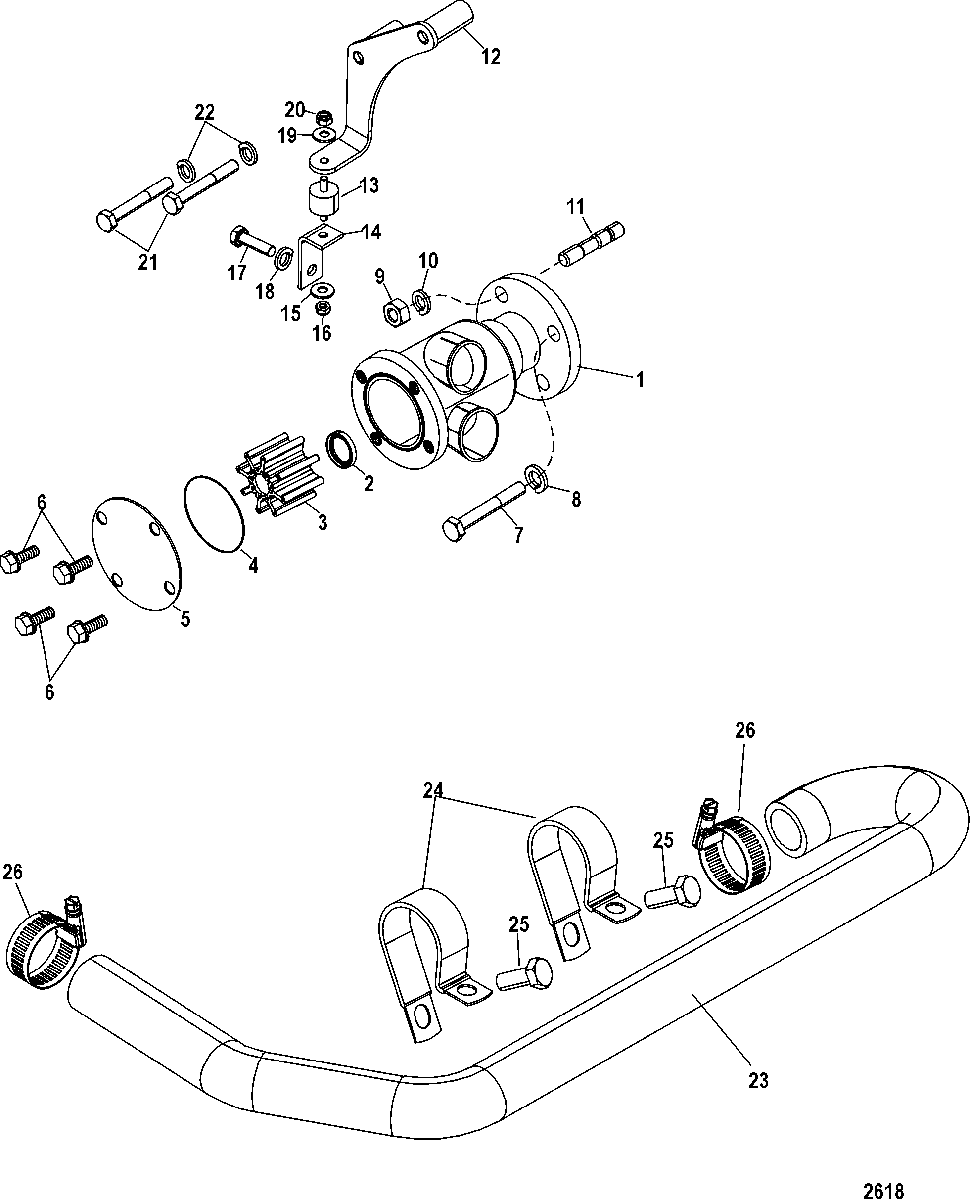

Seawater Pump(INBOARD) для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    8M0118337 PUMP ASSEMBLY, Seawater
    (INBOARD)
    PUMP ASSEMBLY, Seawater
    (INBOARD)
  • 2
    NSS NOT SOLD SEPARATE
    (Component Only)
    NOT SOLD SEPARATE
    (Component Only)
  • 3
    NSS NOT SOLD SEPARATE, Impeller
    (Component Only) (Order 891801 Repair Kit)
    NOT SOLD SEPARATE, Impeller
    (Component Only) (Order 891801 Repair Kit)
  • 4
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 5
    NSS NOT SOLD SEPARATE, Cover Plate
    (Component Only) (Order 891802 Repair Kit)
    NOT SOLD SEPARATE, Cover Plate
    (Component Only) (Order 891802 Repair Kit)
  • 6
    NSS NOT SOLD SEPARATE, Screw
    (Component Only)
    NOT SOLD SEPARATE, Screw
    (Component Only)
  • 7
    10-4000354 SCREW, (M8 x 30), Seawater Pump Flange
    SCREW, (M8 x 30), Seawater Pump Flange
  • 8
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 9
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 10
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 11
    16-891794 STUD, Seawater Pump Flange
    STUD, Seawater Pump Flange
  • 12
    891795 BRACKET, Seawater Pump
    BRACKET, Seawater Pump
  • 13
    891797 MOUNT, Seawater Pump Bracket
    MOUNT, Seawater Pump Bracket
  • 14
    891796 BRACKET
    BRACKET
  • 15
    12-4002316 WASHER
    WASHER
  • 16
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 17
    10-4000351 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 18
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 19
    12-4002316 WASHER
    WASHER
  • 20
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 21
    10-4000383 SCREW, (M10 x 70)
    SCREW, (M10 x 70)
  • 22
    13-400258 LOCKWASHER, (M10) Stainless Steel
    LOCKWASHER, (M10) Stainless Steel
  • 23
    32-891798 HOSE, Pump to Intercooler
    HOSE, Pump to Intercooler
  • 24
    54-816398 CLIP, Hose
    CLIP, Hose
  • 25
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 26
    54-815504224 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • NS
    46-891800 REPAIR KIT, Seawater Pump Service
    REPAIR KIT, Seawater Pump Service
  • NS
    47-891801 REPAIR KIT, Seawater Pump Impeller
    REPAIR KIT, Seawater Pump Impeller
  • NS
    891802 REPAIR KIT, Seawater Pump Cover
    REPAIR KIT, Seawater Pump Cover
