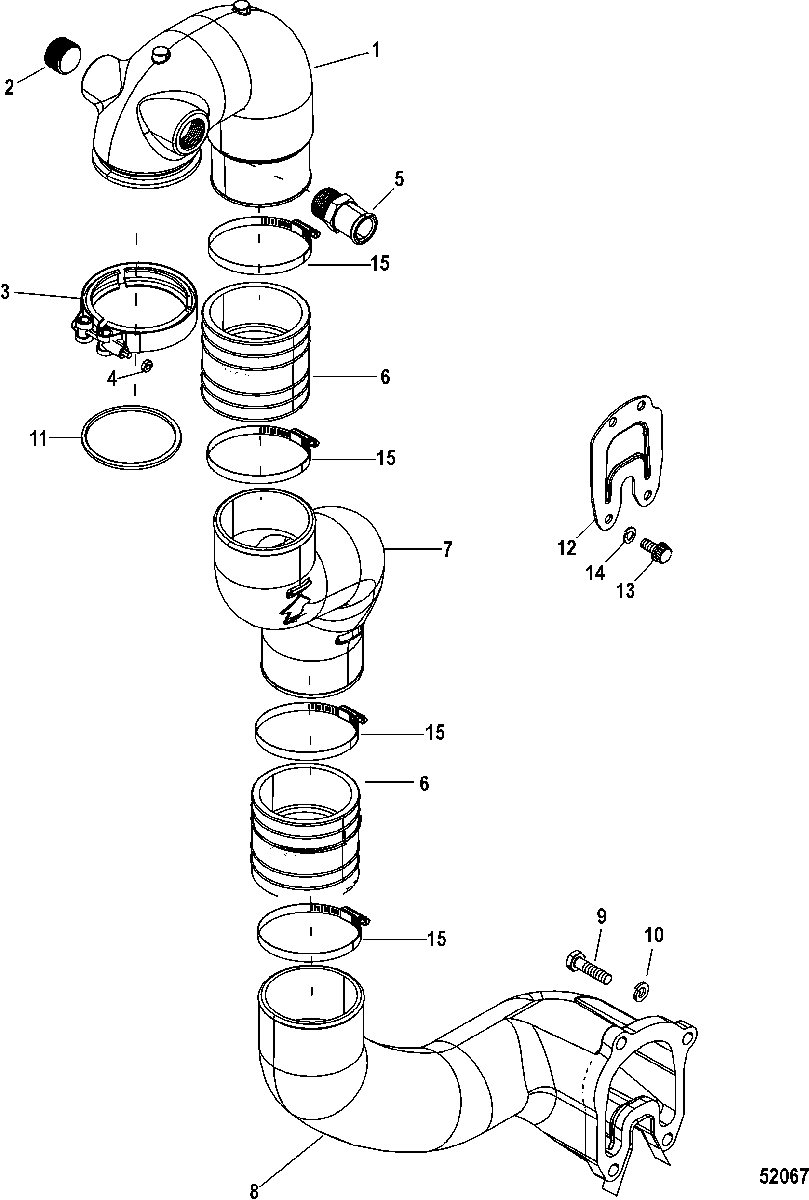

Exhaust Components для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    863008A2 ELBOW, Exhaust
    ELBOW, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    54-864148A01 CLAMP
    CLAMP
  • 4
    11-864290 NUT
    NUT
  • 5
    22-866725 FITTING, Straight, Hose
    FITTING, Straight, Hose
  • 6
    53821T BELLOWS, Exhaust
    BELLOWS, Exhaust
  • 7
    863011T1 PIPE, Exhaust ( Intermediate)
    PIPE, Exhaust ( Intermediate)
  • 8
    863012T1 PIPE, Exhaust ( Bull Horn )
    PIPE, Exhaust ( Bull Horn )
  • 9
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 10
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    27-817089 GASKET, Exhaust Elbow
    GASKET, Exhaust Elbow
  • 12
    861776A2 PLATE KIT
    PLATE KIT
  • 13
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 14
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 15
    54-815504256 CLAMP, Worm Gear
    CLAMP, Worm Gear
