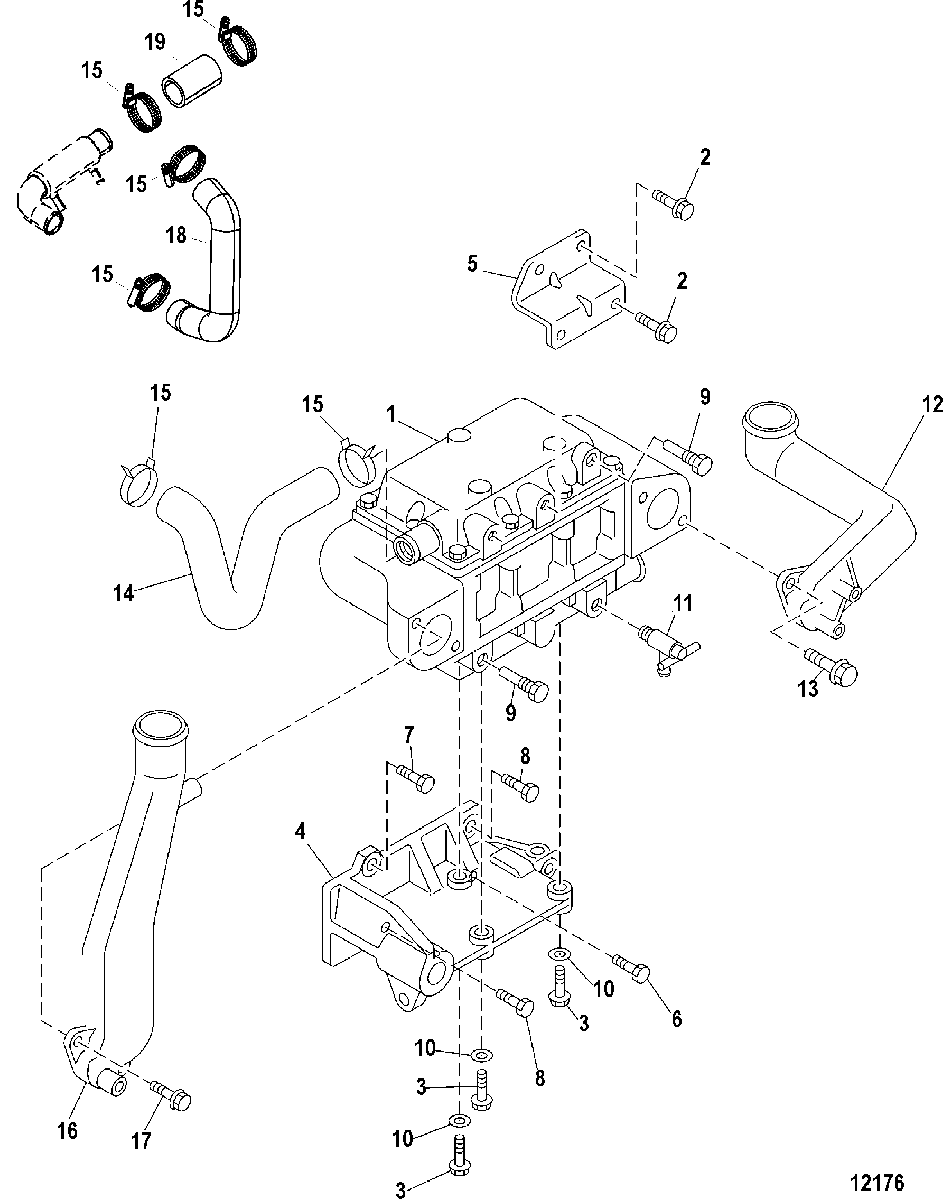

Air Cooler для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    882566 COOLER ASSEMBLY, Air
    COOLER ASSEMBLY, Air
  • 2
    10-882323 SCREW, (M10 x 22), With Lockwasher
    SCREW, (M10 x 22), With Lockwasher
  • 3
    10-882324 BOLT
    BOLT
  • 4
    882560 BRACKET, Air Cooler
    BRACKET, Air Cooler
  • 5
    882561 BRACKET, Air Cooler
    BRACKET, Air Cooler
  • 6
    10-882419 SCREW, (M10 x 40)
    SCREW, (M10 x 40)
  • 7
    10-882623 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 8
    10-882625 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 9
    882283 BAR, Zinc
    BAR, Zinc
  • 10
    13-882640 LOCKWASHER
    LOCKWASHER
  • 11
    882656 FITTING
    FITTING
  • 12
    882558 DUCT, Intake, Turbo
    DUCT, Intake, Turbo
  • 13
    10-882674 SCREW, (M8 x 75)
    SCREW, (M8 x 75)
  • 14
    32-882573 HOSE
    (Without Power Steering)
    HOSE
    (Without Power Steering)
  • 15
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 16
    882551 DUCT, Air
    DUCT, Air
  • 17
    10-882325 SCREW, (M8 x 25), With Lockwasher
    SCREW, (M8 x 25), With Lockwasher
  • 18
    32-863819 HOSE, Fluid Cooler to Heat Exchanger
    HOSE, Fluid Cooler to Heat Exchanger
  • 19
    32-863047 HOSE, Air Cooler to Fluid Cooler
    HOSE, Air Cooler to Fluid Cooler
