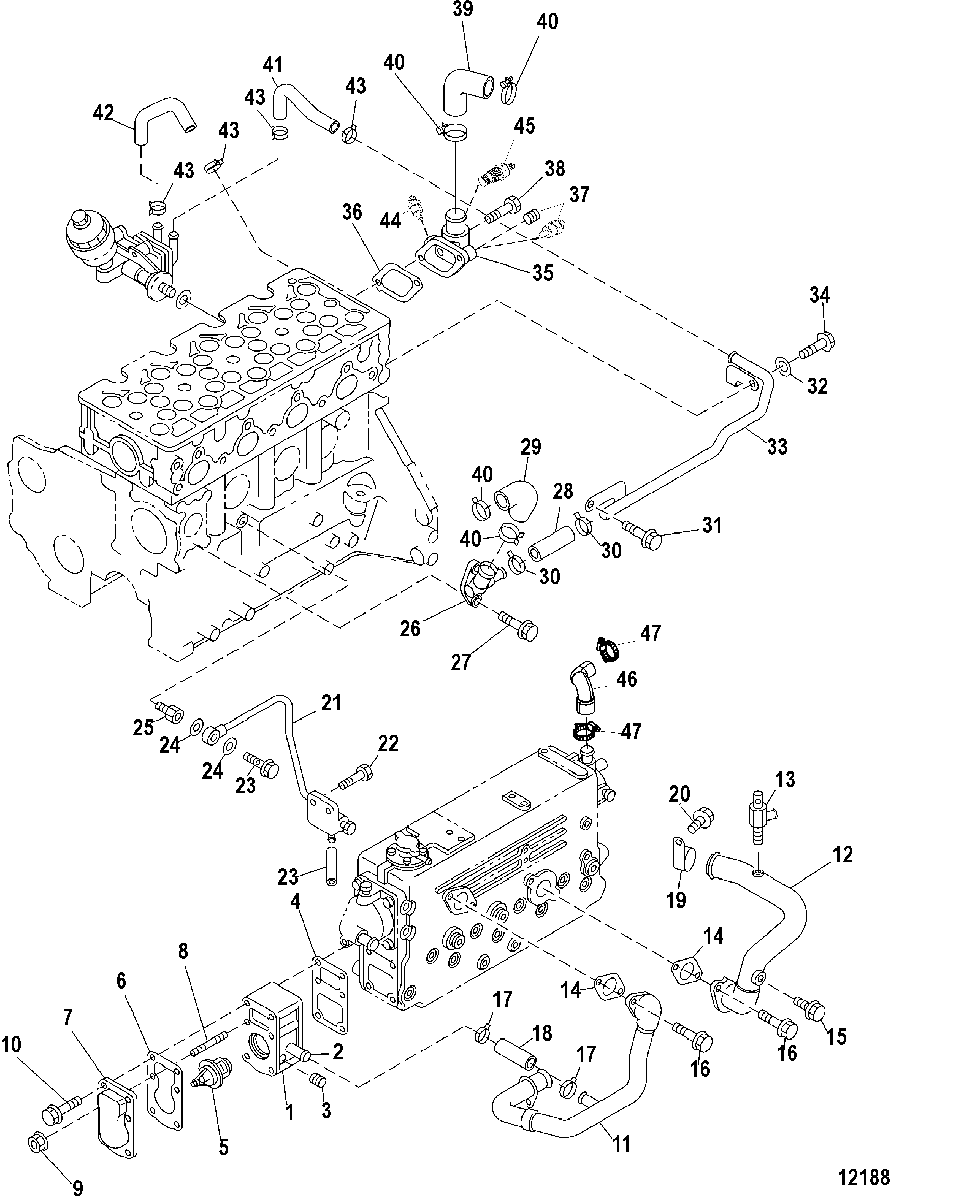

Thermostat and Housing для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    882601 HOUSING, Thermostat
    HOUSING, Thermostat
  • 2
    882381 FITTING, Bypass
    FITTING, Bypass
  • 3
    22-882398 FITTING
    FITTING
  • 4
    27-882585 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 5
    882604 THERMOSTAT
    THERMOSTAT
  • 6
    27-882546 GASKET, Cover, Thermostat Housing
    GASKET, Cover, Thermostat Housing
  • 7
    882598 COVER, Thermostat Housing
    COVER, Thermostat Housing
  • 8
    16-882657 STUD, (M10x85 L=100)
    STUD, (M10x85 L=100)
  • 9
    11-882330 NUT, (M8), Flange
    NUT, (M8), Flange
  • 10
    10-882305 SCREW, (M8 x 80)
    SCREW, (M8 x 80)
  • 11
    32-882607 PIPE ASSEMBLY, Water
    PIPE ASSEMBLY, Water
  • 12
    32-8M0090694 PIPE ASSEMBLY, Water
    PIPE ASSEMBLY, Water
  • 13
    882656 FITTING
    FITTING
  • 14
    27-882594 GASKET
    GASKET
  • 15
    882656 FITTING, Drain
    FITTING, Drain
  • 16
    10-882300 SCREW, (M8 x 20), Flange
    SCREW, (M8 x 20), Flange
  • 17
    54-882453 CLIP, Hose
    CLIP, Hose
  • 18
    32-882431 HOSE, Bypass
    HOSE, Bypass
  • 19
    54-882353 CLIP, Water Pipe
    CLIP, Water Pipe
  • 20
    10-882299 SCREW, (M8 x 16), Flange
    SCREW, (M8 x 16), Flange
  • 21
    32-882550 PIPE, Water Drain
    PIPE, Water Drain
  • 22
    10-882299 SCREW, (M8 x 16), Flange
    SCREW, (M8 x 16), Flange
  • 23
    10-882349 SCREW, (M12 x 24), Eye
    SCREW, (M12 x 24), Eye
  • 24
    27-882653 GASKET, Water Pipe
    GASKET, Water Pipe
  • 25
    22-882731 ADAPTOR
    ADAPTOR
  • 26
    882597 ADAPTOR, Water Fitting
    ADAPTOR, Water Fitting
  • 27
    10-882315 SCREW, (M8 x 20), Flange
    SCREW, (M8 x 20), Flange
  • 28
    32-882287 HOSE, Water
    (Cut to 2-3/8 Inch)
    HOSE, Water
    (Cut to 2-3/8 Inch)
  • 29
    32-882608 HOSE
    HOSE
  • 30
    54-882453 CLIP, Hose
    CLIP, Hose
  • 31
    10-882309 SCREW, (M10 x 16), Flange, With Lockwasher
    SCREW, (M10 x 16), Flange, With Lockwasher
  • 32
    12-882645 WASHER
    WASHER
  • 33
    32-882549 PIPE, Water
    PIPE, Water
  • 34
    10-882747 SCREW, (M8 x 12), Flange
    SCREW, (M8 x 12), Flange
  • 34
    10-882319 SCREW, (M8 x 16), With Lockwasher
    SCREW, (M8 x 16), With Lockwasher
  • 35
    882548 ADAPTOR, Water Fitting
    ADAPTOR, Water Fitting
  • 36
    27-882463 GASKET, Adaptor Fitting
    GASKET, Adaptor Fitting
  • 37
    22-882347 FITTING, (NPT .125), Rubber
    FITTING, (NPT .125), Rubber
  • 37
    891830 SENSOR, Water Temp (Glow Plug)
    SENSOR, Water Temp (Glow Plug)
  • 38
    10-882303 SCREW, (M8 x 60), Flange
    SCREW, (M8 x 60), Flange
  • 39
    32-882588 HOSE, Water
    HOSE, Water
  • 40
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 41
    32-882576 HOSE, Oil Cooler to Water Pipe
    HOSE, Oil Cooler to Water Pipe
  • 42
    32-882587 HOSE, Thermo Valve to Oil Cooler
    HOSE, Thermo Valve to Oil Cooler
  • 43
    54-882453 CLIP, Hose
    CLIP, Hose
  • 44
    806490T SENDER
    SENDER
  • 44
    49734 SENDER (Dual Station)
    SENDER (Dual Station)
  • 45
    87-863639 SWITCH, Water Temperature
    SWITCH, Water Temperature
  • 46
    32-863196 HOSE
    HOSE
  • 47
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
