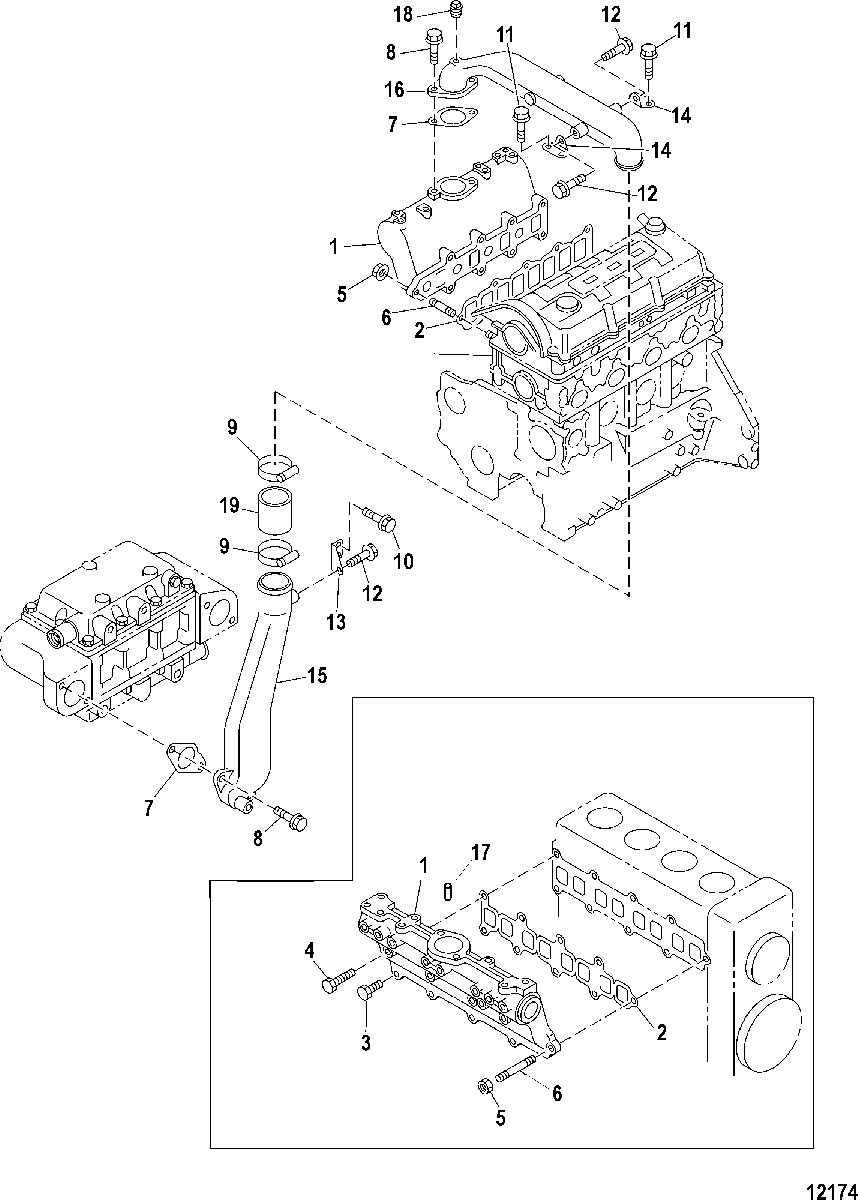

Intake Manifold для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    882553 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    27-882513 GASKET, Intake Manifold
    GASKET, Intake Manifold
  • 3
    10-882304 SCREW, (M8 x 70), Intake Manifold
    SCREW, (M8 x 70), Intake Manifold
  • 4
    10-882315 SCREW, (M8 x 20), Intake Maifold
    SCREW, (M8 x 20), Intake Maifold
  • 5
    11-882338 NUT
    NUT
  • 6
    16-882628 STUD, Intake Manifold
    STUD, Intake Manifold
  • 7
    27-882514 GASKET
    GASKET
  • 8
    10-882325 SCREW, (M8 x 25), With Lockwasher
    SCREW, (M8 x 25), With Lockwasher
  • 9
    54-8M0098323 CLAMP, Hose
    CLAMP, Hose
  • 10
    10-882319 SCREW, (M8 x 16), With Lockwasher
    SCREW, (M8 x 16), With Lockwasher
  • 11
    10-8M0115083 SCREW, (M8 x 18), With Lockwasher
    SCREW, (M8 x 18), With Lockwasher
  • 12
    10-882322 SCREW, (M10 x 20), With Lockwasher
    SCREW, (M10 x 20), With Lockwasher
  • 13
    882583 BRACKET
    BRACKET
  • 14
    882609 BRACKET
    BRACKET
  • 15
    882551 DUCT, Air
    (Lower)
    DUCT, Air
    (Lower)
  • 16
    882552 DUCT, Air
    (Upper)
    DUCT, Air
    (Upper)
  • 17
    17-882728 PIN
    PIN
  • 18
    22-882347 FITTING, (NPT .125), Plug
    FITTING, (NPT .125), Plug
  • 19
    32-882337 HOSE
    HOSE
  • NS
    10-882298 SCREW, (M8 x 12), Flange
    SCREW, (M8 x 12), Flange
