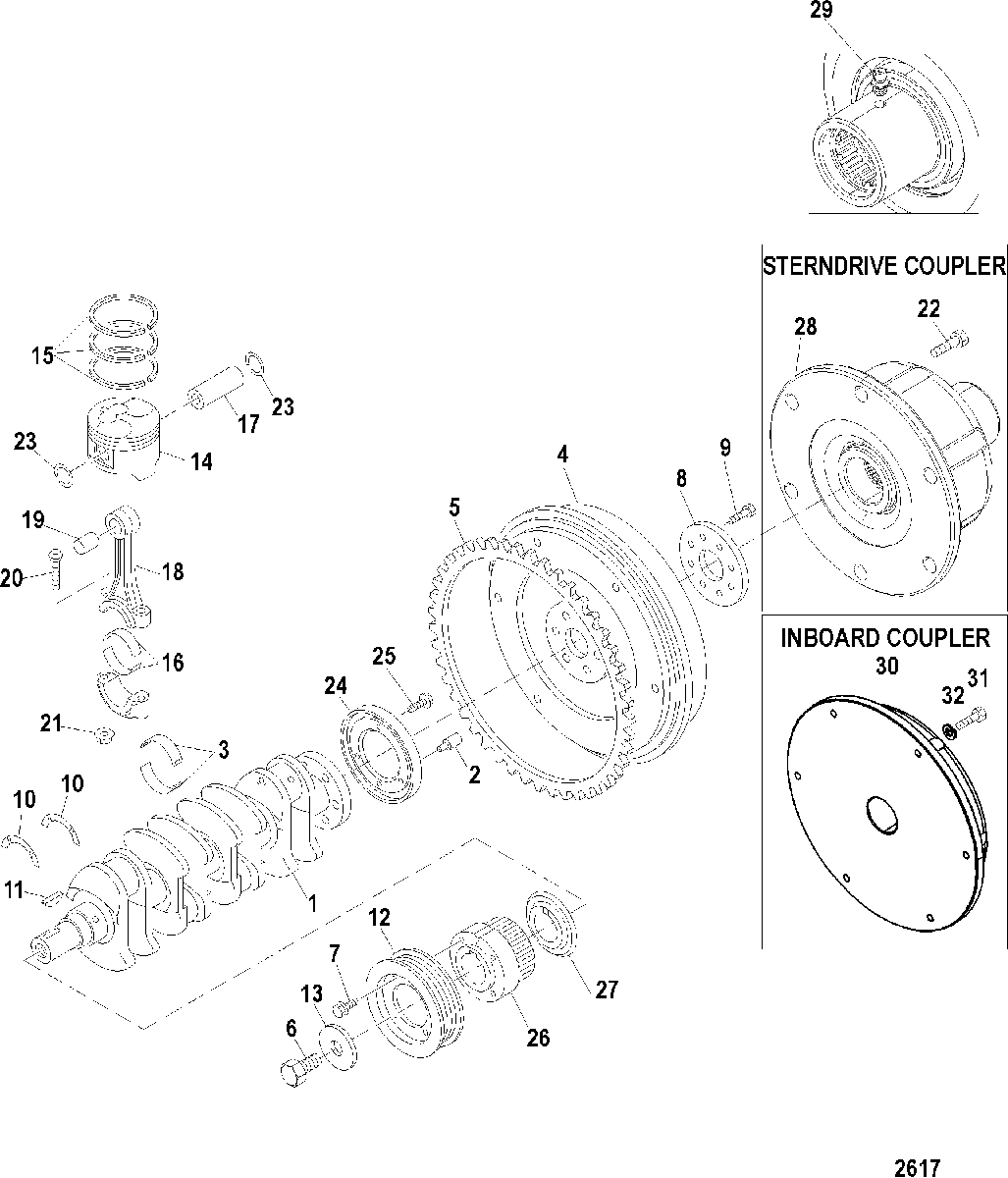

Crankshaft, PISTONS, AND FLYWHEEL для Mercruiser - CMD 1.7 MS 120 I/L4 8810800 & Up

  • №
    Артикул
    Название
  • 1
    891723001 CRANKSHAFT
    CRANKSHAFT
  • 2
    882717 PIN, Crankshaft
    PIN, Crankshaft
  • 3
    23-882411001 BEARING SET, Green
    BEARING SET, Green
  • 3
    23-882412001 BEARING SET, Brown
    BEARING SET, Brown
  • 3
    23-882413001 BEARING SET, Black
    BEARING SET, Black
  • 3
    23-882414001 BEARING SET, Blue
    BEARING SET, Blue
  • 4
    222-882539 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 5
    43-882363 GEAR, Ring, Flywheel
    GEAR, Ring, Flywheel
  • 6
    10-882663 SCREW, (M16 x 35), Pulley to Crankshaft
    SCREW, (M16 x 35), Pulley to Crankshaft
  • 7
    10-882318 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 8
    12-882429 WASHER, Flywheel
    WASHER, Flywheel
  • 9
    10-882723 SCREW, Flywheel
    SCREW, Flywheel
  • 10
    888746001 WASHER, Thrust, Crankshaft
    SN# 88121100 & Up
    WASHER, Thrust, Crankshaft
    SN# 88121100 & Up
  • 11
    882386001 KEY, Woodruff, Crankshaft
    KEY, Woodruff, Crankshaft
  • 12
    882724001 PULLEY, Crankshaft Damper
    PULLEY, Crankshaft Damper
  • 13
    12-882396 WAHSER, Crankshaft Pulley
    WAHSER, Crankshaft Pulley
  • 14
    795-882692001 PISTON, (Grade A)
    PISTON, (Grade A)
  • 14
    795-882693001 PISTON, (Grade B)
    PISTON, (Grade B)
  • 14
    795-882694001 PISTON, (Grade C)
    PISTON, (Grade C)
  • 15
    39-882416 RING SET, Piston
    RING SET, Piston
  • 16
    23-882504 BEARING SET, Brown, Connencting Rod
    Design-1 Locating Tab
    BEARING SET, Brown, Connencting Rod
    Design-1 Locating Tab
  • 16
    23-8M0119627 BEARING SET, Black, Connencting Rod
    Design-1 Locating Tab
    BEARING SET, Black, Connencting Rod
    Design-1 Locating Tab
  • 16
    23-882506 BEARING SET, Blue, Connencting Rod
    Design-1 Locating Tab
    BEARING SET, Blue, Connencting Rod
    Design-1 Locating Tab
  • 16
    23-8M0079336 BEARING SET, Yellow, Connencting Rod
    Design-2 Locating Tab
    BEARING SET, Yellow, Connencting Rod
    Design-2 Locating Tab
  • 16
    23-8M0079337 BEARING SET, Black, Connencting Rod
    Design-2 Locating Tab
    BEARING SET, Black, Connencting Rod
    Design-2 Locating Tab
  • 16
    23-8M0079338 BEARING SET, Pink, Connencting Rod
    Design-2 Locating Tab
    BEARING SET, Pink, Connencting Rod
    Design-2 Locating Tab
  • 17
    882406 PIN, Piston
    PIN, Piston
  • 18
    882527 ROD ASSEMBLY, Connecting
    Design-1 Locating Tab
    ROD ASSEMBLY, Connecting
    Design-1 Locating Tab
  • 18
    600-8M0079335 ROD ASSEMBLY, Connecting
    Design-2 Locating Tab
    ROD ASSEMBLY, Connecting
    Design-2 Locating Tab
  • 19
    23-882495 BUSHING, Connencting Rod
    BUSHING, Connencting Rod
  • 20
    10-882409 BOLT, (.375-24), Connencting Rod
    BOLT, (.375-24), Connencting Rod
  • 21
    11-882410 NUT, (.375-24 UNF), Connecting Rod
    NUT, (.375-24 UNF), Connecting Rod
  • 22
    10-882667 SCREW, (M10 x 25), With Lockwasher
    SCREW, (M10 x 25), With Lockwasher
  • 23
    882407 RING, Snap, Piston Pin
    RING, Snap, Piston Pin
  • 24
    882472 ROTOR, Crankshaft Sensor
    ROTOR, Crankshaft Sensor
  • 25
    10-882510 SCREW, Rotor
    SCREW, Rotor
  • 26
    882503 PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 27
    882387 PLATE, Guide, Timing Belt
    PLATE, Guide, Timing Belt
  • 28
    861839A3 COUPLER
    COUPLER
  • 29
    22-74036 FITTING, Grease
    FITTING, Grease
  • 30
    891783T FLYWHEEL, Inboard
    FLYWHEEL, Inboard
  • 31
    10-864917 SCREW, (M7 x 30)
    SCREW, (M7 x 30)
  • 32
    13-864918 LOCKWASHER
    LOCKWASHER
