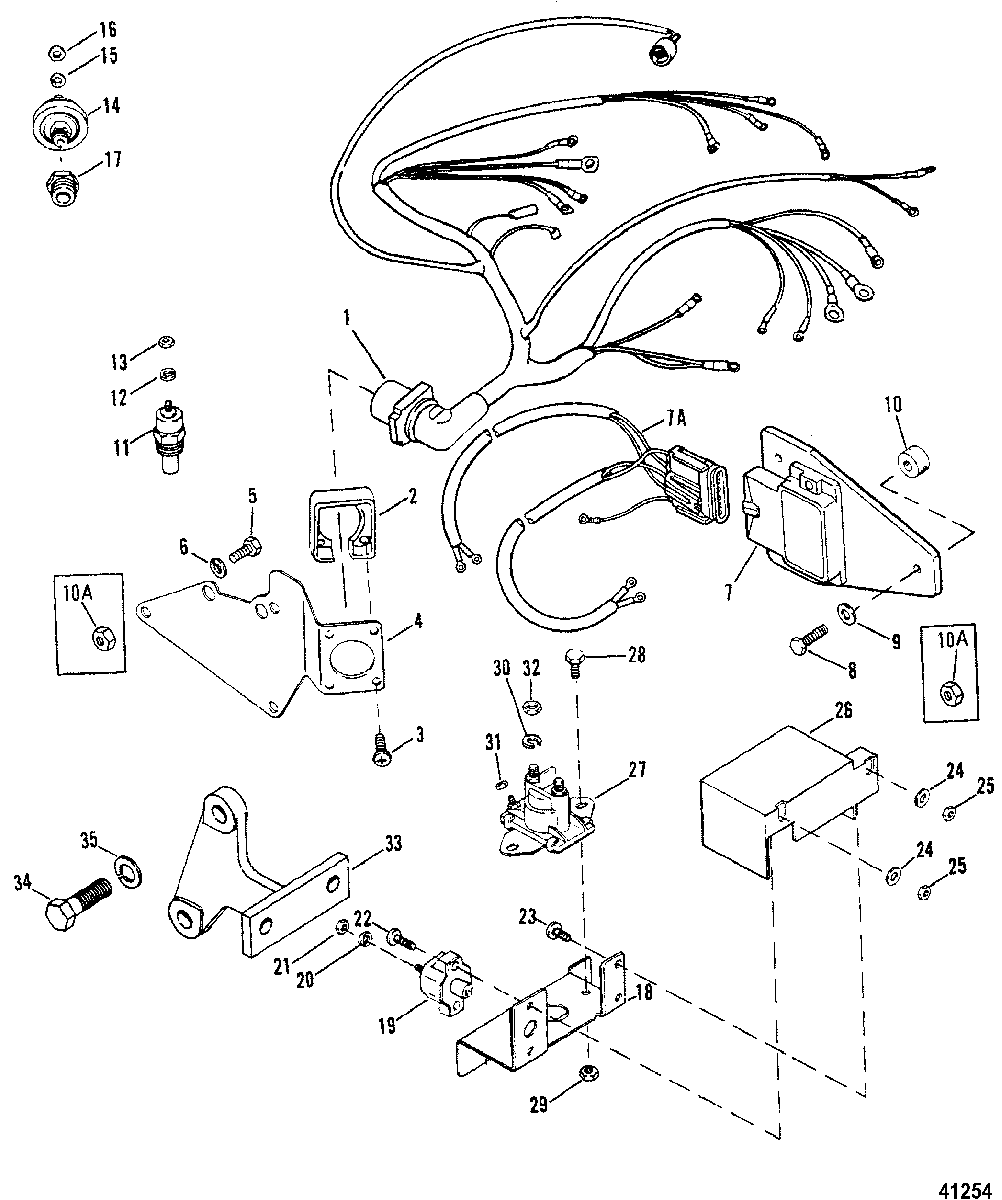

Wiring Harness, Electrical and Ignition для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    84-94111A13 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
    SCREW, (.250-20 x .620) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
    LOCKWASHER, (.250) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
  • 7
    15248A1 MODULE KIT, Ignition
    MODULE KIT, Ignition
  • 7A
    84-15275A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 8
    10-76630 SCREW, (.250-20 x 1.00)
    (Use with Cast Iron Exhaust Elbow)
    SCREW, (.250-20 x 1.00)
    (Use with Cast Iron Exhaust Elbow)
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
    LOCKWASHER, (.250) Stainless Steel
    (Use with Cast Iron Exhaust Elbow)
  • 10
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 10A
    11-64015 NUT, (.250-20)
    (Use With Stainless Steel Exhaust Elbow)
    NUT, (.250-20)
    (Use With Stainless Steel Exhaust Elbow)
  • 11
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 11
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 12
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 13
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 14
    8M0068784 SENDER
    SENDER
  • 14
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 17
    22-64013 FITTING, (.375 Male To .125 Female)
    FITTING, (.375 Male To .125 Female)
  • 18
    97163 BRACKET
    BRACKET
  • 19
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 20
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 21
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 22
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 23
    10-71405 SCREW, (#10-32 x .440)
    SCREW, (#10-32 x .440)
  • 24
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 25
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 26
    85-96819T INSULATOR
    INSULATOR
  • 27
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 28
    10-96138 SCREW, (1/4-28 x 5/8)
    SCREW, (1/4-28 x 5/8)
  • 29
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 31
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 32
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 33
    96940T BRACKET
    BRACKET
  • 34
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 34
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 35
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 35
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
