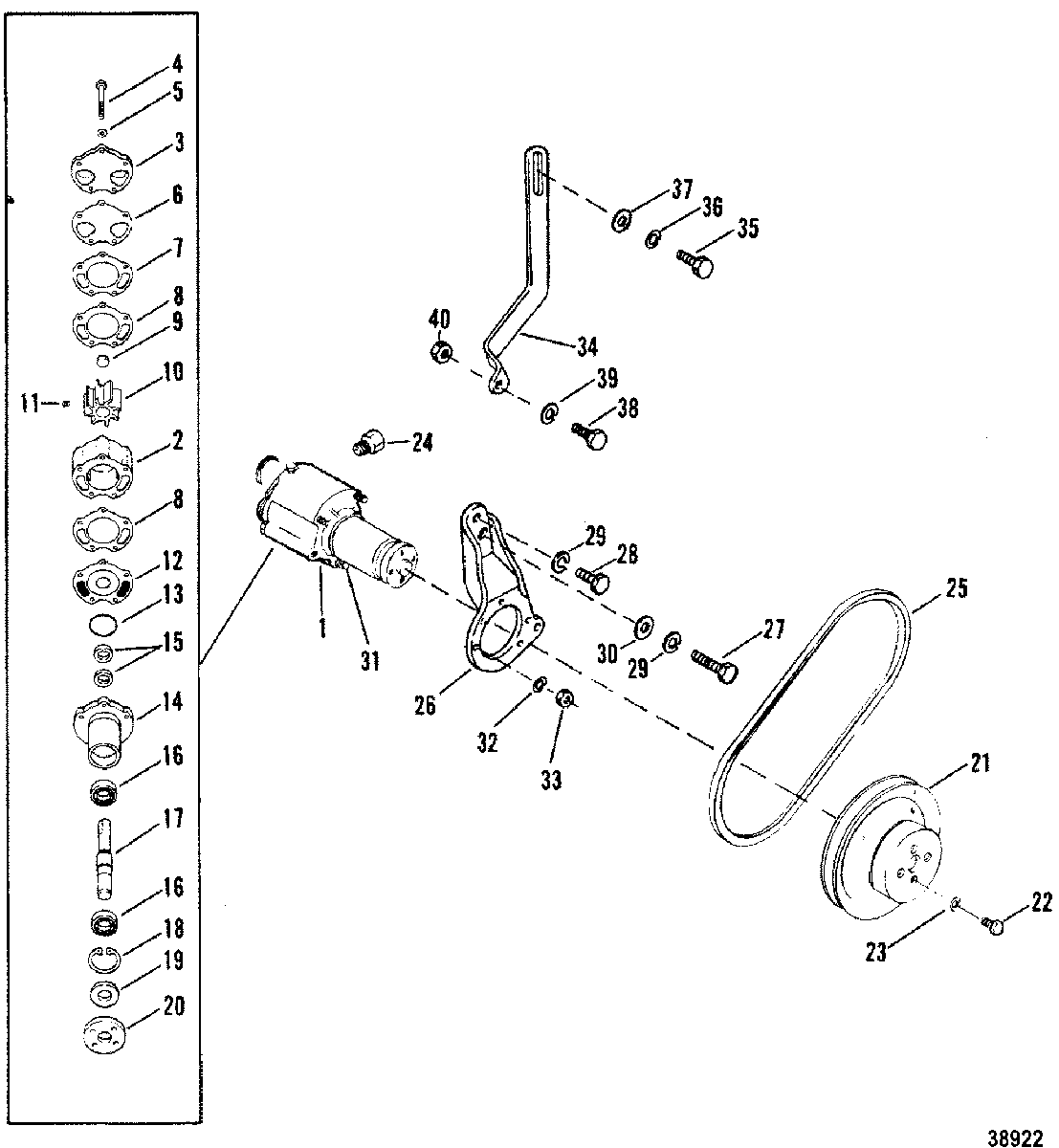

Sea Water Pump Assembly для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    46-807151A12 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 2
    46-72774A40 BODY ASSEMBLY, Sea Water - Complete
    BODY ASSEMBLY, Sea Water - Complete
  • 3
    87631A4 COVER
    COVER
  • 4
    10-73275 SCREW, (.312-18 x 2.88)
    SCREW, (.312-18 x 2.88)
  • 4
    10-99347 SCREW, (.312-18 x 3.75)
    SCREW, (.312-18 x 3.75)
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 6
    27-8052151 GASKET
    GASKET
  • 7
    94916 WEAR PLATE, OUTER
    WEAR PLATE, OUTER
  • 8
    27-94914 GASKET
    GASKET
  • 9
    19-59504 PLUG
    PLUG
  • 10
    47-59362T1 IMPELLER
    IMPELLER
  • 11
    28-8M0032837 KEY (EARLY MODELS)
    KEY (EARLY MODELS)
  • 12
    94576 WEAR PLATE, INNER
    WEAR PLATE, INNER
  • 13
    25-94288 QUAD RING
    QUAD RING
  • 14
    46-94913A2 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 15
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 16
    30-72961 BEARING, Ball
    BEARING, Ball
  • 17
    59501A1 SHAFT
    SHAFT
  • 18
    53-23720 RING, Retaining
    RING, Retaining
  • 19
    26-72785 SEAL
    SEAL
  • 20
    47530 HUB
    HUB
  • 21
    52822T PULLEY (CAST)
    PULLEY (CAST)
  • 22
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 23
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 24
    22-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
    PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
  • 25
    57-13457Q BELT (30")
    BELT (30")
  • 26
    15295T BRACKET (STAMPED)
    BRACKET (STAMPED)
  • 27
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 28
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 29
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 30
    12-27025 WASHER
    WASHER
  • 31
    10-99347 SCREW, (.312-18 x 3.75)
    SCREW, (.312-18 x 3.75)
  • 32
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 33
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 34
    15751T BRACE
    BRACE
  • 35
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 36
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 37
    12-74758 WASHER
    WASHER
  • 38
    10-35786 SCREW, (.375-24 x 1.00)
    SCREW, (.375-24 x 1.00)
  • 39
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 40
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
