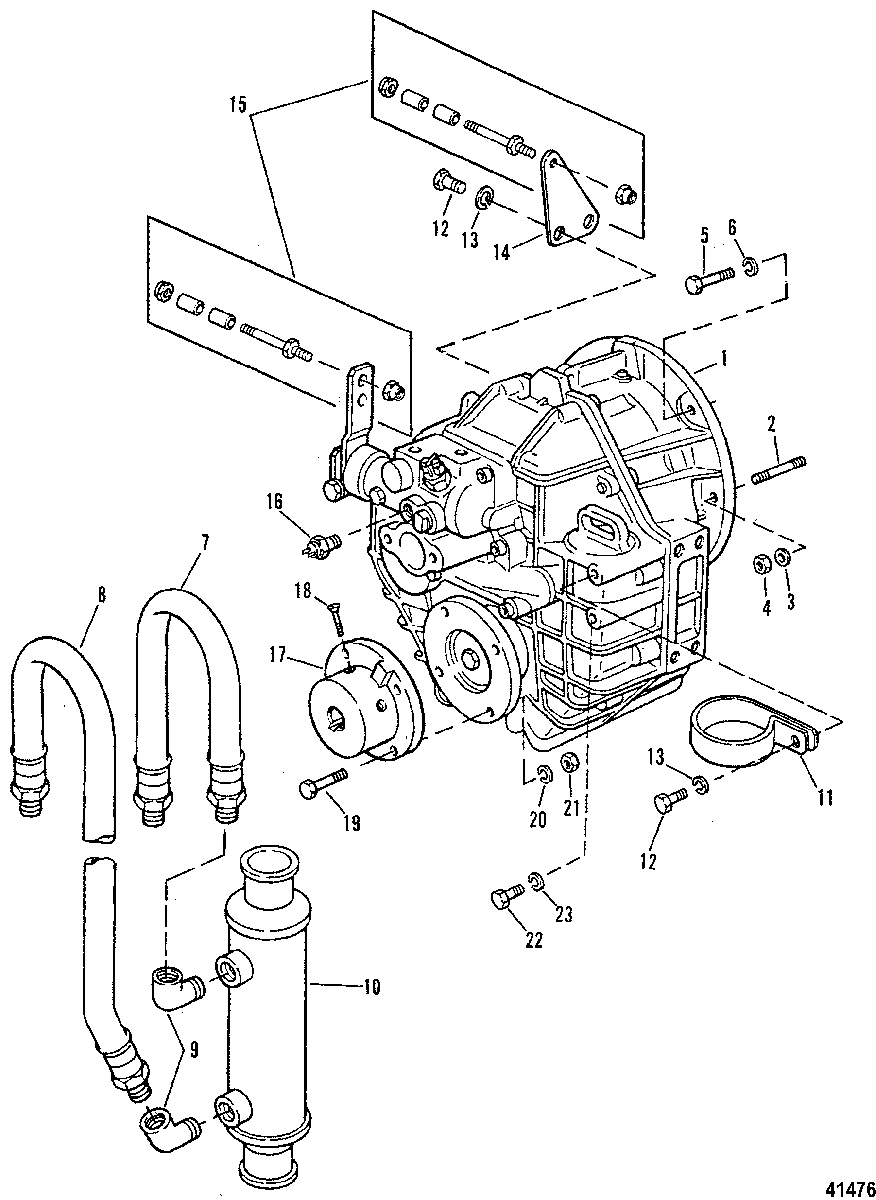

Transmission and Related Parts для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    Direct Drive
    TRANSMISSION, (1.5:1 Ratio)
    Direct Drive
  • 1
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    Direct Drive
    TRANSMISSION, (2.0:1 Ratio)
    Direct Drive
  • 1
    863744T4 TRANSMISSION, (2.5:1 Ratio)
    Direct Drive
    TRANSMISSION, (2.5:1 Ratio)
    Direct Drive
  • 1
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    V-Drive
    TRANSMISSION, (1.5:1 Ratio)
    V-Drive
  • 1
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    V-Drive
    TRANSMISSION, (2.0:1 Ratio)
    V-Drive
  • 1
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    V-Drive
    TRANSMISSION, (2.5:1 Ratio)
    V-Drive
  • 2
    16-8M0041668 STUD, (.437-14/.437-20 x 1.875)
    STUD, (.437-14/.437-20 x 1.875)
  • 3
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel
    WASHER, (.453 x .750 x .062) Stainless Steel
  • 4
    11-859116 NUT, (.4375-20)
    NUT, (.4375-20)
  • 5
    10-90084 SCREW, (.437-14 x 1.500)
    SCREW, (.437-14 x 1.500)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    32-8054782 HOSE
    HOSE
  • 8
    32-8054781 HOSE
    HOSE
  • 9
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 10
    63832A1 COOLER
    COOLER
  • 11
    54-18904 CLIP
    Old Design
    CLIP
    Old Design
  • 11
    65970T1 BRACKET
    New Design
    BRACKET
    New Design
  • 12
    10-4007520 SCREW, (M8 x 20)
    Old Design
    SCREW, (M8 x 20)
    Old Design
  • 12
    10-41408 SCREW, (#10-32 x 1.50)
    New Design
    SCREW, (#10-32 x 1.50)
    New Design
  • 13
    13-400247 LOCKWASHER, (M8)
    Old Design
    LOCKWASHER, (M8)
    Old Design
  • 14
    806238 BRACKET
    BRACKET
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    87-88031 SWITCH, Tempature
    SWITCH, Tempature
  • 17
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 17
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 17
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 17
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 17
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 17
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 17
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 18
    10-60171 SCREW, (.375-16 x 1.250), Flange
    SCREW, (.375-16 x 1.250), Flange
  • 18
    10-60169 SCREW, (.375-16 x .750), Flange
    SCREW, (.375-16 x .750), Flange
  • 19
    10-805159 SCREW, (.437-20 x 1.500), Flange
    SCREW, (.437-20 x 1.500), Flange
  • 20
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 22
    10-4007520 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 23
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
