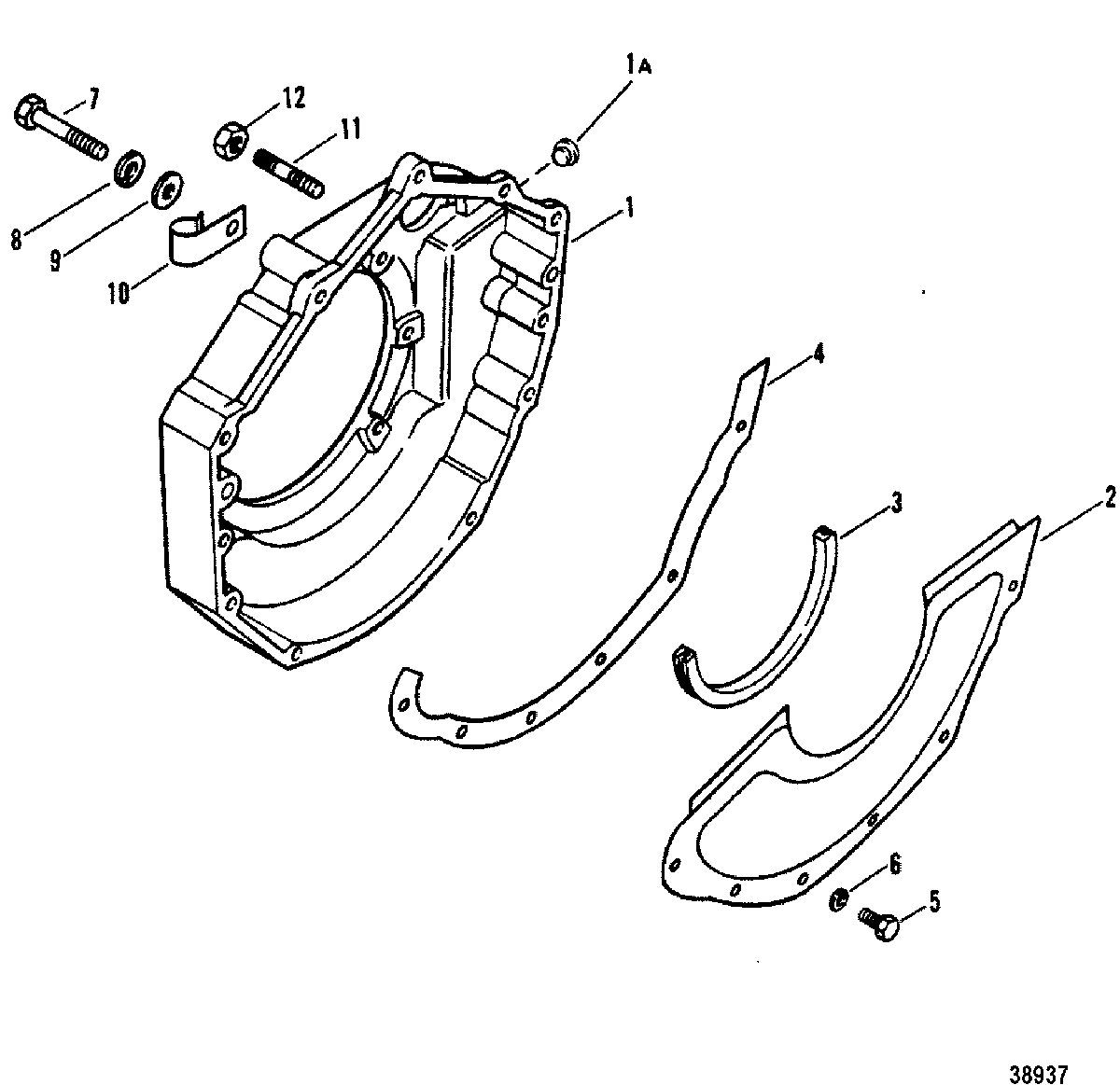

Flywheel Housing для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 1A
    19-12304 PLUG
    PLUG
  • 2
    818718A4 COVER ASSEMBLY
    COVER ASSEMBLY
  • 3
    87690 SEAL
    SEAL
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 5
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 5
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    12-20572 WASHER, (.390 x .750 x .093) (FOR SLOT)
    WASHER, (.390 x .750 x .093) (FOR SLOT)
  • 10
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 11
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 12
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
