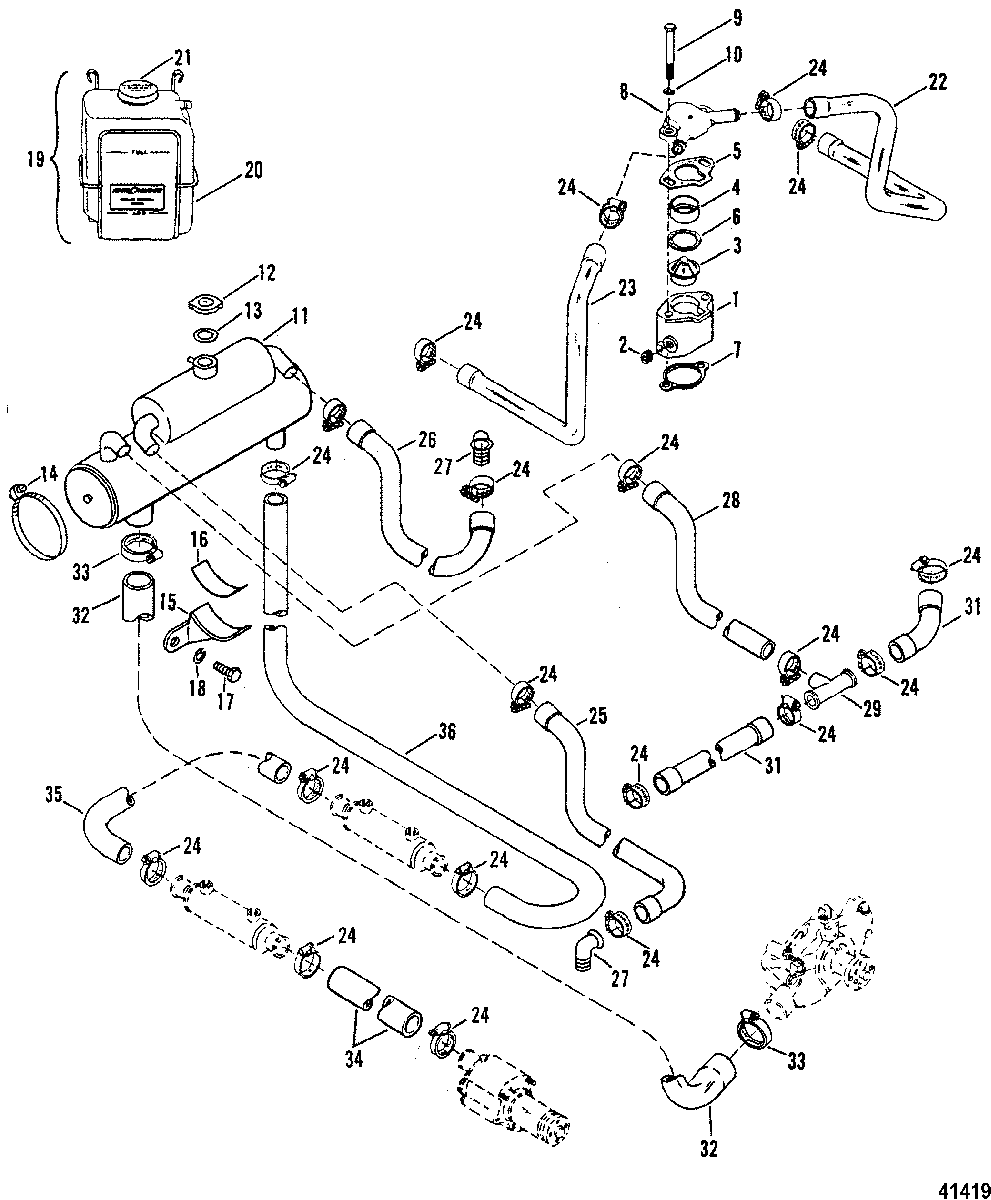

Closed Cooling System для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING, Thermostat
    HOUSING, Thermostat
  • 3
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 4
    23-47508T SLEEVE
    SLEEVE
  • 5
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 6
    27-47510 GASKET (MIDDLE)
    GASKET (MIDDLE)
  • 7
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 8
    8M0061068 COVER
    COVER
  • 9
    10-48115 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    44446A2 RESERVOIR ASSEMBLY (5")
    (See Parts Listed Below)
    RESERVOIR ASSEMBLY (5")
    (See Parts Listed Below)
  • 12
    36-55143Q CAP, Pressure
    CAP, Pressure
  • 13
    27-71614 GASKET
    GASKET
  • 14
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    44445A3 BRACKET
    BRACKET
  • 16
    772231 PAD
    PAD
  • 17
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 18
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 19
    71587A10 RECOVERY KIT, Coolant
    SEE NOTE 2
    RECOVERY KIT, Coolant
    SEE NOTE 2
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 20
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 21
    72058 CAP
    CAP
  • 22
    32-973852 HOSE, Cover to Manifold (PORT)
    HOSE, Cover to Manifold (PORT)
  • 23
    32-897301 HOSE, Cover to Manifold (STARBOARD)
    HOSE, Cover to Manifold (STARBOARD)
  • 24
    54-815504220 CLAMP, Worm Gear, Hose Attaching
    CLAMP, Worm Gear, Hose Attaching
  • 25
    32-19403 HOSE, Reservoir to Manifold (STBD.)
    HOSE, Reservoir to Manifold (STBD.)
  • 26
    32-19404 HOSE, Reservoir to Manifold (PORT)
    HOSE, Reservoir to Manifold (PORT)
  • 25/26
    32-8M0062614 HOSE, (48.00 Inches Bulk), Reservoir to Manifold (V-DRIVE)
    HOSE, (48.00 Inches Bulk), Reservoir to Manifold (V-DRIVE)
  • 27
    22-36305T ELBOW, (90 Degrees), Exhaust Manifold, Top
    ELBOW, (90 Degrees), Exhaust Manifold, Top
  • 27
    22-865159 FITTING, (45 Degrees), Exhaust Manifold, Top
    FITTING, (45 Degrees), Exhaust Manifold, Top
  • 28
    32-8M0062665 HOSE, (48.00 Inches Bulk), Tee to Reservoir
    HOSE, (48.00 Inches Bulk), Tee to Reservoir
  • 29
    22-55133 TEE
    TEE
  • 31
    32-8M0062614 HOSE, (48.00 Inches Bulk), Tee to Exhaust Elbow
    (Use With Cast Iron Exhaust Elbows)
    HOSE, (48.00 Inches Bulk), Tee to Exhaust Elbow
    (Use With Cast Iron Exhaust Elbows)
  • 31
    32-8174393 HOSE, Tee to Starboard Elbow
    (Use with Stainless Steel Exhaust Elbows)
    HOSE, Tee to Starboard Elbow
    (Use with Stainless Steel Exhaust Elbows)
  • 31
    32-8174381 HOSE, Tee to Port Elbow
    (Use with Stainless Steel Exhaust Elbows)
    HOSE, Tee to Port Elbow
    (Use with Stainless Steel Exhaust Elbows)
  • 32
    32-92838 HOSE, Reservoir to Water Pump
    HOSE, Reservoir to Water Pump
  • 33
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 34
    32-190801 HOSE, Water Pump to Oil Cooler
    Direct Drive
    HOSE, Water Pump to Oil Cooler
    Direct Drive
  • 34
    32-814750 HOSE, Water Pump to Oil Cooler
    V-Drive
    HOSE, Water Pump to Oil Cooler
    V-Drive
  • 35
    32-19081 HOSE, Oil Cooler to Oil Cooler
    Direct Drive
    HOSE, Oil Cooler to Oil Cooler
    Direct Drive
  • 35
    32-814749 HOSE, Oil Cooler to Oil Cooler
    V-Drive
    HOSE, Oil Cooler to Oil Cooler
    V-Drive
  • 36
    32-19226 HOSE, Oil Cooler to Reservoir
    HOSE, Oil Cooler to Reservoir
  • -
    22-36382 FITTING, (.250-18 x .62) Brass
    Part of the 5 Inch Reservoir Assembly
    FITTING, (.250-18 x .62) Brass
    Part of the 5 Inch Reservoir Assembly
  • -
    27-95688 GASKET, End Cover
    Part of the 5 Inch Reservoir Assembly
    GASKET, End Cover
    Part of the 5 Inch Reservoir Assembly
  • -
    95687 COVER, End
    Part of the 5 Inch Reservoir Assembly
    COVER, End
    Part of the 5 Inch Reservoir Assembly
  • -
    10-95689 SCREW, End Cover
    Part of the 5 Inch Reservoir Assembly
    SCREW, End Cover
    Part of the 5 Inch Reservoir Assembly
  • -
    12-95690 WASHER
    Part of the 5 Inch Reservoir Assembly
    WASHER
    Part of the 5 Inch Reservoir Assembly
