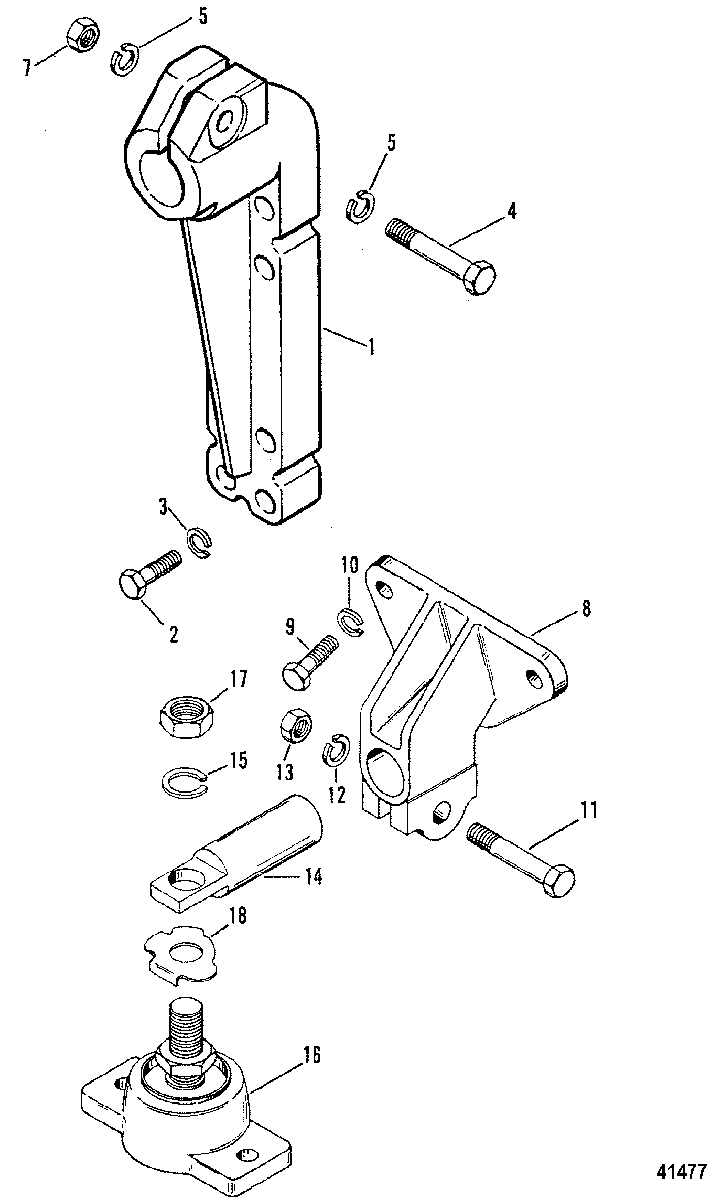

Transmission and Engine Mounting для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    18903T02 BRACKET (REAR)
    BRACKET (REAR)
  • 2
    10-4007745 SCREW
    SCREW
  • 3
    13-38829 LOCKWASHER, (.500)
    LOCKWASHER, (.500)
  • 4
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 8
    66418T BRACKET, Front
    BRACKET, Front
  • 9
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 12
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 13
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 14
    66166A4 TRUNNION
    TRUNNION
  • 15
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 16
    816326A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 17
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 18
    14-66658 TAB WASHER
    TAB WASHER
