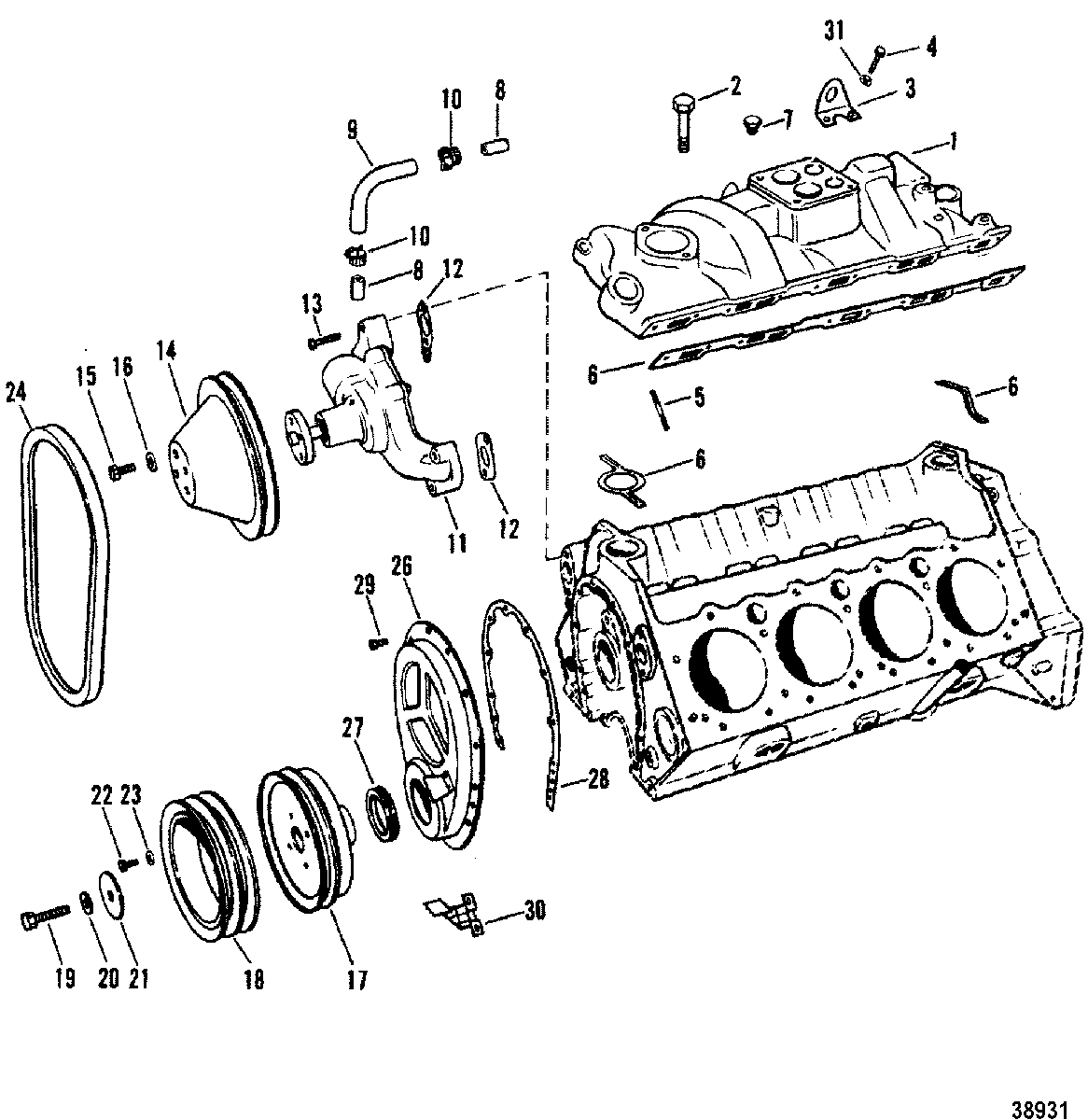

Intake Manifold and Front Cover для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    811575T MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    N.S.S. Not Sold Separate, BOLT (GM #3736035)
    Not Sold Separate, BOLT (GM #3736035)
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 5
    N.S.S. Not Sold Separate, STUD (GM #3959544)
    Not Sold Separate, STUD (GM #3959544)
  • 6
    27-8M0050224 GASKET SET
    GASKET SET
  • 7
    22-75983 PLUG
    PLUG
  • 8
    22-806242 CONNECTOR
    CONNECTOR
  • 9
    32-99520 HOSE
    HOSE
  • 10
    54-815504412 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    46-8M0113735 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 12
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 13
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 14
    42799 PULLEY (5-7/8" DIA.)
    PULLEY (5-7/8" DIA.)
  • 14
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 15
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 16
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 17
    816729 BALANCER (Use 3/8-16 Bolts)
    BALANCER (Use 3/8-16 Bolts)
  • 17
    816729 HARMONIC BALANCER (Use 3/8-24 Bolts)
    HARMONIC BALANCER (Use 3/8-24 Bolts)
  • 18
    90081T PULLEY
    PULLEY
  • 19
    10-14758 BOLT
    BOLT
  • 20
    13-14759 LOCKWASHER
    LOCKWASHER
  • 21
    12-49103 WASHER
    WASHER
  • 22
    10-53734 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 22
    10-75334 SCREW, (.375-24 x 3.00)
    SCREW, (.375-24 x 3.00)
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    57-78200Q1 BELT, (47 Inches) (Use With 5-7/8" DIA. REF. #14)
    BELT, (47 Inches) (Use With 5-7/8" DIA. REF. #14)
  • 24
    57-48122Q BELT, (48 Inches) (Use With 7" DIA. REF. #14)
    BELT, (48 Inches) (Use With 7" DIA. REF. #14)
  • 26
    66215 COVER ASSEMBLY
    COVER ASSEMBLY
  • 27
    26-8219471 SEAL, Oil
    SEAL, Oil
  • 28
    27-54529 GASKET, Timing Cover
    GASKET, Timing Cover
  • 29
    10-8M0040582 SCREW
    SCREW
  • 30
    59966 POINTER
    POINTER
  • 31
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
