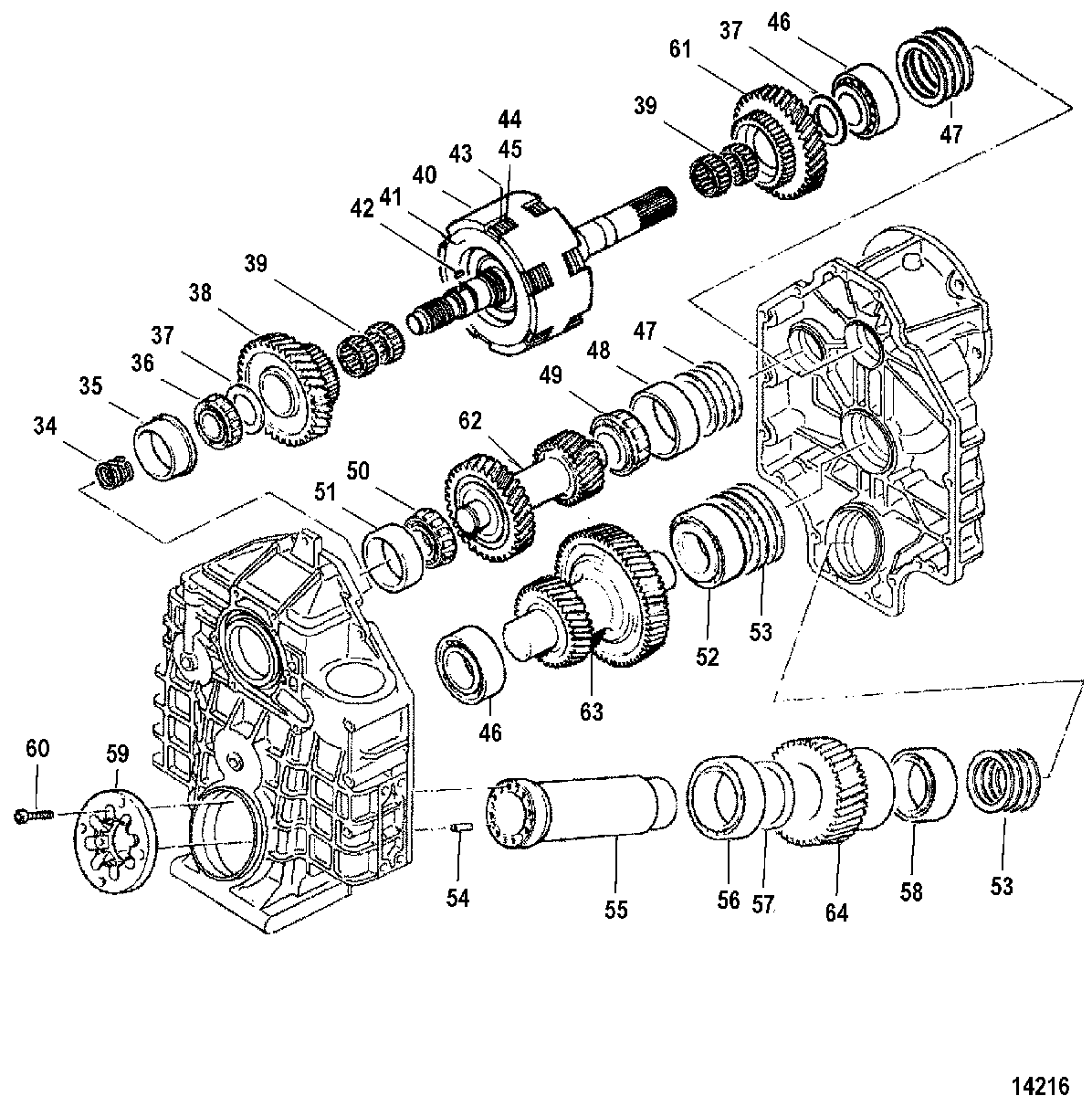

Transmission(V-Drive) 2 of 2 для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • -
    863745T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863745T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863745T4 TRANSMISSION, (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio)
  • 34
    53-813312 RING
    RING
  • 35
    31-811970 BEARING, Tapered Roller Cup
    BEARING, Tapered Roller Cup
  • 36
    31-811969 BEARING, Tapered Roller Cone
    BEARING, Tapered Roller Cone
  • 37
    12-811967 WASHER
    WASHER
  • 38
    43-813308 GEAR
    GEAR
  • 39
    31-813307 BEARING, Roller
    BEARING, Roller
  • 40
    813306 SHAFT, Input
    SHAFT, Input
  • 41
    813322 PRESSURE DISC
    PRESSURE DISC
  • 42
    28-813313 KEY
    KEY
  • 43
    53-813321 RING
    RING
  • 44
    813319 DISC
    DISC
  • 45
    813320 DISC
    DISC
  • 46
    30-811968 BEARING, Ball
    BEARING, Ball
  • 47
    15-813315 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 47
    15-813316 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 47
    15-813317 SHIM, (.20 mm)
    SHIM, (.20 mm)
  • 47
    15-813318 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 48
    31-811979 BEARING, Tapered Roller Cup
    BEARING, Tapered Roller Cup
  • 49
    15-811976 SHIM
    SHIM
  • 50
    31-811971 BEARING, Tapered Roller Cone
    BEARING, Tapered Roller Cone
  • 51
    31-811977 BEARING, Tapered Roller Cup
    BEARING, Tapered Roller Cup
  • 52
    31-811972 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 53
    15-811973 SHIM (.10MM)
    SHIM (.10MM)
  • 53
    15-811974 SHIM (.15MM)
    SHIM (.15MM)
  • 53
    15-811975 SHIM (.30MM)
    SHIM (.30MM)
  • 53
    15-811976 SHIM (.50MM)
    SHIM (.50MM)
  • 54
    17-811984 PIN, Dowel
    PIN, Dowel
  • 55
    811980 SHAFT, Output
    SHAFT, Output
  • 56
    31-811985 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 57
    12-811981 WASHER
    WASHER
  • 58
    31-811986 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 59
    811982 FLANGE
    FLANGE
  • 60
    10-811983 SCREW
    SCREW
  • 61
    43-811987 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 62
    811951 SHAFT, Reversing
    1.5:1 RATIO
    SHAFT, Reversing
    1.5:1 RATIO
  • 63
    811952 SHAFT, Intermediate
    1.5:1 RATIO
    SHAFT, Intermediate
    1.5:1 RATIO
  • 64
    43-811950 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 61
    43-811949 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 62
    811947 SHAFT, Reversing
    2.0:1 RATIO
    SHAFT, Reversing
    2.0:1 RATIO
  • 63
    811948 SHAFT, Intermediate
    2.0:1 RATIO
    SHAFT, Intermediate
    2.0:1 RATIO
  • 64
    43-811950 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 61
    43-811949 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
  • 62
    811947 SHAFT, Reversing
    2.5:1 RATIO
    SHAFT, Reversing
    2.5:1 RATIO
  • 63
    811946 SHAFT, Intermediate
    2.5:1 RATIO
    SHAFT, Intermediate
    2.5:1 RATIO
  • 64
    43-811945 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
