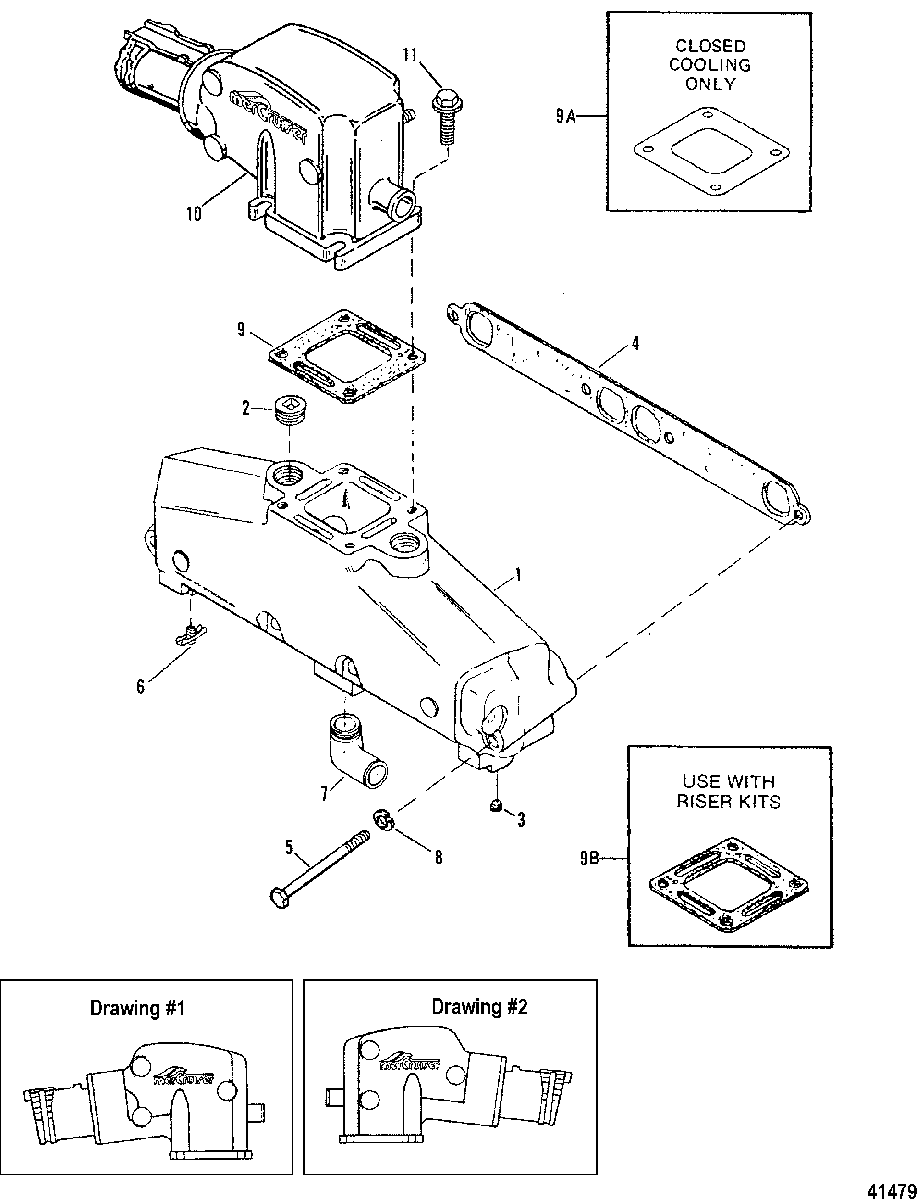

Exhaust Manifold and Exhaust Elbow(Stainless Steel) для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 4
    27-46820 GASKET
    GASKET
  • 5
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 5
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 6
    22-16951Q1 COCK ASSEMBLY
    COCK ASSEMBLY
  • 7
    22-36305T ELBOW, (90 Degrees)
    ELBOW, (90 Degrees)
  • 7
    22-866725 FITTING, Straight
    FITTING, Straight
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    27-863724 GASKET (Standard Cooling)
    GASKET (Standard Cooling)
  • 9A
    27-8637251 GASKET (Closed Cooling)
    GASKET (Closed Cooling)
  • 9B
    27-863726 GASKET (Use With Riser Kits)
    GASKET (Use With Riser Kits)
  • 10
    816900A5 ELBOW ASSEMBLY, Exhaust (SEE NOTE 1) (Reference Drawing #1)
    ELBOW ASSEMBLY, Exhaust (SEE NOTE 1) (Reference Drawing #1)
  • 10
    816900A7 ELBOW ASSEMBLY, Exhaust (SEE NOTE 1) (Reference Drawing #2)
    ELBOW ASSEMBLY, Exhaust (SEE NOTE 1) (Reference Drawing #2)
  • 11
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 11
    10-668631 SCREW, (3/8-16 x 2.50)
    SCREW, (3/8-16 x 2.50)
  • -
    93320A14 RISER KIT, Exhaust (3.00 Inch)
    Each Kit
    RISER KIT, Exhaust (3.00 Inch)
    Each Kit
  • -
    807477A5 RISER KIT, Exhaust (6.00 Inch)
    Contains 2 Risers
    RISER KIT, Exhaust (6.00 Inch)
    Contains 2 Risers
