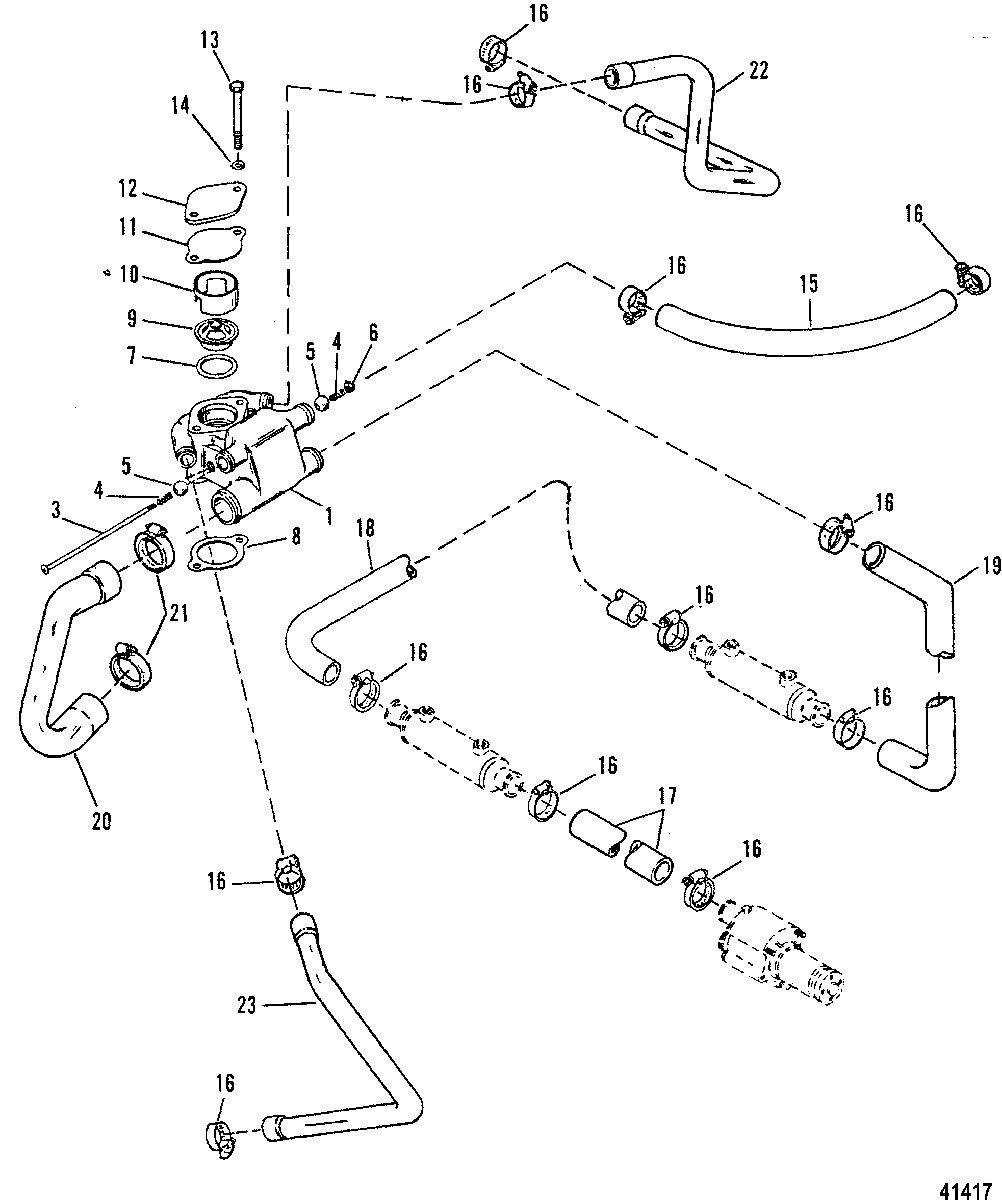

Thermostat Housing(Standard Cooling) для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493

  • №
    Артикул
    Название
  • 1
    16413A3 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 3
    10-17989 SCREW, (#10-32 x 8.600)
    SCREW, (#10-32 x 8.600)
  • 4
    24-75533 SPRING
    SPRING
  • 5
    30-98475 BALL, Nylon
    BALL, Nylon
  • 6
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 7
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER KIT
    COVER KIT
  • 13
    10-60410 SCREW, (.375-16 x 4.250)
    SCREW, (.375-16 x 4.250)
  • 14
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 15
    32-8M0062614 HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)
    (Use With Cast Iron Exhaust Elbow)
    HOSE, (48.00 Inches Bulk) (Cut to 19 Inches)
    (Use With Cast Iron Exhaust Elbow)
  • 15
    32-73795 HOSE (V-Drive)
    (Use With Cast Iron Exhaust Elbow)
    HOSE (V-Drive)
    (Use With Cast Iron Exhaust Elbow)
  • 15
    32-8M0062614 HOSE, (48.00 Inches Bulk) (Starboard)
    (Use With Stainless Steel Exhaust Elbow)
    HOSE, (48.00 Inches Bulk) (Starboard)
    (Use With Stainless Steel Exhaust Elbow)
  • 15
    32-817433 HOSE, Molded (Port)
    (Use With Stainless Steel Exhaust Elbow)
    HOSE, Molded (Port)
    (Use With Stainless Steel Exhaust Elbow)
  • 15
    32-817434 HOSE (V-Drive)
    (Use With Stainless Steel Exhaust Elbow)
    HOSE (V-Drive)
    (Use With Stainless Steel Exhaust Elbow)
  • 16
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    32-190801 HOSE, Water Pump to Oil Cooler
    Direct Drive
    HOSE, Water Pump to Oil Cooler
    Direct Drive
  • 17
    32-814750 HOSE, Water Pump to Oil Cooler
    V-Drive
    HOSE, Water Pump to Oil Cooler
    V-Drive
  • 18
    32-19081 HOSE, Oil Cooler to Oil Cooler
    Direct Drive
    HOSE, Oil Cooler to Oil Cooler
    Direct Drive
  • 18
    32-814749 HOSE, Oil Cooler to Oil Cooler
    V-Drive
    HOSE, Oil Cooler to Oil Cooler
    V-Drive
  • 19
    32-896999 HOSE, Oil Cooler to Thermostat Housing
    HOSE, Oil Cooler to Thermostat Housing
  • 20
    32-897181 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    32-973852 HOSE, Cover to Exhaust Manifold
    (Port)
    HOSE, Cover to Exhaust Manifold
    (Port)
  • 23
    32-897301 HOSE, Cover to Exhaust Manifold
    (Starboard)
    HOSE, Cover to Exhaust Manifold
    (Starboard)
  • -
    44446A6 CLOSED COOLING SYSTEM (Rear Mounted)
    CLOSED COOLING SYSTEM (Rear Mounted)
  • -
    44443A3 INSTALLATION KIT
    (Cast Iron Exhaust Elbows)
    INSTALLATION KIT
    (Cast Iron Exhaust Elbows)
  • -
    44443A3 INSTALLATION KIT
    (Stainless Steel Exhaust Elbows)
    INSTALLATION KIT
    (Stainless Steel Exhaust Elbows)
