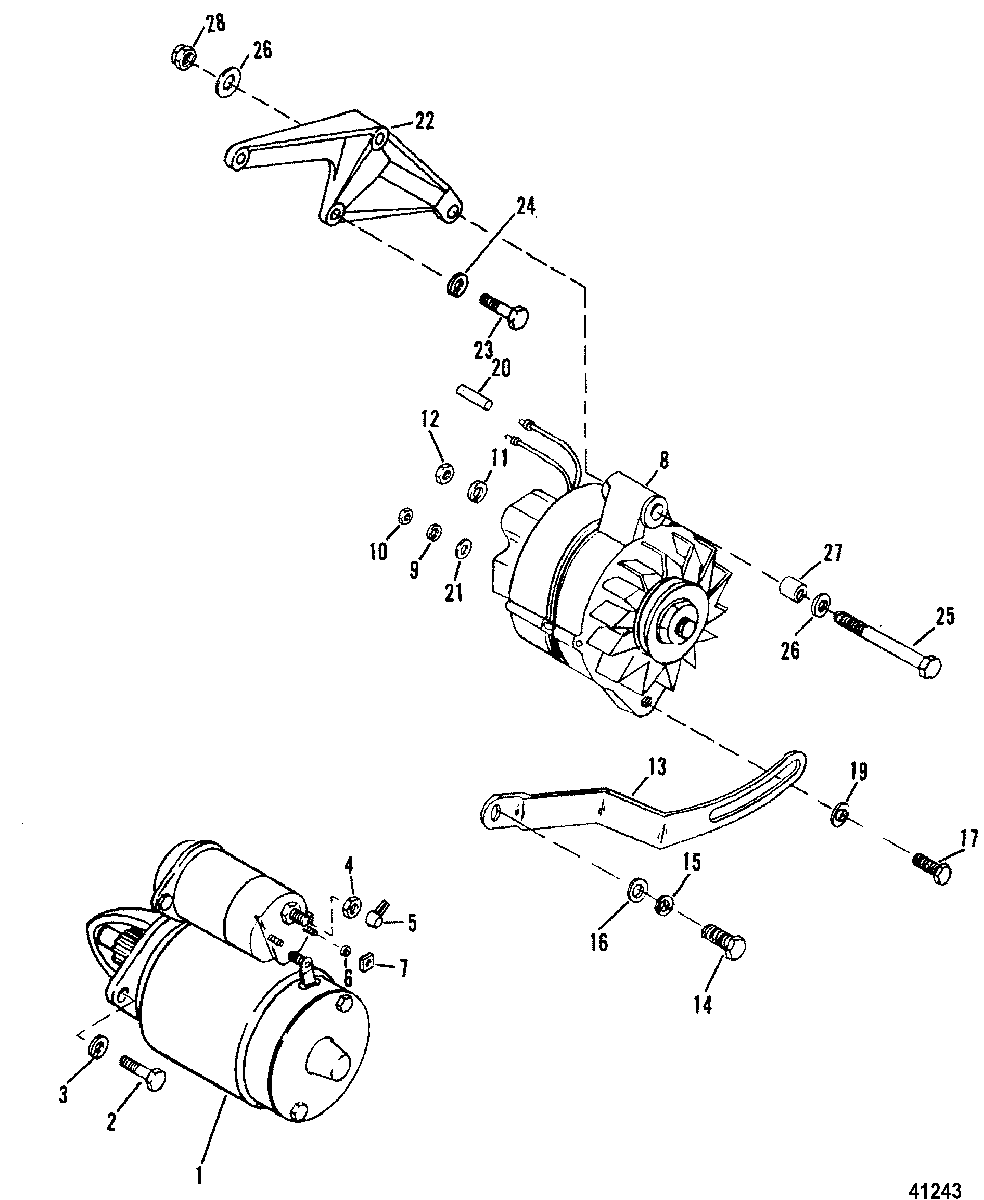

Starter and Alternator для Mercruiser - 7.4L MIE W/HURTH GM 454 V-8 1989-1992 0C391564 THRU 0D715493
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
411-15874 NUT, (M10)NUT, (M10)
-
585-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
711-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
8817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)ALTERNATOR ASSEMBLY, (55 Ampere)
-
913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1011-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1113-21272 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1385013T BRACEBRACE
-
1410-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
1513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1612-31263 WASHERWASHER
-
1710-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
1912-26168 WASHERWASHER
-
205790811 SLEEVE, (10.00 Inches Bulk)SLEEVE, (10.00 Inches Bulk)
-
2112-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
2247487T BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2310-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2310-35787 SCREW, (.375-16 x 2.250)SCREW, (.375-16 x 2.250)
-
2413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2510-48308 SCREW, (.375-24 x 3.750)SCREW, (.375-24 x 3.750)
-
2612-20553 WASHERWASHER
-
2723-33186 BUSHINGBUSHING
-
2811-23161 NUT, (.375-24)NUT, (.375-24)
