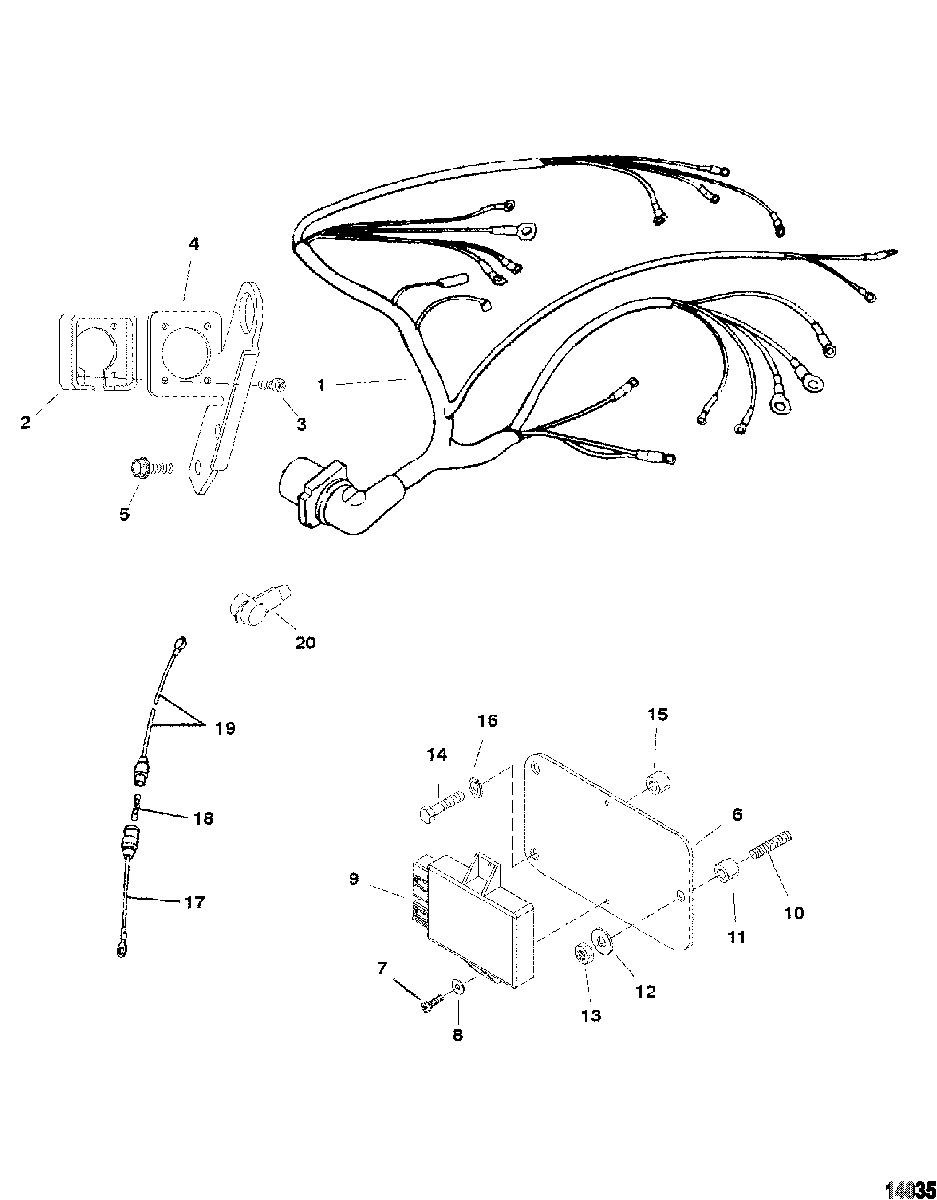

Wiring Harness And Electrical Components для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    84-861235A5 HARNESS ASSEMBLY, Wiring
    (4.3L Alpha) SN# 0L618999 & Below
    HARNESS ASSEMBLY, Wiring
    (4.3L Alpha) SN# 0L618999 & Below
  • 1
    84-861235A6 HARNESS ASSEMBLY, Wiring
    (4.3LH Alpha And 4.3L/LH Bravo) SN# 0L618999 & Below
    HARNESS ASSEMBLY, Wiring
    (4.3LH Alpha And 4.3L/LH Bravo) SN# 0L618999 & Below
  • 1
    84-862163T03 HARNESS ASSEMBLY, Wiring
    SN# 0L619000 THRU 0M330610
    HARNESS ASSEMBLY, Wiring
    SN# 0L619000 THRU 0M330610
  • 1
    84-862163T02 HARNESS ASSEMBLY, Wiring
    SN# 0M330611 & Up
    HARNESS ASSEMBLY, Wiring
    SN# 0M330611 & Up
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    865480T BRACKET, Harness Mounting/Lifting Eye
    BRACKET, Harness Mounting/Lifting Eye
  • 5
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 6
    861516 BRACKET
    BRACKET
  • 7
    10-861520 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 8
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 9
    861251T1 ICM MODULE, Ignition Control Module
    (Alpha)
    ICM MODULE, Ignition Control Module
    (Alpha)
  • 9
    861252T1 ICM MODULE, Ignition Control Module
    (Bravo)
    ICM MODULE, Ignition Control Module
    (Bravo)
  • 10
    10-24323 SET SCREW, (.250-20 x 1.25)
    (Two Piece Exhaust Manifold)
    SET SCREW, (.250-20 x 1.25)
    (Two Piece Exhaust Manifold)
  • 11
    23-806981 SPACER
    (Two Piece Exhaust Manifold)
    SPACER
    (Two Piece Exhaust Manifold)
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    (Two Piece Exhaust Manifold)
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    (Two Piece Exhaust Manifold)
  • 13
    11-64015 NUT, (.250-20)
    (Two Piece Exhaust Manifold)
    NUT, (.250-20)
    (Two Piece Exhaust Manifold)
  • 14
    10-98253 SCREW, (.250-20 x .500)
    (OnePiece Exhaust Manifold)
    SCREW, (.250-20 x .500)
    (OnePiece Exhaust Manifold)
  • 14
    10-76630 SCREW, (.250-20 x 1.00)
    (OnePiece Exhaust Manifold)
    SCREW, (.250-20 x 1.00)
    (OnePiece Exhaust Manifold)
  • 15
    23-91034 SPACER, (.380 x 1.00 x .530)
    (OnePiece Exhaust Manifold)
    SPACER, (.380 x 1.00 x .530)
    (OnePiece Exhaust Manifold)
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (OnePiece Exhaust Manifold)
    LOCKWASHER, (.250) Stainless Steel
    (OnePiece Exhaust Manifold)
  • 17
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo Engines)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo Engines)
  • 18
    88-79091 FUSE, 20 Ampere
    (Bravo Engines)
    FUSE, 20 Ampere
    (Bravo Engines)
  • 19
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo Engines)
    CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo Engines)
  • 20
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
