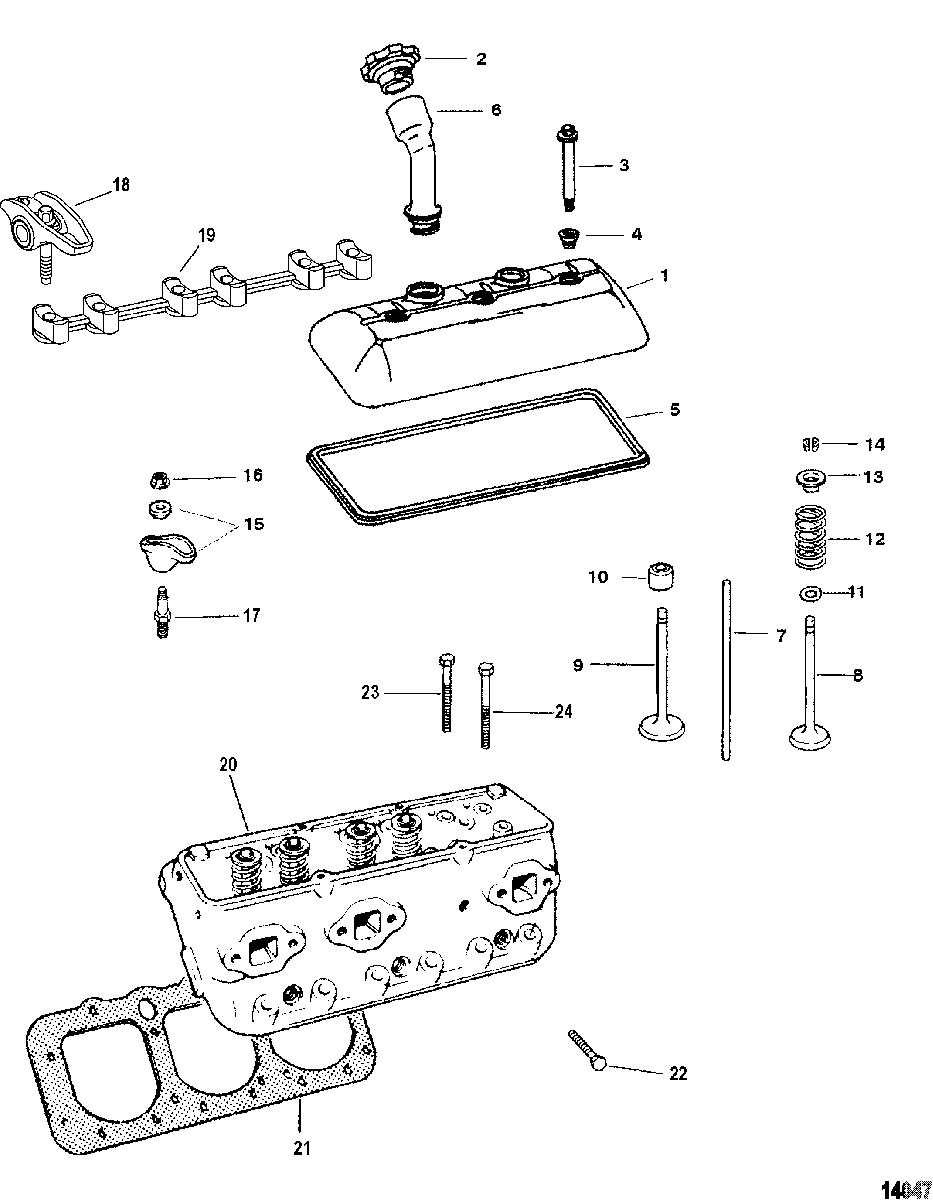

Cylinder Head And Rocker Cover для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

№

Артикул

Название
1

827149 COVER, Rocker
(Starboard)

COVER, Rocker
(Starboard)
1

827150 COVER, Rocker
(Port)

COVER, Rocker
(Port)
2

36-827151 CAP, Oil Fill

CAP, Oil Fill
3

10-827153 SCREW

SCREW
4

25-827155 O-RING

O-RING
5

27-827154 GASKET, Rocker Cover

GASKET, Rocker Cover
6

806754T TUBE, Oil Fill

TUBE, Oil Fill
7

173391 PUSH ROD

PUSH ROD
8

8243171 VALVE

VALVE
8

8243181 VALVE

VALVE
9

809992 VALVE

VALVE
10

26-8M0050563 SEAL

SEAL
11

26-34217 SEAL, O-Ring

SEAL, O-Ring
12

24-483471 SPRING

SPRING
13

483481 CAP

CAP
14

28-547971 KEY

KEY
15

824335T ROCKER ARM AND BALL KIT
(Use With Non-Roller Rocker Cylinder Head)

ROCKER ARM AND BALL KIT
(Use With Non-Roller Rocker Cylinder Head)
16

11-801883 NUT
(Use With Non-Roller Rocker Cylinder Head)

NUT
(Use With Non-Roller Rocker Cylinder Head)
17

16-8018821 STUD
(Use With Non-Roller Rocker Cylinder Head)

STUD
(Use With Non-Roller Rocker Cylinder Head)
18

883164001 ROCKER ARM ASSEMBLY, Roller

ROCKER ARM ASSEMBLY, Roller
19

883165 SUPPORT, Rocker Arm, Roller

SUPPORT, Rocker Arm, Roller
20

938-827178R1 CYLINDER HEAD ASSEMBLY
(Non-Roller Rocker Cylinder Head)

CYLINDER HEAD ASSEMBLY
(Non-Roller Rocker Cylinder Head)
20

938-8M0115136 CYLINDER HEAD
(Roller Rocker Cylinder Head)

CYLINDER HEAD
(Roller Rocker Cylinder Head)
21

27-879150140 GASKET

GASKET
22

10-11968 SCREW, (.437-14 x 1.750)

SCREW, (.437-14 x 1.750)
23

10-119671 SCREW, (.437-14 x 3.00)

SCREW, (.437-14 x 3.00)
24

10-11966 SCREW, (.437-14 x 3.750)

SCREW, (.437-14 x 3.750)
-

27-824326A02 GASKET SET, Overhaul

GASKET SET, Overhaul
