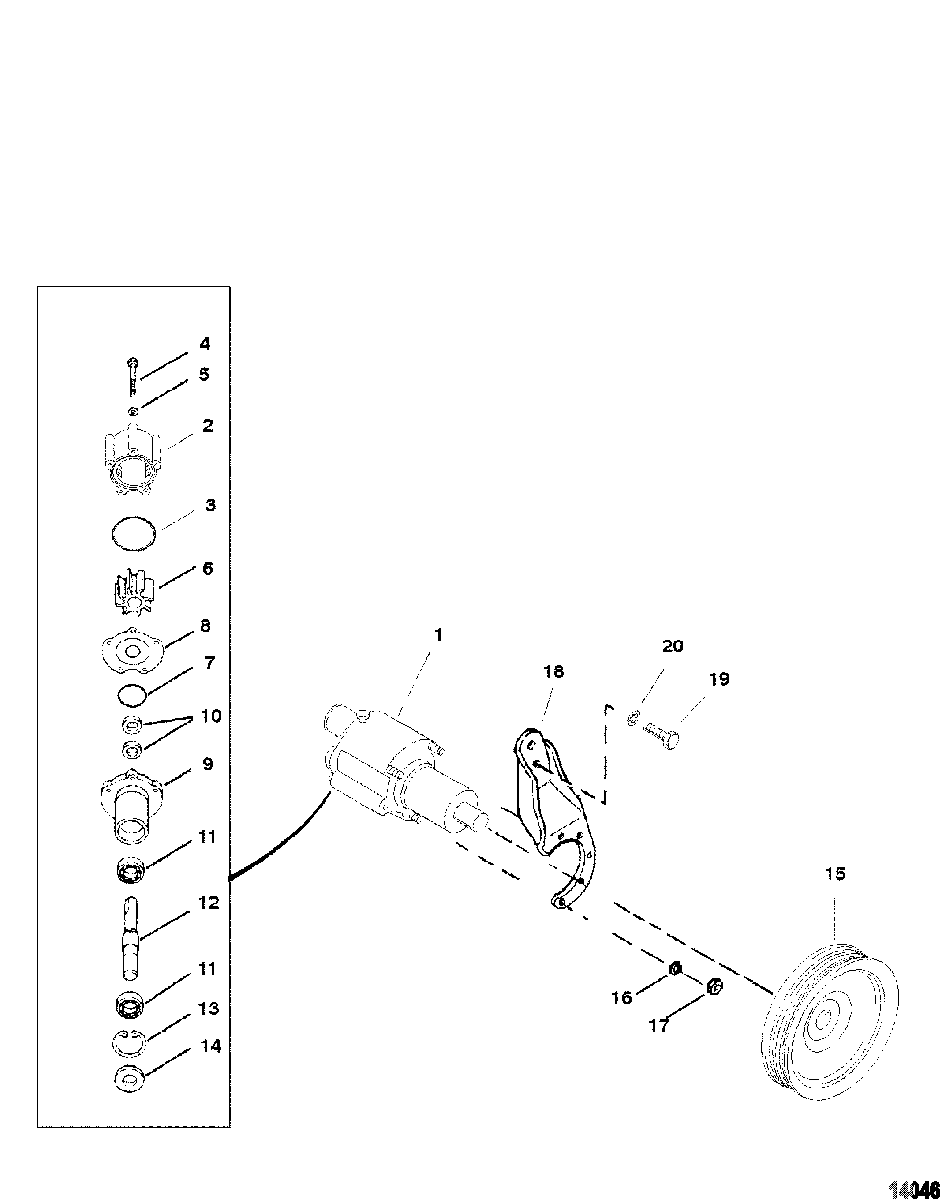

Sea Water Pump Assembly(Use With Bravo Engines) для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    46-807151A9 PUMP ASSEMBLY, Sea Water
    PUMP ASSEMBLY, Sea Water
  • 2
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 3
    25-33465 O-RING
    O-RING
  • 4
    10-807356 SCREW, (.312-18 x 2.680)
    SCREW, (.312-18 x 2.680)
  • 4
    10-74191 SCREW, (.312-18 x 3.250)
    SCREW, (.312-18 x 3.250)
  • 5
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 6
    47-59362T1 IMPELLER
    IMPELLER
  • 7
    25-94288 QUAD RING
    QUAD RING
  • 8
    94576 WEAR PLATE, Inner
    WEAR PLATE, Inner
  • 9
    46-94913A5 HOUSING ASSEMBLY, Pump
    HOUSING ASSEMBLY, Pump
  • 10
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 11
    30-72961 BEARING, Ball
    BEARING, Ball
  • 12
    59501A1 SHAFT
    SHAFT
  • 13
    53-23720 RING, Retaining
    RING, Retaining
  • 14
    26-72785 SEAL
    SEAL
  • 15
    861579 PULLEY
    PULLEY
  • 16
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 17
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 18
    8077491 BRACKET
    BRACKET
  • 19
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 20
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
