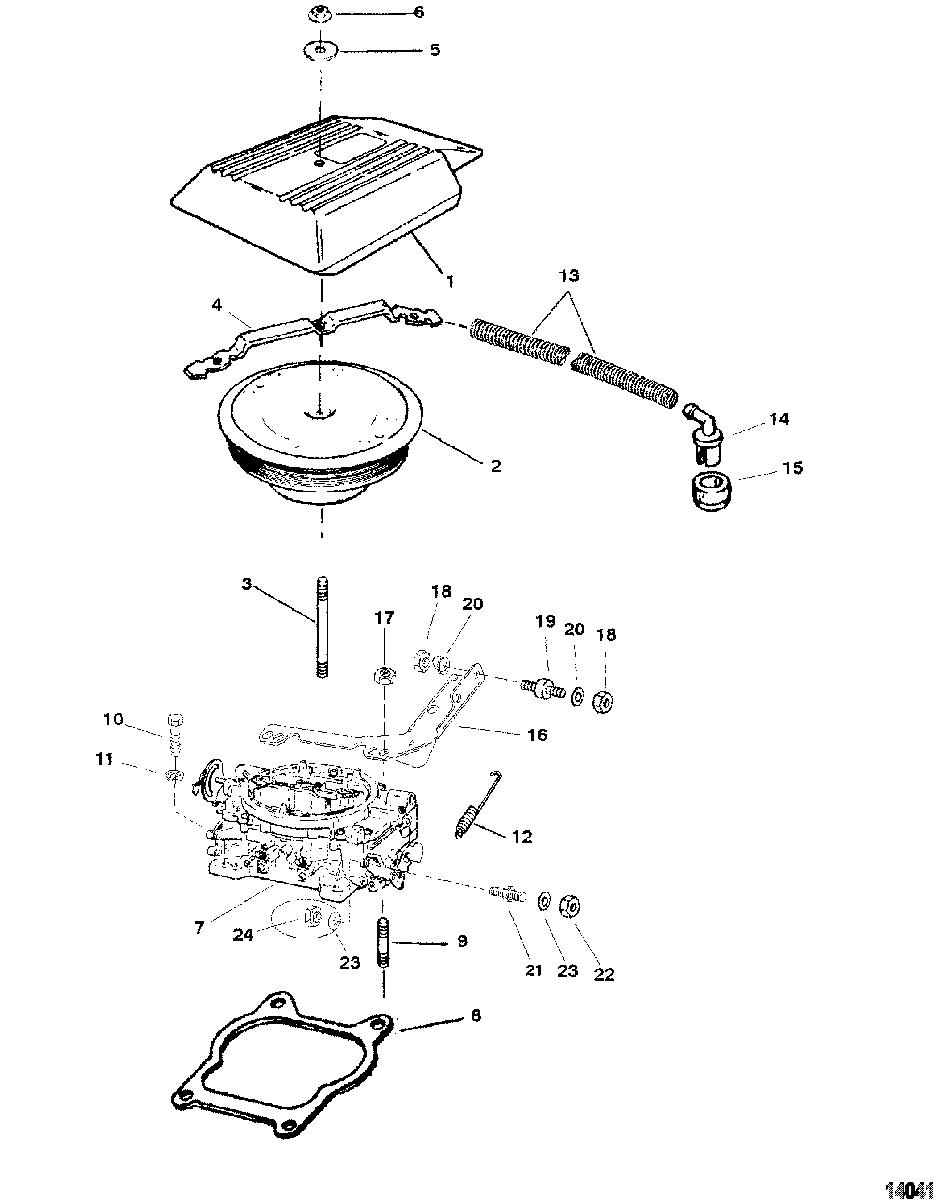

Carburetor And Throttle Linkage(Four Barrel) для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 3
    16-805296 STUD, (4.50 Inch)
    STUD, (4.50 Inch)
  • 4
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 5
    12-86400 WASHER
    WASHER
  • 6
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 7
    3310-807826R02 CARBURETOR ASSEMBLY
    (See "Carburetor (Weber)" For Breakdown)
    CARBURETOR ASSEMBLY
    (See "Carburetor (Weber)" For Breakdown)
  • 7
    3310-860076A1 CARBURETOR ASSEMBLY
    Swiss Emissions (BSO1 And SAV1) (Breakdown Not Availbable At Time of Printing)
    CARBURETOR ASSEMBLY
    Swiss Emissions (BSO1 And SAV1) (Breakdown Not Availbable At Time of Printing)
  • 8
    27-524572 GASKET
    GASKET
  • 9
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 10
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 11
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 12
    24-897454 SPRING
    SPRING
  • 13
    32-8M0086022 HOSE, (16.50 Inches Bulk)
    HOSE, (16.50 Inches Bulk)
  • 14
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 15
    25-827152 GROMMET
    GROMMET
  • 16
    805359T BRACKET
    BRACKET
  • 17
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 19
    16-818192 STUD
    STUD
  • 20
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 21
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 22
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 24
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
