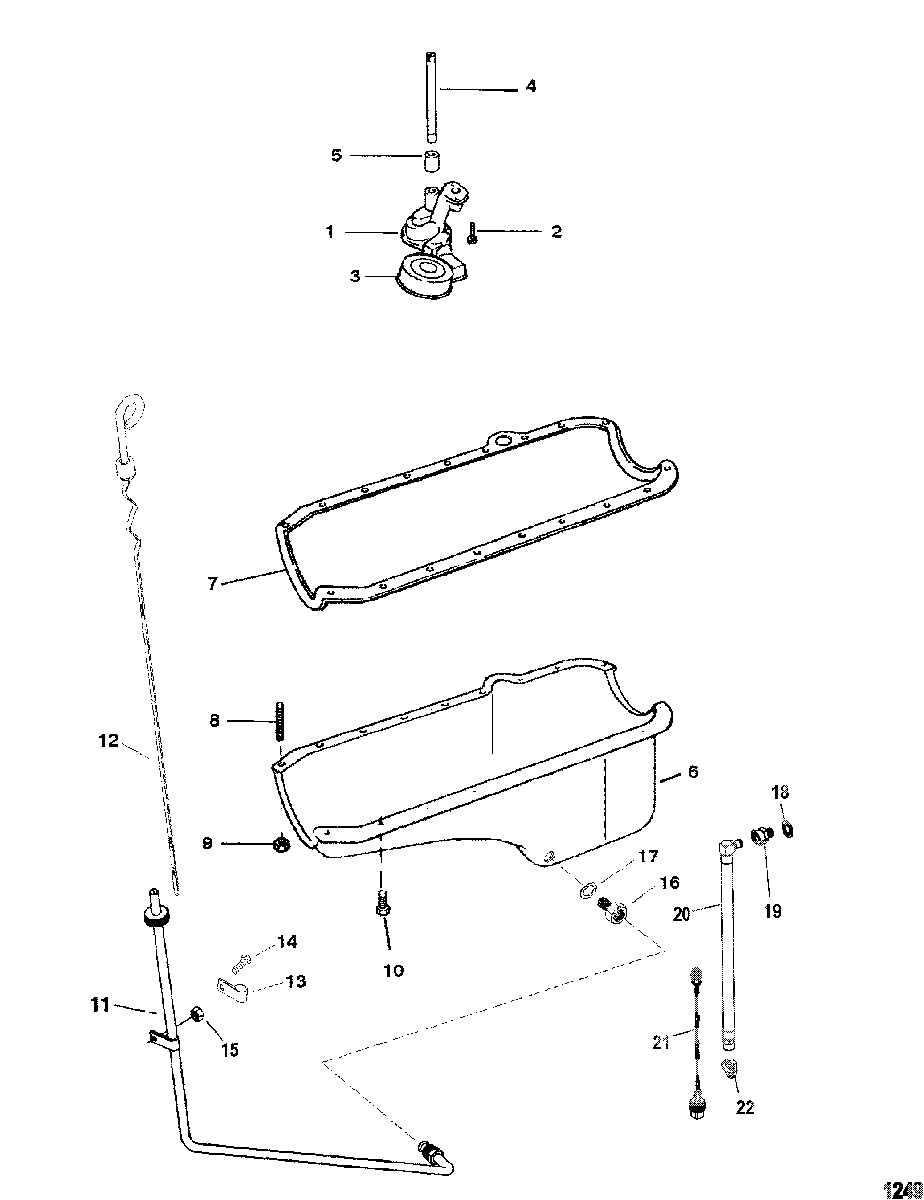

Oil Pan And Oil Pump для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    10-17346 SCREW
    SCREW
  • 3
    8099081 SCREEN
    SCREEN
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    809980T1 PAN, Oil, Aluminum
    (GM Block Code 8LK, 8LJ)
    PAN, Oil, Aluminum
    (GM Block Code 8LK, 8LJ)
  • 6
    804912T01 PAN, Oil, Aluminum
    (GM Block Code 9LK, 9LJ, 0LK, 0LJ)
    PAN, Oil, Aluminum
    (GM Block Code 9LK, 9LJ, 0LK, 0LJ)
  • 7
    27-14247T1 GASKET SET
    GASKET SET
  • 8
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 9
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 10
    10-726071 SCREW, (5/16-18x x .875)
    SCREW, (5/16-18x x .875)
  • 11
    860209A1 TUBE, Dipstick
    SN# 0L680014 & Below
    TUBE, Dipstick
    SN# 0L680014 & Below
  • 11
    864577A1 TUBE, Dipstick
    SN# 0L680015 & Up
    TUBE, Dipstick
    SN# 0L680015 & Up
  • 12
    861942T6 GAUGE, Oil Level
    GAUGE, Oil Level
  • 13
    54-805625 CLIP, Dipstick Tube
    CLIP, Dipstick Tube
  • 14
    10-8M0040582 SCREW, (.250-20 x .563)
    SCREW, (.250-20 x .563)
  • 14
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 15
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 16
    22-807804 FITTING
    FITTING
  • 17
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 18
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 19
    22-862812T01 FITTING, Banjo Assembly
    FITTING, Banjo Assembly
  • 20
    32-805505A4 HOSE, Oil Drain
    HOSE, Oil Drain
  • 21
    862827 TETHER ASSEMBLY
    TETHER ASSEMBLY
  • 22
    54-805524 CLIP
    CLIP
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
