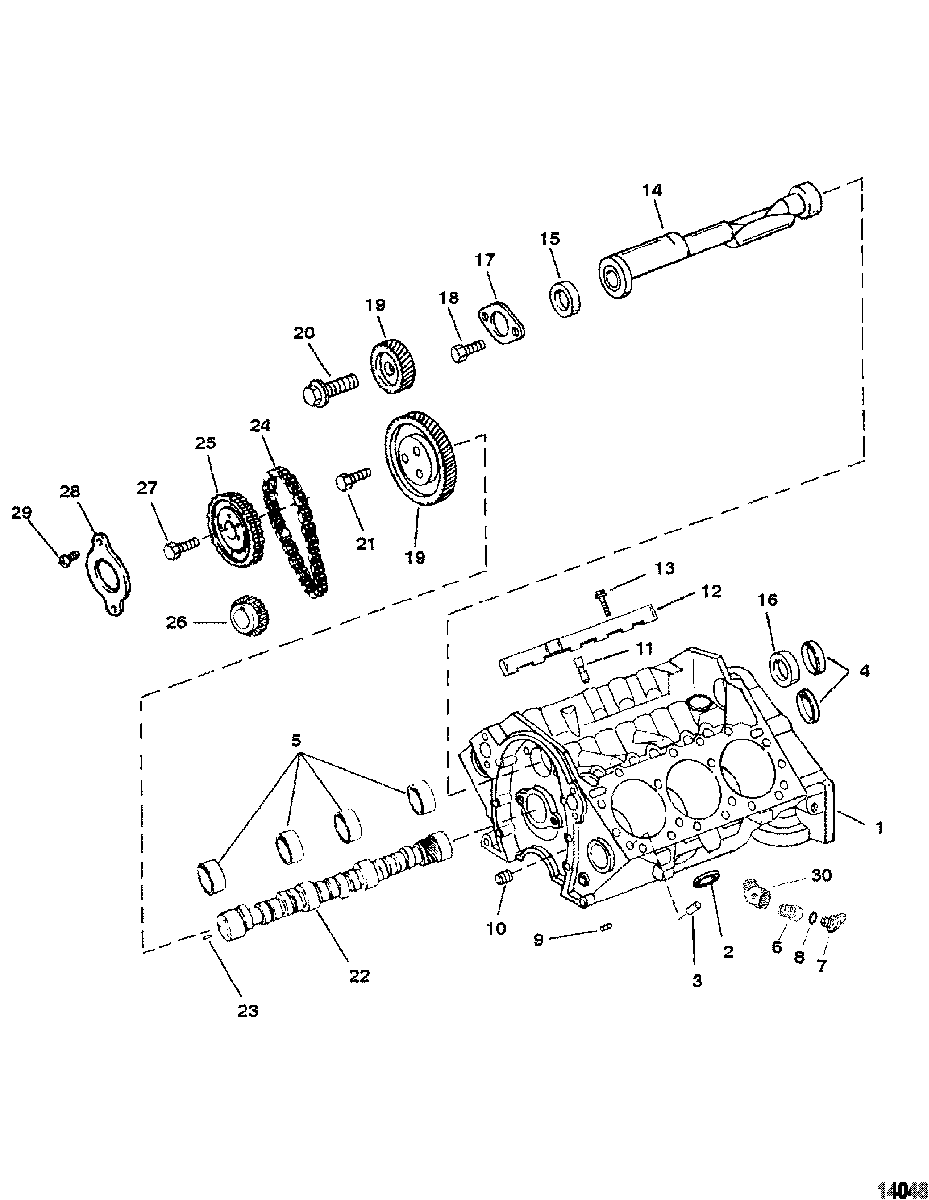

Cylinder Block And Camshaft для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 862756A1 (2 BBL.) Or 862757A1 (4 BBL.)
    NOT SOLD SEPARATE, Cylinder Block
    (Order Long Block 862756A1 (2 BBL.) Or 862757A1 (4 BBL.)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312), Dowel
    PIN, Dowel (.312), Dowel
  • 4
    22-72640 PLUG
    PLUG
  • 5
    23-802999 BEARING SET
    BEARING SET
  • 6
    22-860088 BUSHING
    BUSHING
  • 7
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 8
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 9
    22-42796 VALVE, Oil Filter Bypass
    VALVE, Oil Filter Bypass
  • 9
    22-878050 VALVE
    (GM Block Code 0LK, 0LJ)
    VALVE
    (GM Block Code 0LK, 0LJ)
  • 10
    19-816565 PLUG, Pipe(.468)
    PLUG, Pipe(.468)
  • 11
    8118441 LIFTER, Roller
    LIFTER, Roller
  • 11
    878051 LIFTER, Roller
    (GM Block Code 0LK, 0LJ)
    LIFTER, Roller
    (GM Block Code 0LK, 0LJ)
  • 12
    8243311 RETAINER, Lifter
    RETAINER, Lifter
  • 13
    10-8243321 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 14
    8241481 BALANCED SHAFT
    BALANCED SHAFT
  • 15
    NSS NOT SOLD SEPARATE, Bearing-Ball (Front)
    NOT SOLD SEPARATE, Bearing-Ball (Front)
  • 16
    31-824150 BEARING, Needle, Rear
    BEARING, Needle, Rear
  • 17
    824153 RETAINER, Balance Shaft
    RETAINER, Balance Shaft
  • 18
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 19
    43-8241511 GEAR KIT
    GEAR KIT
  • 20
    10-824152 SCREW
    SCREW
  • 21
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 22
    431-803186 CAMSHAFT
    CAMSHAFT
  • 23
    17-353121 PIN, Dowel
    PIN, Dowel
  • 24
    17161T CHAIN, Timing
    (Use With Arm/Ball Kit - 824335T)
    CHAIN, Timing
    (Use With Arm/Ball Kit - 824335T)
  • 24
    883494 CHAIN KIT, Timing
    (Use With Roller Rocker Arm Assembly- 883164) (Includes 2 sprockets)
    CHAIN KIT, Timing
    (Use With Roller Rocker Arm Assembly- 883164) (Includes 2 sprockets)
  • 25
    883494 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 26
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 27
    10-824329 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 28
    824333 RETAINER, Camshaft
    RETAINER, Camshaft
  • 29
    10-824334 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 30
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • -
    864256A1 MARINE LONG BLOCK ENGINE
    (Two Barrel)
    MARINE LONG BLOCK ENGINE
    (Two Barrel)
  • -
    864256A1 MARINE LONG BLOCK ENGINE
    (Four Barrel)
    MARINE LONG BLOCK ENGINE
    (Four Barrel)
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
