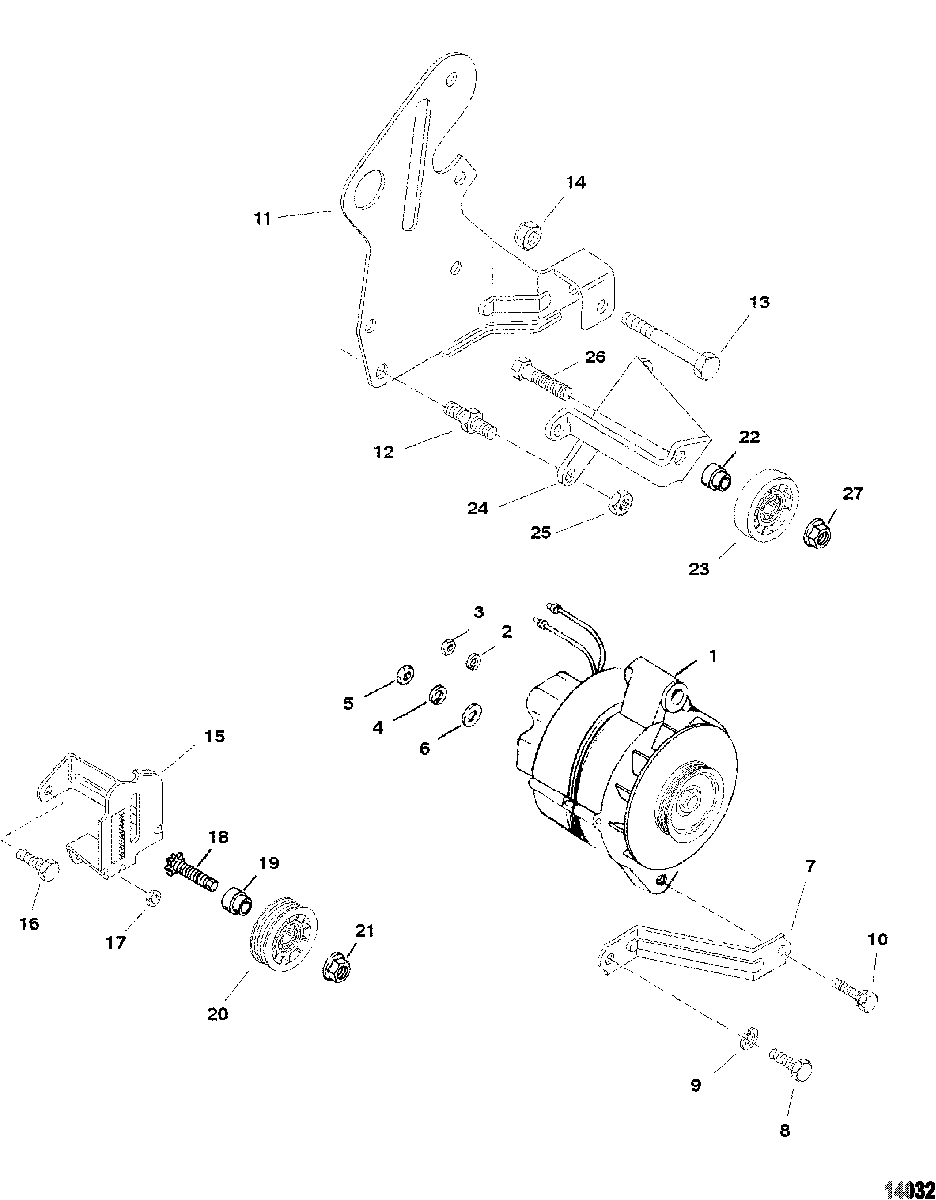

Alternator And Brackets(Mando) для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    807652T ALTERNATOR ASSEMBLY (55 Amp)
    (See "Alternator (Mando)" For Breakdown)
    ALTERNATOR ASSEMBLY (55 Amp)
    (See "Alternator (Mando)" For Breakdown)
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 4
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 5
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 6
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 7
    807750T BRACE
    BRACE
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 11
    860370T BRACKET, Alternator/Power Steering
    BRACKET, Alternator/Power Steering
  • 12
    16-860102 STUD, (.375-16 x 1.730)
    STUD, (.375-16 x 1.730)
  • 13
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 14
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 15
    807767T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 16
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 17
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 19
    865193 BUSHING
    BUSHING
  • 20
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 21
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 22
    865193 BUSHING
    (Closed Cooling/Hydraulic Steering Models)
    BUSHING
    (Closed Cooling/Hydraulic Steering Models)
  • 23
    8M6500024 PULLEY
    (Closed Cooling) Closed Cooling/Hydraulic Steering Models)
    PULLEY
    (Closed Cooling) Closed Cooling/Hydraulic Steering Models)
  • 23
    807757T PULLEY ASSEMBLY, Idler - Black
    (Hydraulic Steering) Closed Cooling/Hydrualic Steering Models)
    PULLEY ASSEMBLY, Idler - Black
    (Hydraulic Steering) Closed Cooling/Hydrualic Steering Models)
  • 24
    807753T1 BRACKET
    (Closed Cooling/Hydrualic Steering Models)
    BRACKET
    (Closed Cooling/Hydrualic Steering Models)
  • 25
    11-32219 NUT, (.375-16)
    (Closed Cooling/Hydraulic Steering Models)
    NUT, (.375-16)
    (Closed Cooling/Hydraulic Steering Models)
  • 26
    10-816601 SCREW, (.437-20 x 1.500)
    (Closed Cooling/Hydraulic Steering Models)
    SCREW, (.437-20 x 1.500)
    (Closed Cooling/Hydraulic Steering Models)
  • 27
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    (Closed Cooling/Hydraulic Steering Models)
    NUT, (.437-20) Brass/Nickel Plated
    (Closed Cooling/Hydraulic Steering Models)
